Current: | 16Amps | Voltage: | 230volts |
---|---|---|---|
Poles: | 3P | Earth Position: | 6h |
Connection Technology: | Screwless - SafeCONTACT | Contact: | Standard |
Highlight: | industrial type socket,low voltage plugs and sockets |

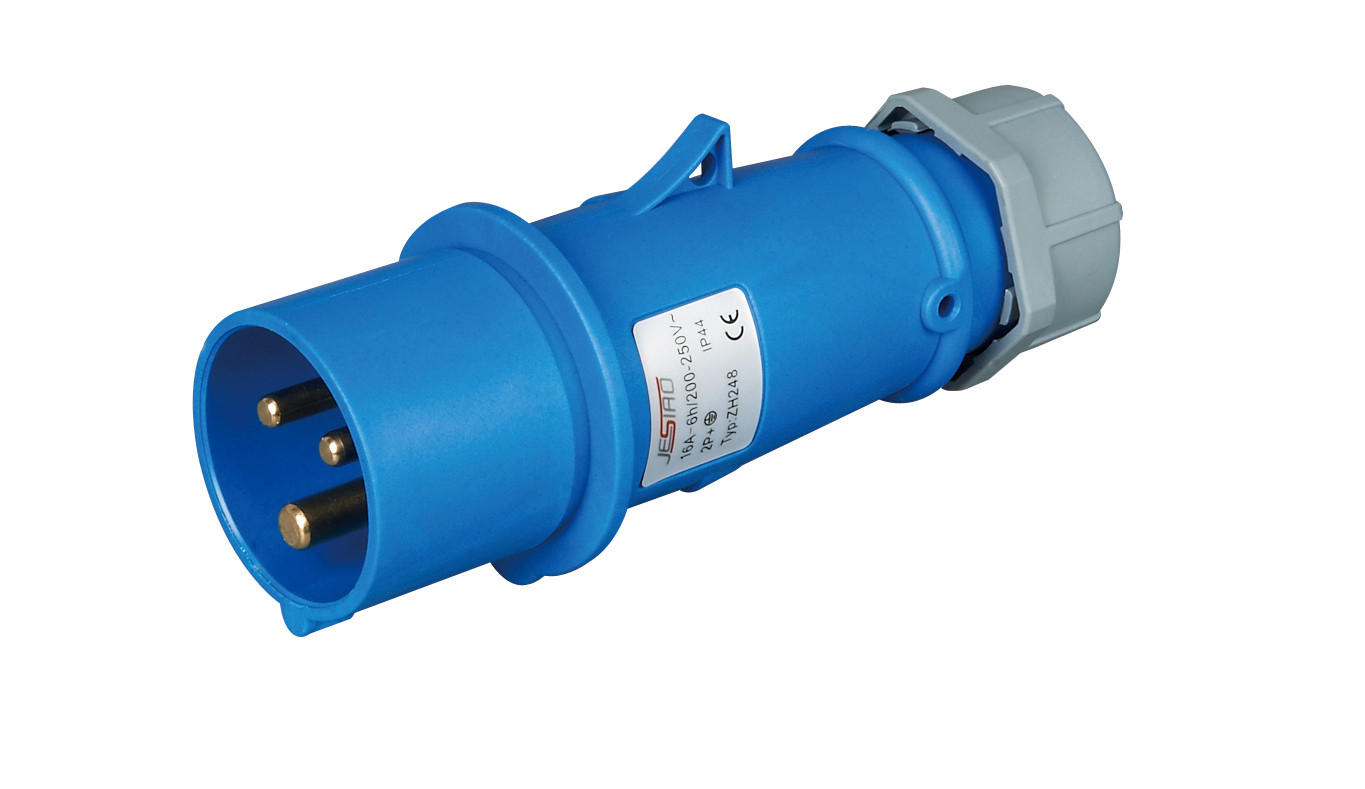

3P16A IP44 Rain Resistant Blue Industrial Plug 3rd Generation Industrial Socket and Plug part no. 248
Features:
Plugs Easy & Safe
IP44 Plugs with adequate functionality and an ergonomic design from 16 to 32A. The new generation of Easy & Safe plugs have a combined gland and cable clamp for easy tightening of the strain relief with the gland nut. The clear terminal markings make the installation easy. Contact parts made of brass for reliable connection. The plastic material PA6 is used to provide excellent electrical characteristics in devices that meet requirements of quality and safety.
Part no. 248
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
16A | 3 | 247 | 248 | 249 | 2168 | 2271 | 10 | 133 | |
4 | 250 | 251 | 252 | 253 | 254 | 255 | 10 | 151 | |
5 | 256 | 257 | 3 | 2014 | 2189 | 2243 | 10 | 179 |
Current | Poles | a | b | c | d | e | f | g | |
16A | 3 | 137 | 110 | 43.5 | 38.5 | 17.5 | 47 | 58 | |
4 | 140 | 116 | 49.5 | 43.8 | 21.5 | 52 | 66.7 | ||
5 | 144 | 121 | 56 | 50 | 26.5 | 60 | 75 | ||
Conductor cross-sectional area (mm²) Min To Max 1.5-2.5 |
