Reliable IP67 Industrial Electrical Sockets And Plugs 3 Pin 230 Volts

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 278
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Ampere: 16 Amps Volt: 230 Volts
Poles: 3P Earth Position: 6h
Protection Degree: IP67 Water Resistant Color: Blue
High Light:

industrial type socket

,

industrial power socket outlet


Product Description

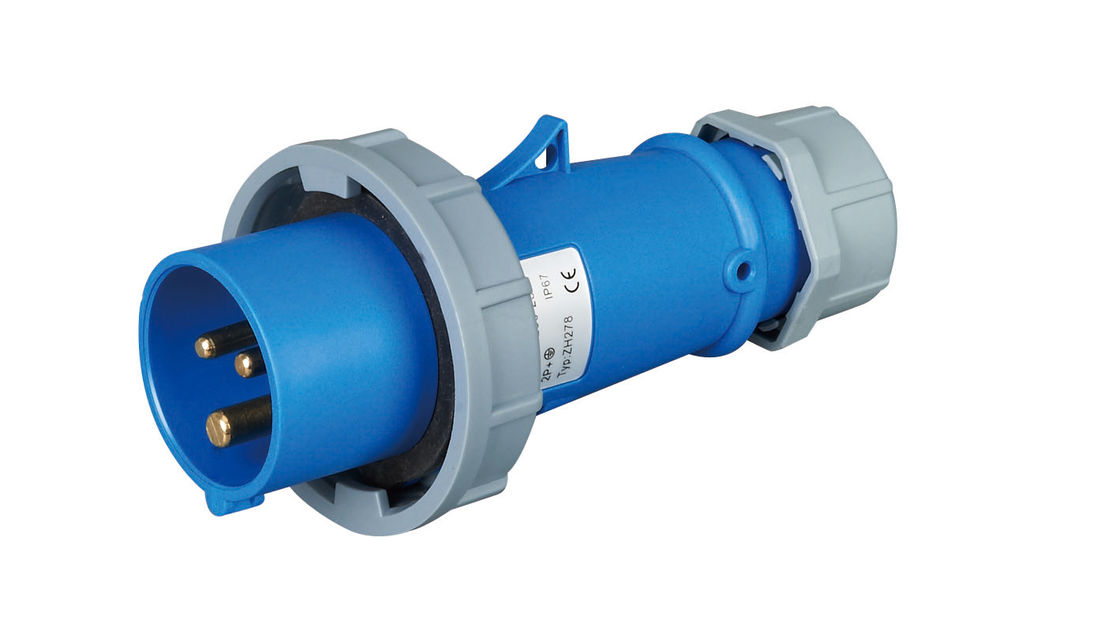

3P16A IP67 Waterproof Industrial Plugs in Blue 3rd Generation Industrial Plugs and Sockets part no. 278



Description:



The range for applications with high demands on safety, durability and performance. Designed for frequent connection and disconnection. The plastic housing (PBT) withstands heavy-duty usage and most chemicals found in industrial environment.



Main benefits:



  • built-in switch disconnector for safety
  • IP44 Splashproof or IP67 Watertight
  • clear terminal marking
  • the switch handle is padlockable


Main features:



  • 16 - 63 A, type MHS and MHSxW
  • PBT enclosure
  • cover and mounting screws made of stainless steel
  • application in heavy and chemical industry, sawmills, airports, hospitals, etc.
  • The outlet is in the front of the product.


Part no. 278



Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
400-440V 500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

4P

3h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
16A 3 277 278 279         10 158
4 280 281 282   283 284 285 10 181
5 286 287 288         10 215



Current Poles a b c d e f g
16A 3 138 115 24.5 70.2 38.3 17.5 47
4 144 120.5 25.2 78 43.8 21.5 52.2
5 144 120.5 25.2 87 50.2 26.5 60
Conductor cross-sectional area (mm²) Min To Max 1.5-2.5
