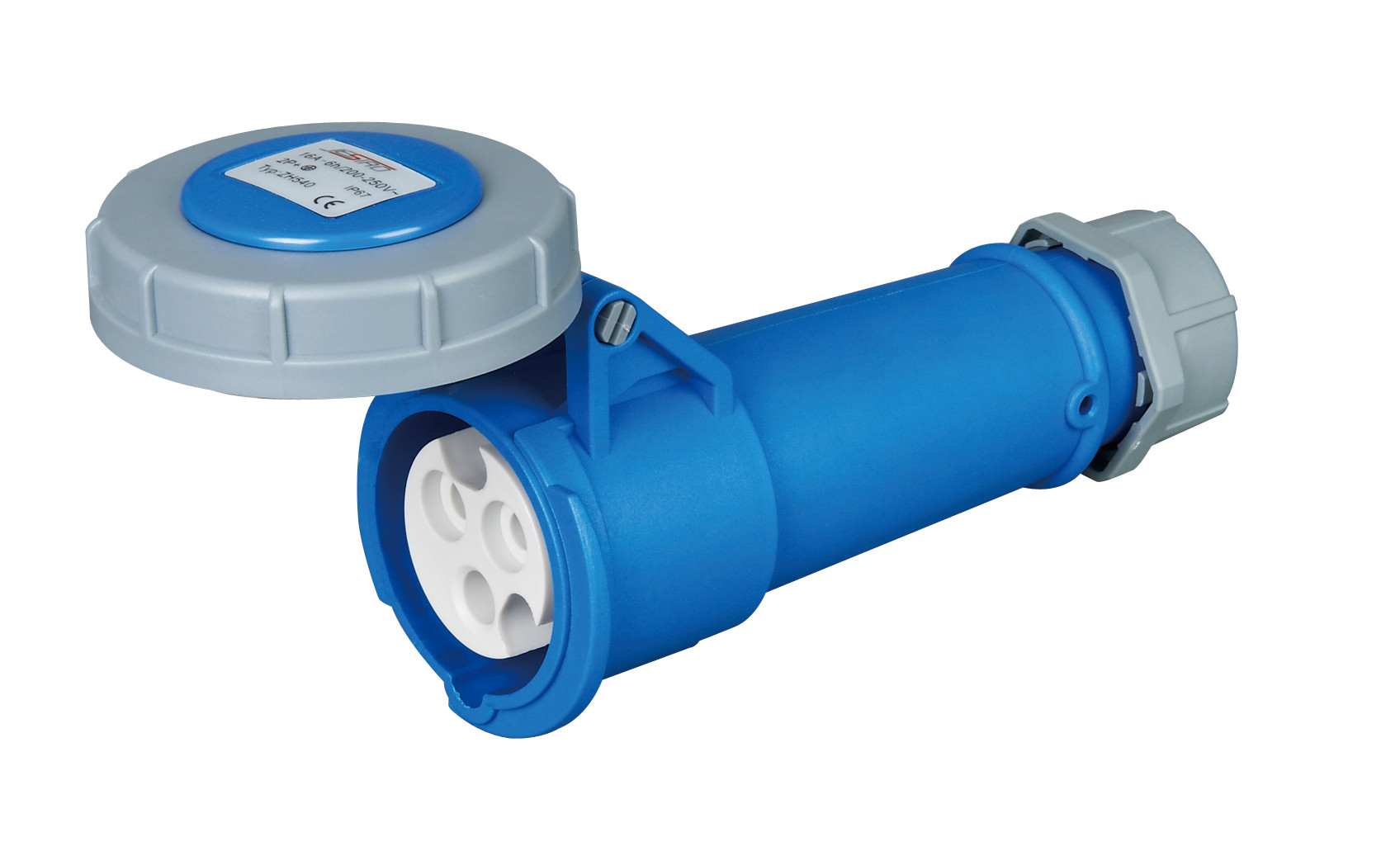

DIN VDE 0623 3P Industrial Socket Outlet With Blue Cover 6h Earth Position

Basic Information

Place of Origin:	China
Brand Name:	HYPER
Certification:	DIN VDE 0623 EN/IEC 60309-2
Model Number:	540

Minimum Order Quantity:	500pcs
Packaging Details:	packed by standard paper carton
Delivery Time:	15 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100,000pcs / month

Get Best Price Contact Now

Detail Information

Description:	Industrial Socket	Current & Voltage:	16A 230V
Poles:	3P	Earth Position:	6h
Protection Degree:	IP67 Water Resistant	Color:	Blue
Highlight:	industrial type socket , low voltage plugs and sockets

Product Description

3P16A IP67 Weather Resistance Receptacles with Blue Cover Third Generation Industrial Socket Outlet part no. 540

Main benefits:

safe and durable
perfect for application with frequent connection / disconnection
housing made of PBT withstands heavy-duty usage and most chemicals found in industrial environments
housing made of aluminium gives excellent protection agains corrosion and sunlight

Main features:

IP67 watertight or IP44 splashproof
16 - 125 A, 50 - 690 VAC
IEC 60 309-2, -4
all external screws are made of stainless steel

Part no. 540

Technique Parameter:

Current	Poles	110V 50a.60Hz	230 V50a.60Hz	400 V50a.60Hz	400-440V	500 V50a.60Hz	>50-500 V100-300Hz	>50-500 Va.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P 6h 9h 9h	3P 4P 5P 9h 6h 6h	4P 3h	3P 4P 5P 7h 7h 7h	3P 4P 5P 10h 10h 10h	3P 4P 5P 2h 2h 2h	PCS/BOX	G/PC
16A	3	539	540	541					10	197
	4	542	543	544		545	546	547	10	223
	5	548	549	550					10	271

Current	Poles	a	b	c	d	e	f	g
16A	3	160	54.7	105.5	49.5	79.7	79.7	34.7
	4	160	54.7	105.5	55.7	85.6	85.6	37
	5	167	56.3	110.9	63	93	93	37
Conductor cross-sectional area (mm²) Min To Max 1.5-2.5
