| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 260 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Plug | Current & Voltage: | 32A 230V |
|---|---|---|---|
| Poles: | 3 P | Earth Position: | 6 H |
| Protection Degree: | IP44 Rainproof | Unit Weight: | 246 G/pc |
| Highlight: | industrial type socket,industrial power socket outlet |
||

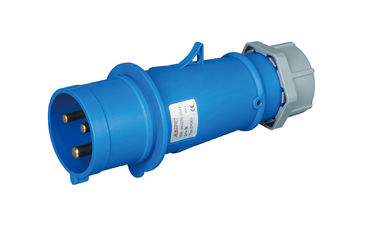

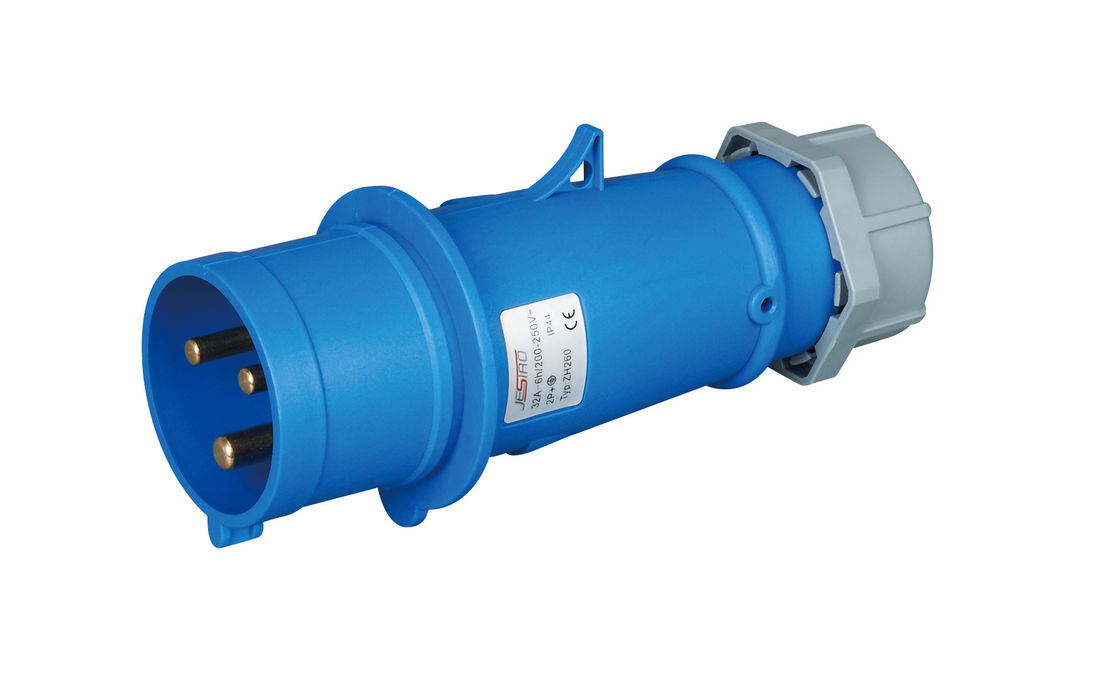

3P32A IP44 Rain Resistant Blue Industrial Plug 3rd Generation Industrial Plugs China Manufacturer part no. 260
Main benefits:
Easy & Safe
Robust and ergonomic designed surface socket outlets from 16 to 32A, IP44 Splashproof. The installation is easy done due to the clear terminal marking. After connecting the cables the housing is easily closed by a twist. Used in light industry, construction sites, farms, etc.
Tough & Safe
The robust housing is made of PBT plastic. Available as watertight (IP67, 16-125 A) and splashproof (IP44, 63 A). The devices are equipped with internal and external cable clamps. Used in demanding environments, such as industry, harbours, mines, food and beverage industry, etc.
Critical & Safe
The robust housing is made of PBT plastic, which withstands heavy-duty usage and most of chemicals found in industrial environments. 16 - 125 A, 50 - 690 VAT. All external screws made of stainless steel. Perfect for heavy and chemical industry, sawmills, airports, hospitals, etc.
Part no. 260
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 259 | 260 | 261 | 2195 | 2341 | 10 | 246 | |
| 4 | 262 | 263 | 264 | 265 | 266 | 267 | 10 | 265 | |
| 5 | 268 | 269 | 4 | 2015 | 2244 | 2178 | 10 | 302 |
| Current | Poles | a | b | c | d | e | f | g | |
| 32A | 3 | 173 | 144 | 57 | 51 | 25 | 62 | 80.7 | |
| 4 | 173 | 144 | 57 | 51 | 25 | 62 | 80.7 | ||
| 5 | 177 | 149 | 63.3 | 56.5 | 30.3 | 68.7 | 89 | ||
| Conductor cross-sectional area (mm²) Min To Max 4-6 | |||||||||
