| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 624 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Description: | Small Voltage Industrial Socket | Current: | 32 Amps |
|---|---|---|---|
| Voltage: | 40-50 Volts Low Voltage | Earth Position: | 12 H |
| Protection Degree: | IP44 Rain Resistant | Connection Technology: | Screwless - SafeCONTACT |
| Highlight: | low voltage plugs and sockets,industrial power socket outlet |
||

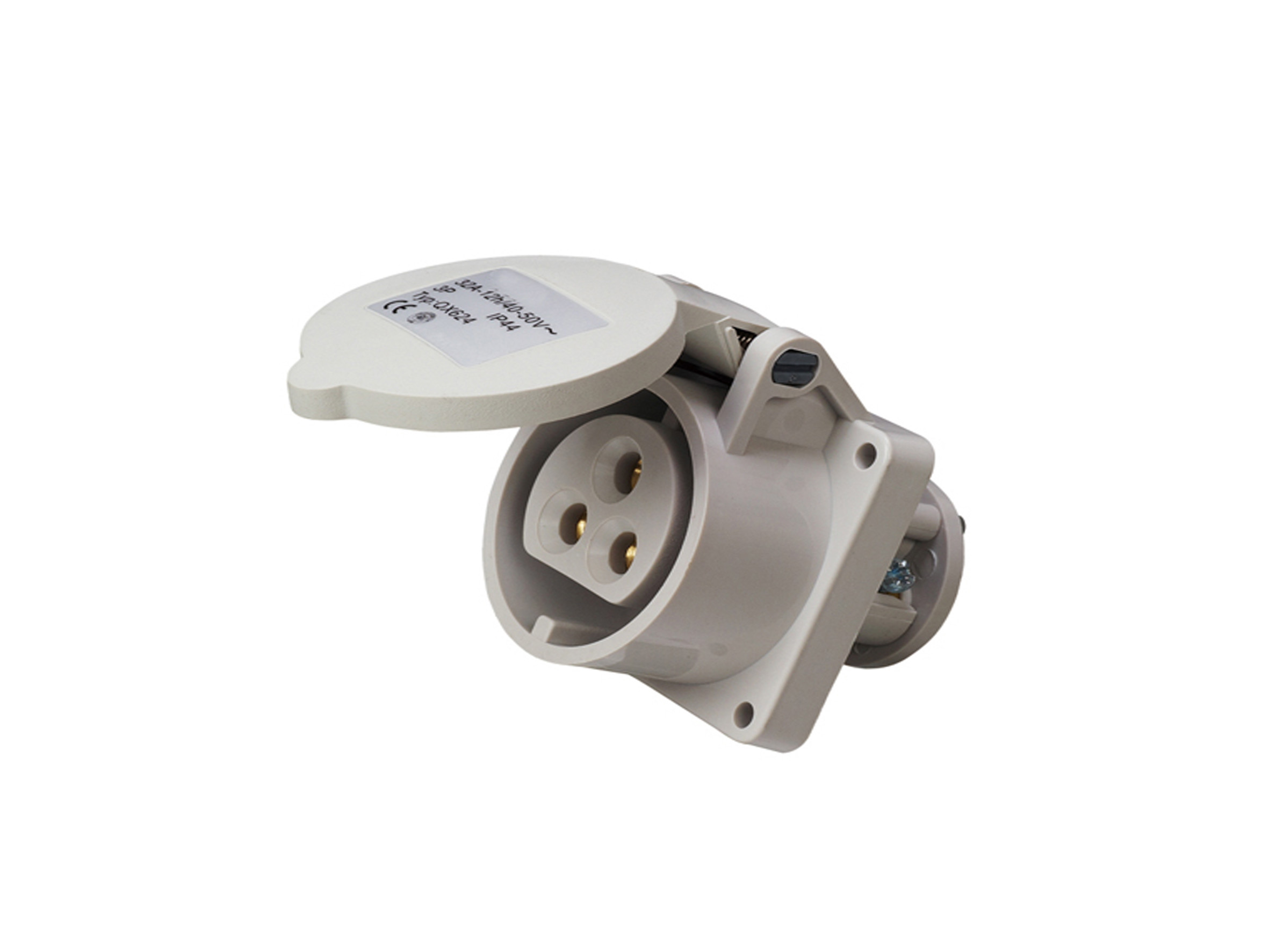

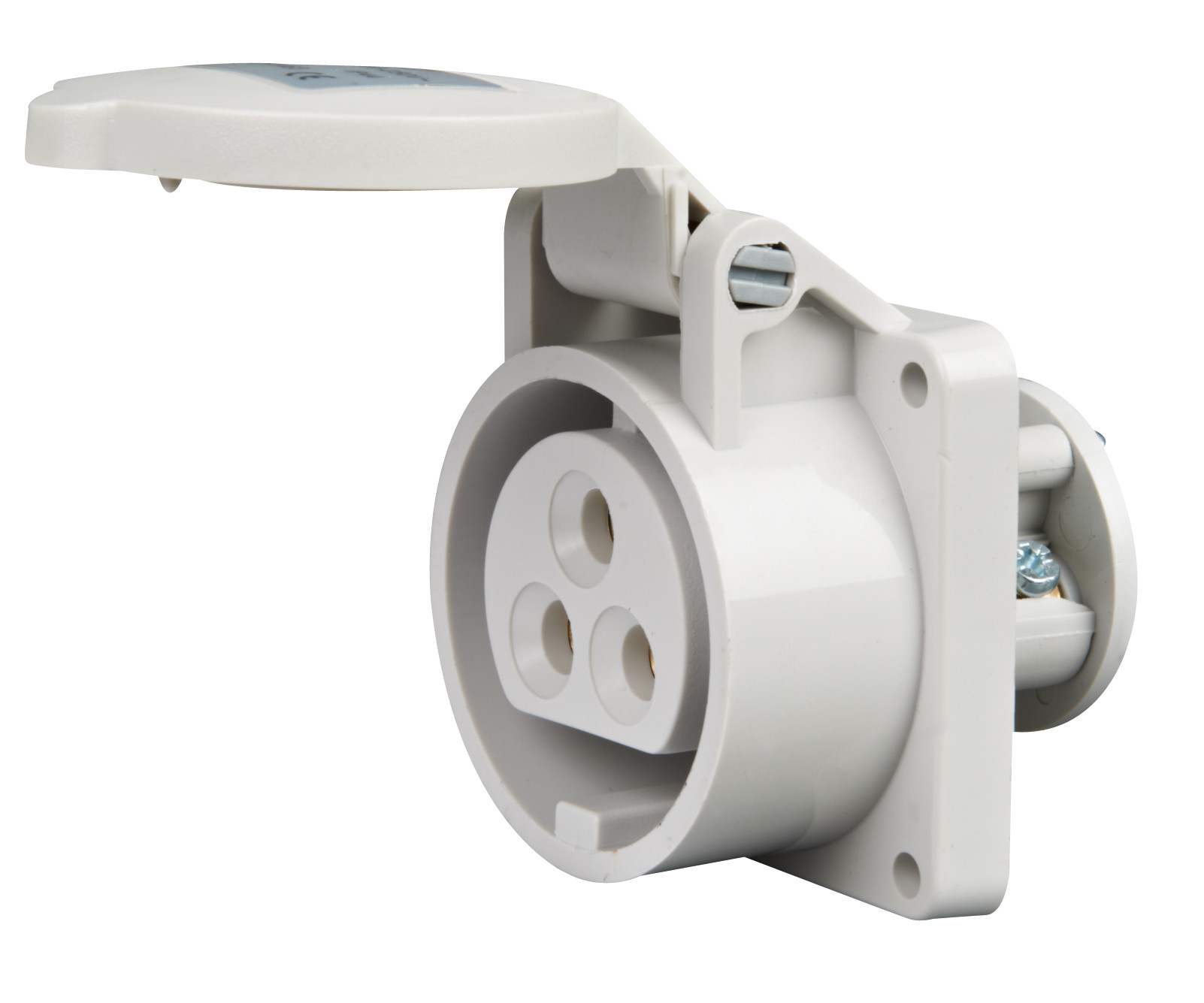

3P32A IP44 Weather-resistance Low Voltage Straight Industrial Socket 3rd Generation Receptacles part no. 624
Product range:
The extra-low voltage sockets and plugs ensure the non-interchangeability by means of two reference elements:
A guide spline on the plug which matches with a corresponding nib on the socket, always at a fixed 6 o’clock position
A secondary keyway, also this a spline on the plug, to which corresponds a nib on the socket, at different clock positions according to the operating characteristics.
Part no. 624
Technique Parameter:
| Current | Poles | 20-25V 50a.60Hz |
40-50V 50a.60Hz |
20-25V 40-50V 100-200Hz |
20-25V 40-50V 300Hz |
20-25V 40-50V 400Hz |
20-25V 40-50V 400-500Hz |
Package Unit | Weight |
| 12h | 12h | 4h | 2h | 3h | 11h | PCS/BOX | G/PC | ||
| 32A | 2 | 616 | 617 | 10 | 110 | ||||
| 3 | 623 | 624 | 625 | 10 | 132 | ||||
| Current | Poles | a | b | c | d | e | f | g | g.1 | h | k | l | ||||||||
| 32A | 2 | 55 | 55 | 44 | 45 | 45 | 4.2 | 8 | 2 | 67 | 22 | 34 | ||||||||
| 3 | 55 | 55 | 44 | 45 | 45 | 4.2 | 8 | 2 | 67 | 22 | 34 | |||||||||
| Conductor cross-sectional area(mm²)Min To Max 4-6 | ||||||||||||||||||||
Product Dimension:
