Material: | Polyamide | Poles: | 3 Pins |
---|---|---|---|
Current: | 63A | Voltage: | 230V |
Type: | Inclination | Weight: | 582g |
Highlight: | three phase plugs and sockets,industrial 3 phase plug and socket |

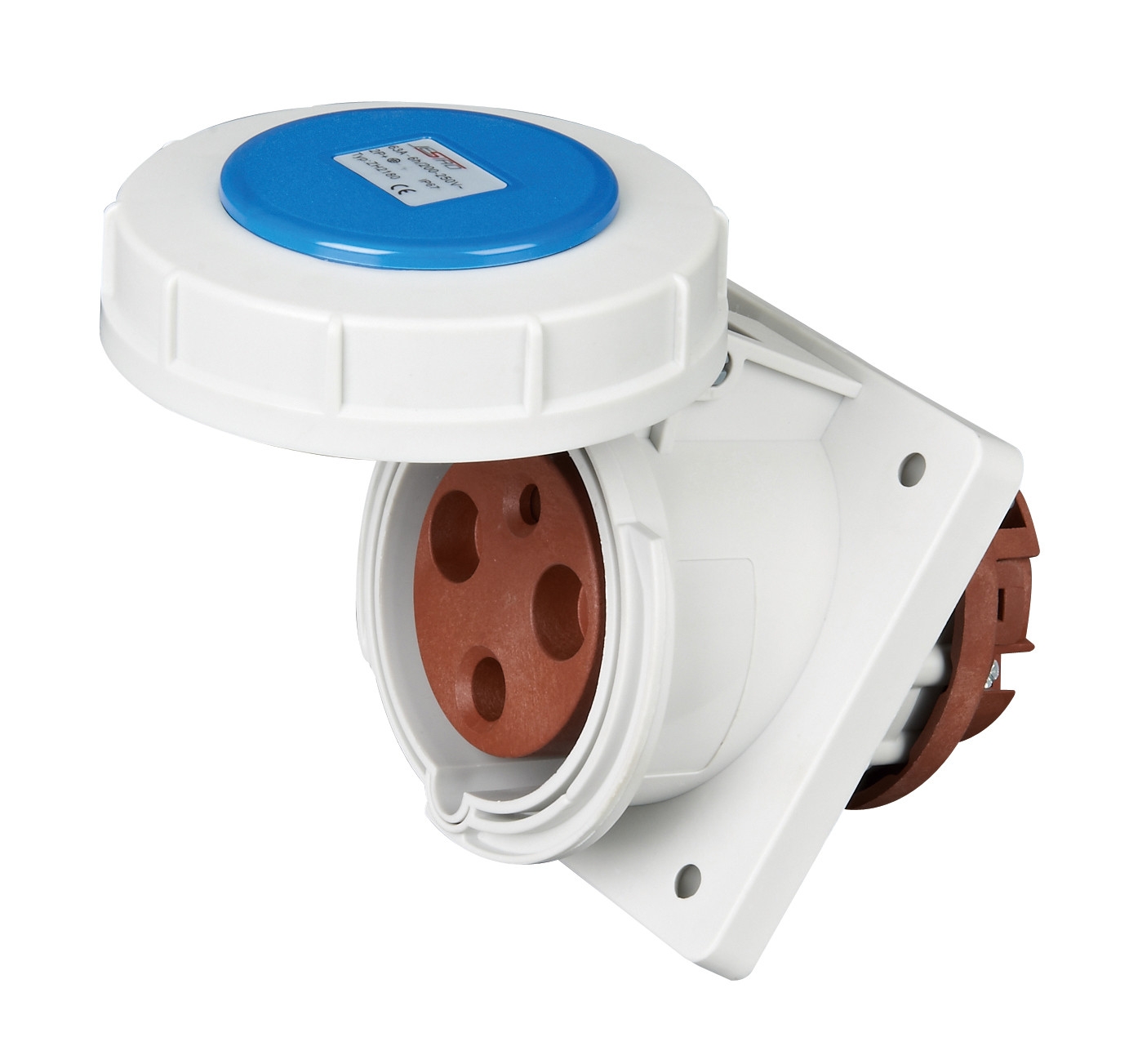

3P 63A IP67 Weatherproof Panel Mounted Receptacles with Cover Inclination 3 phase Industrial Socket part no. 2180
Description:
Critical & Safe is the range for applications with high demands on safety, durability and performance. Perfect for applications with frequent connection / disconnection, and to use in public areas.
The housing is made of PBT or aluminium. PBT is a tough plastic material that withstands heavy-duty usage and most chemicals found in industrial environments. The aluminium housing is a mix of aluminium and silicon called Silumin, which gives an excellent protection against corrosion while being robust and tough against impact and sun light.
Part no. 2180
Technique Parameter:
Current | Poles |
110V 50a.60Hz |
230V | 400V | 400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
63A | 3 | 2179 | 2180 | 2181 | 5 | 582 | ||||
4 | 203 | 204 | 205 | 206 | 5 | 621 | ||||
5 | 207 | 208 | 209 | 3507 | 5 | 689 |
Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l 1 | α | |
63A | 3 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 125 | 117 | 46 | 73 | 85 | 20° | |
4 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 125 | 117 | 46 | 73 | 85 | 20° | ||
5 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 125 | 117 | 46 | 75 | 86 | 20° | ||
Conductor cross-sectional area(mm²)Min To Max 10-16 |
