| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1574 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Connector | Material: | PA Plastic |
|---|---|---|---|
| Poles & Current: | 3P 63amps | Voltage: | 230Volts |
| Earth Position: | 6h | Waterproof Grade: | IP67 Waterproof |
| Highlight: | industrial 3 phase plug and socket,industrial socket plug |
||

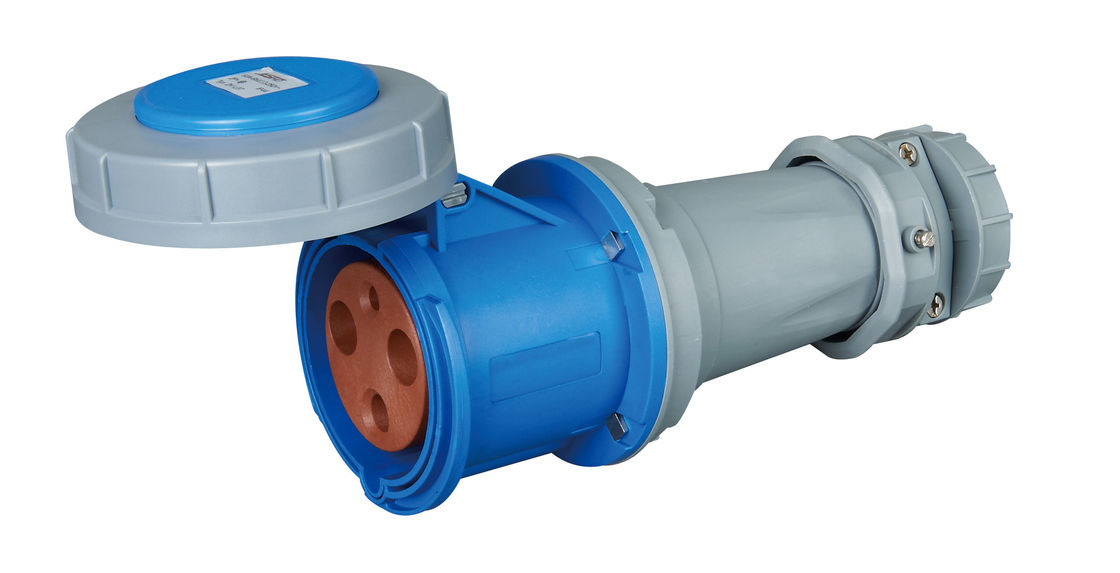

3P 63A IP67 Industrial Plugs and Connectors 3rd Generation Industrial Socket part no. 1574
Description:
Throughout Europe, a common use of industrial power connectors is in the entertainment and broadcast industries.
In this industry the above-mentioned IEC 60309 connectors are referred to as Ceeform connectors. 230 V single-phase (blue) and 400 V three-phase (red) connectors between 16 A and 125 A ratings are used.
Part no. 1574
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 1573 | 1574 | 1575 | 5 | 801 | ||||
| 4 | 1115 | 1116 | 1117 | 1118 | 5 | 850 | ||||
| 5 | 1119 | 1120 | 1121 | 3352 | 5 | 896 |
| Current | Poles | a | b | c | d | e | f | g | ||
| 63A | 3 | 260 | 104 | 95.8 | 77.4 | 112.5 | 109 | 34 | ||
| 4 | 260 | 104 | 95.8 | 77.4 | 112.5 | 109 | 34 | |||
| 5 | 260 | 104 | 95.8 | 77.4 | 112.5 | 109 | 34 | |||
| Conductor cross-sectional area (mm²) Min To Max 10-16 | ||||||||||
