| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 128 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Wall Mounted Industrial Socket | Material: | Hard Plastic PA |
|---|---|---|---|
| Poles & Current: | 3P 63amps | Voltage: | 230Volts |
| Frequency: | 50-60Hz | Waterproof Grade: | IP67 Waterproof |
| High Light: | industrial 3 phase plug and socket,industrial socket plug |
||

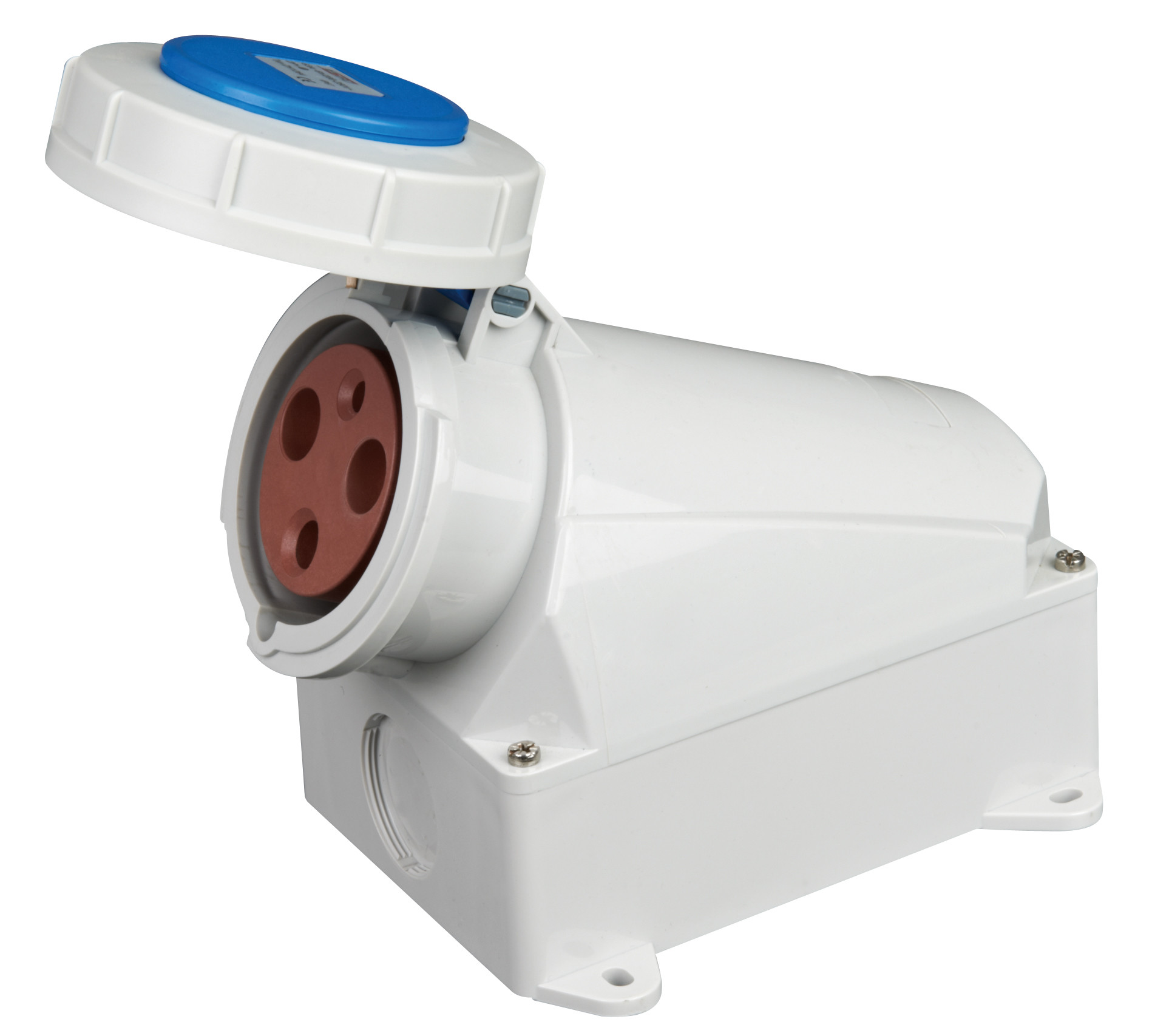

3P 63A IP67 Water Resistant Wall Mounted Receptacles 3 phase Industrial Sockets part no. 128
Description:
Yellow 2P+E, blue P+N+E, yellow 3P+E, red 3P+E, and red 3P+N+E are by far the most common arrangements. Blue P+N+E sockets (generally 16 A, although 32 A is becoming more common) are used as standard by British and Danish campsites and yacht marinas to provide 240 V domestic mains power to frame-tents, trailer-tents, caravans, and boats; they are also used elsewhere in Europe for the same purpose, though in some countries the local domestic plug is also widely used.
Part no. 128
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 856 | 128 | 129 | 5 | 900 | ||||
| 4 | 130 | 131 | 132 | 133 | 5 | 940 | ||||
| 5 | 134 | 135 | 136 | 2007 | 5 | 1010 |
| Current | Poles | a | b | c | d | e | e1 | f | g. | h | M | m* | |
| 63A | 3 | 171 | 157 | 169 | 133 | 108 | 136 | 6 | 5 | 216 | 40 | can use 1PC M40 CABLE GLAND |
|
| 4 | 171 | 157 | 169 | 133 | 108 | 136 | 6 | 5 | 216 | 40 | |||
| 5 | 171 | 157 | 169 | 133 | 108 | 136 | 6 | 5 | 216 | 40 | |||
| Conductor cross-sectional area(mm²)Min To Max 10-16 | |||||||||||||
Product Dimension:
