| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 3575 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Material: | Nylon | Rated Current: | 125A |
|---|---|---|---|
| Rated Voltage: | 230Volts | Earth Position: | 6h |
| Type: | Inclination | Product Weight: | 975G |
| Highlight: | three phase plugs and sockets,industrial socket plug |
||

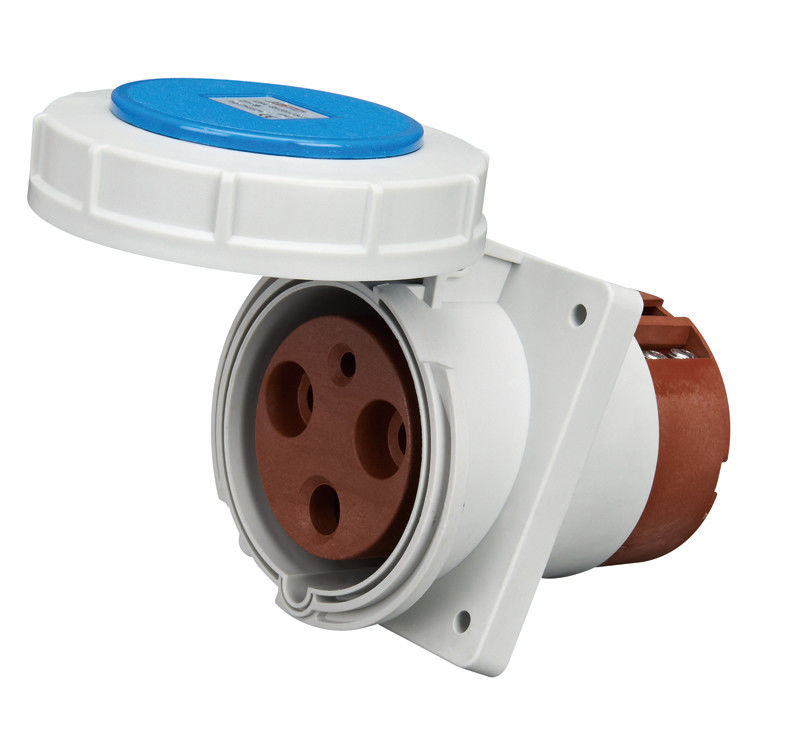

3P 125A IP67 Water Resistance Panel Mounted Receptacles with Cover Inclination 3 phase Industrial Socket part no. 3575
Description:
Voltage and other characteristics are represented by a colour code (in three-phase plugs the stated voltage is the phase-phase voltage, not the phase-neutral voltage). The different voltages have the earth pin of a larger diameter than the others, and located in different places depending on the voltage rating, making it impossible to mate, for instance, a blue plug with a yellow socket.
Since the different current ratings have different overall sizes, it is also not possible to mate different pin configurations or current ratings. For example, a 16 A 3P+E 400 V plug will not mate with a 16 A 3P+N+E 400 V socket and a 16 A P+N+E 230 V plug will not mate with a 32 A P+N+E 230 V socket.
Part no. 3575
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 125A | 3 | 3575 | 5 | 975 | ||||||
| 4 | 210 | 211 | 212 | 213 | 5 | 1028 | ||||
| 5 | 214 | 215 | 216 | 5 | 1076 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l 1 | α | |
| 125A | 3 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | |
| 4 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | ||
| 5 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 25-35 |
||||||||||||||||
