Material: | Nylon | Rated Current: | 125A |
---|---|---|---|
Rated Voltage: | 230Volts | Earth Position: | 6h |
Type: | Inclination | Product Weight: | 975G |
Highlight: | three phase plugs and sockets,industrial socket plug |

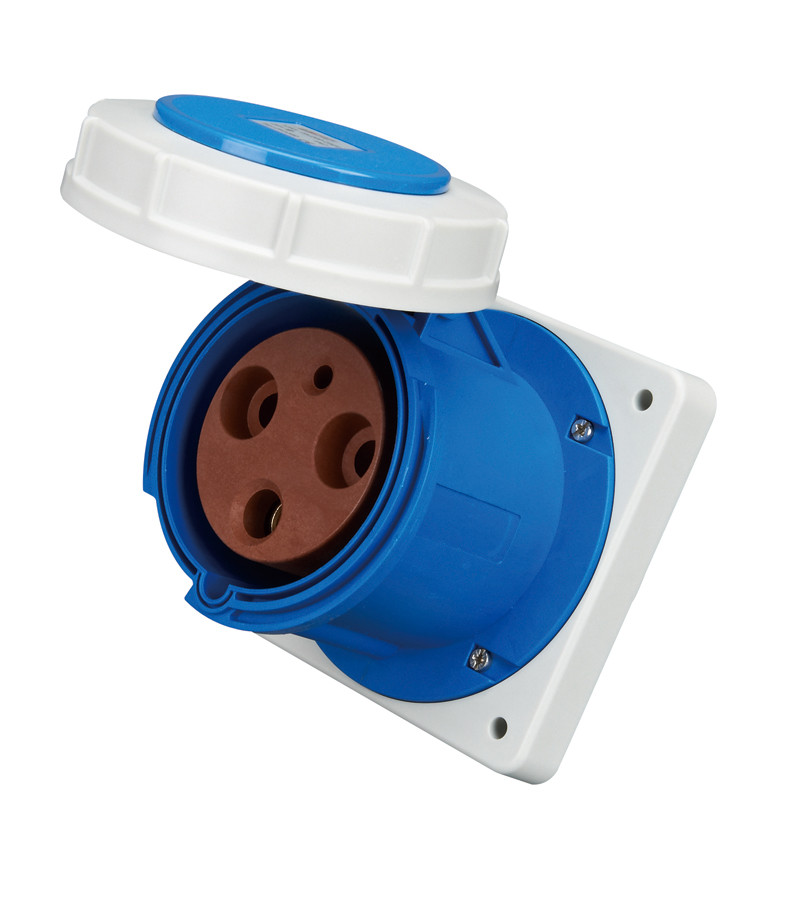

3P 125A IP67 Weather Resistance Panel Mounted Receptacles with Blue Cover Straight China Manufacturer part no. 3380
Description:
Plugs are available in P+N+E (unbalanced single phase with neutral), 2P+E (balanced single phase), 3P+E (3 phase without neutral), and 3P+N+E (three phase with neutral). Current ratings available are 16 A, 32 A, 63 A, 125 A and 200 A.
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
125A | 3 | 3380 | 5 | 1076 | ||||||
4 | 1455 | 1456 | 1457 | 1458 | 5 | 1126 | ||||
5 | 1459 | 1460 | 1461 | 3283 | 5 | 1175 |
Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | |
125A | 3 | 130 | 130 | 124 | 104 | 104 | 6.5 | 18 | 2 | 122 | 135 | 43 | 95 | |
4 | 130 | 130 | 124 | 104 | 104 | 6.5 | 18 | 2 | 122 | 135 | 43 | 95 | ||
5 | 130 | 130 | 124 | 104 | 104 | 6.5 | 18 | 2 | 122 | 135 | 43 | 95 | ||
Conductor cross-sectional area(mm²)Min To Max 25-35 |
