Material: | PA Plastic | Poles: | 3P |
---|---|---|---|
Rated Ampere: | 125 AMPS | Rated Voltage: | 230 VOLTS |
Connection Technology: | Screwless - SafeCONTACT | IP Rating: | IP67 Water Proof |
Highlight: | industrial 3 phase plug and socket,industrial socket plug |

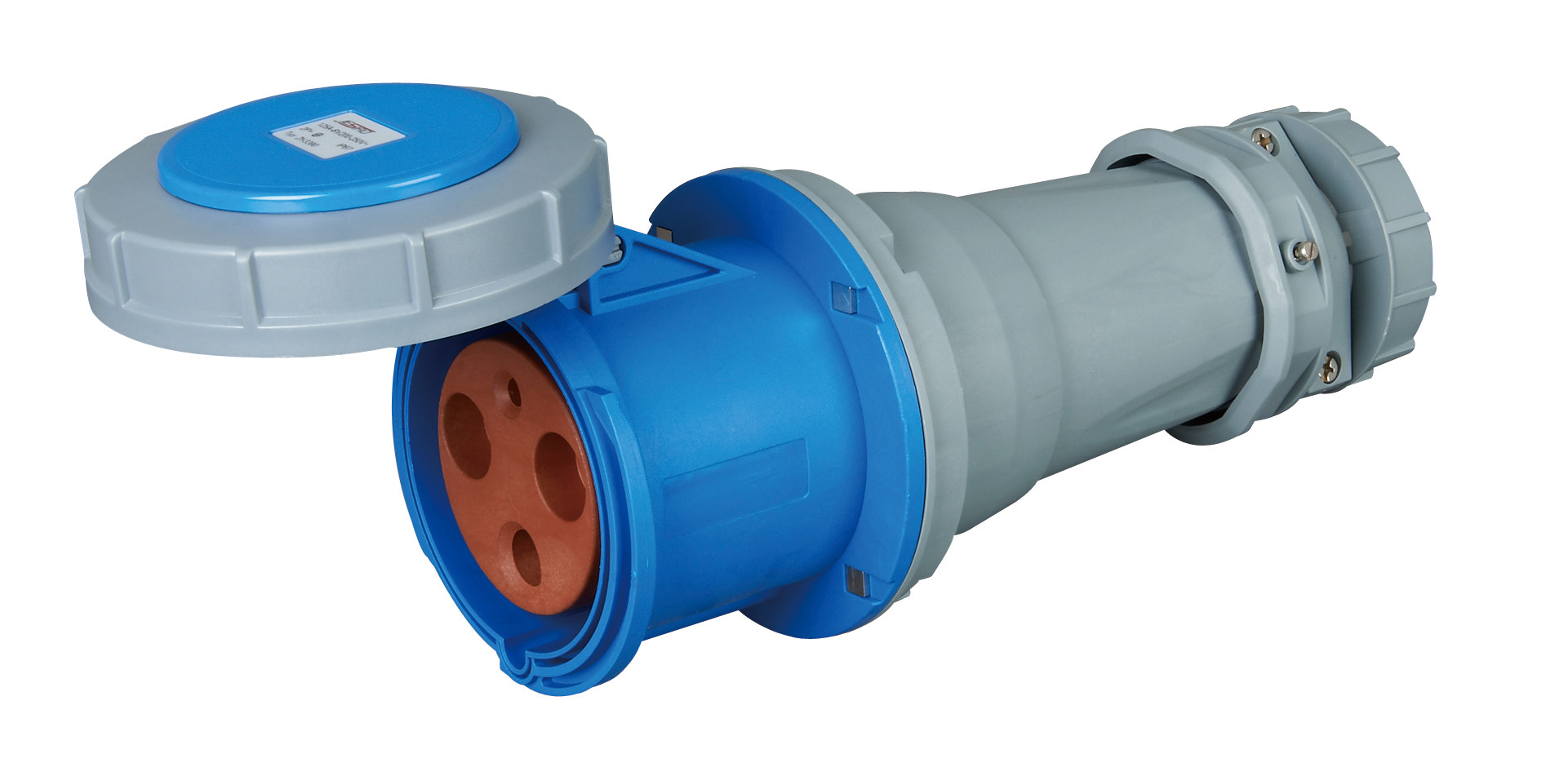

3P 125A IP67 Weatherprotected Industrial Plugs and Connectors with Blue Cover Third Generation part no. 3390
Description:
Static caravans generally use the similar 32 A version because of the requirement to power electrical cooking and heating appliances.
The blue P+N+E 16 A version carrying 240 V is also used in shopping malls and their peripherals to power 'temporary' stalls not incorporated within a lock-up shop, there is also use in domestic gardens within Britain to power garden equipment, barbecues, and temporary lighting.
Part no. 3390
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
125A | 3 | 3389 | 3390 | 5 | 1334 | |||||
4 | 1448 | 1449 | 1450 | 1451 | 5 | 1425 | ||||
5 | 1452 | 1453 | 1454 | 3174 | 5 | 1603 |
Current | Poles | a | b | c | d | e | f | g | ||
125A | 3 | 300 | 140 | 100 | 89.5 | 34.5 | 121 | 123 | ||
4 | 300 | 140 | 100 | 89.5 | 34.5 | 121 | 123 | |||
5 | 300 | 140 | 100 | 89.5 | 34.5 | 121 | 123 | |||
Conductor cross-sectional area (mm²) Min To Max 25-35 |
