Poles: | 4 Pin | Rated Current: | 16 Amps |
---|---|---|---|
Rated Voltage: | 400 Volts | Frequence: | 50-60 Hz |
Protection Type: | IP67 Water Resistant | Connection Technology: | Screwless - SafeCONTACT |
Highlight: | industrial 3 phase plug and socket,industrial socket plug |

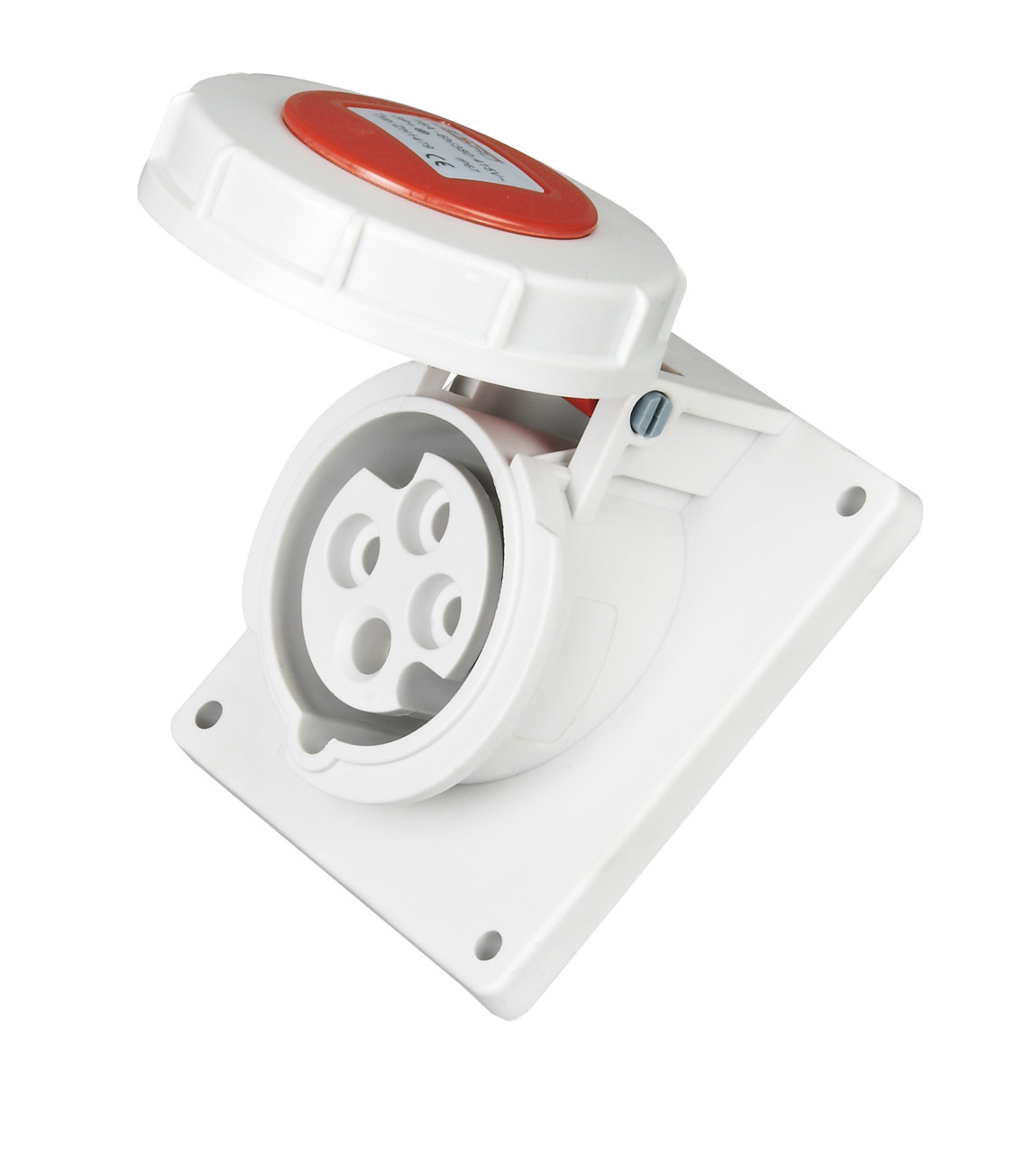

4P 16A IP67 Weatherproof Bevel Connector with Red Cover 3rd Generation 3 phase Industrial Socket part no. 1479
Features:
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
16A | 3 | 1474 | 1475 | 1476 | 10 | 148 | ||||
4 | 1477 | 1478 | 1479 | 1480 | 1481 | 1482 | 10 | 193 | ||
5 | 1483 | 1484 | 1485 | 10 | 197 |
Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l1 | α | |
16A | 3 | 73.5 | 64 | 52 | 60 | 52 | 5.3 | 7 | 2 | 84 | 78 | 41 | 55 | 65 | 20° | |
4 | 100 | 92 | 59 | 85 | 77 | 5.3 | 8 | 2 | 103 | 85 | 41 | 70 | 80 | 20° | ||
5 | 100 | 92 | 62 | 85 | 77 | 5.3 | 8 | 2 | 405 | 96 | 41 | 70 | 80 | 20° | ||
Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 |
