| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 222 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Material: | Hard Plastic PA | Poles: | 4 P |
|---|---|---|---|
| Current: | 16A | Voltage: | 400V |
| Protection Type: | IP67 Water Protected | Type: | Inclination |
| High Light: | industrial 3 phase plug and socket,industrial socket plug |
||

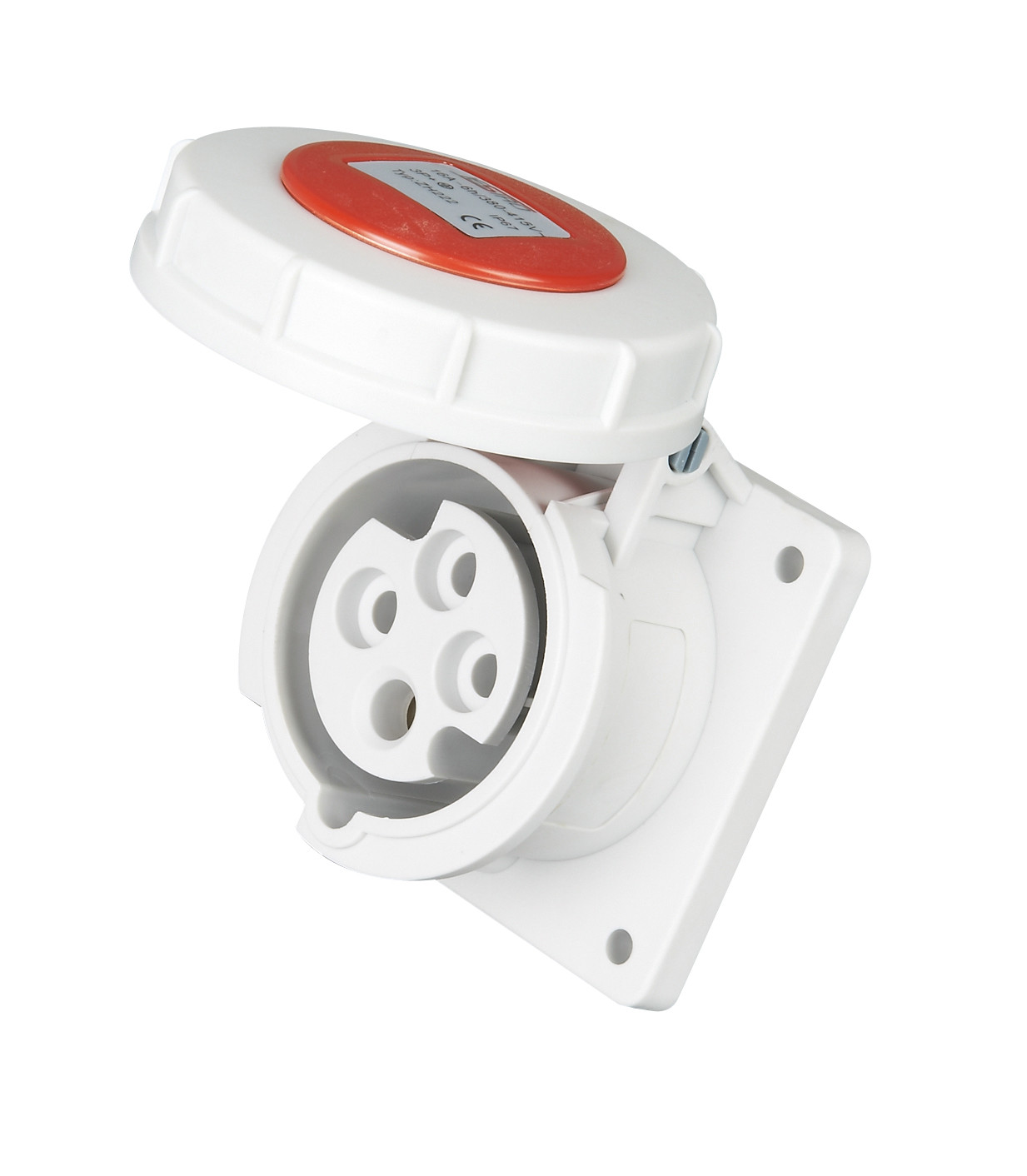

4P 16A IP67 Weather Resistance Panel Mounted Receptacle with Red Cover Industrial Socket Inclination part no. 222
Features:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 217 | 218 | 219 | 10 | 153 | ||||
| 4 | 220 | 221 | 222 | 223 | 224 | 225 | 10 | 176 | ||
| 5 | 226 | 227 | 228 | 10 | 214 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | |
| 16A | 3 | 75 | 75 | 60 | 60 | 60 | 5.5 | 8 | 2 | 83 | 78 | 26 | 50 | |
| 4 | 75 | 75 | 61 | 60 | 60 | 5.5 | 8 | 2 | 88 | 85 | 27 | 54 | ||
| 5 | 75 | 75 | 61 | 60 | 60 | 5.5 | 8 | 2 | 95 | 96 | 27 | 57 | ||
| Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 | ||||||||||||||
