| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 6 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Connector | Poles & Current: | 5 Poles 32 Amps |
|---|---|---|---|
| Voltage: | 400V | Material: | Polyamide |
| Protection Type: | IP44 Weather Protect | Product Weight: | 381g |
| Highlight: | three phase plugs and sockets,industrial socket plug |
||

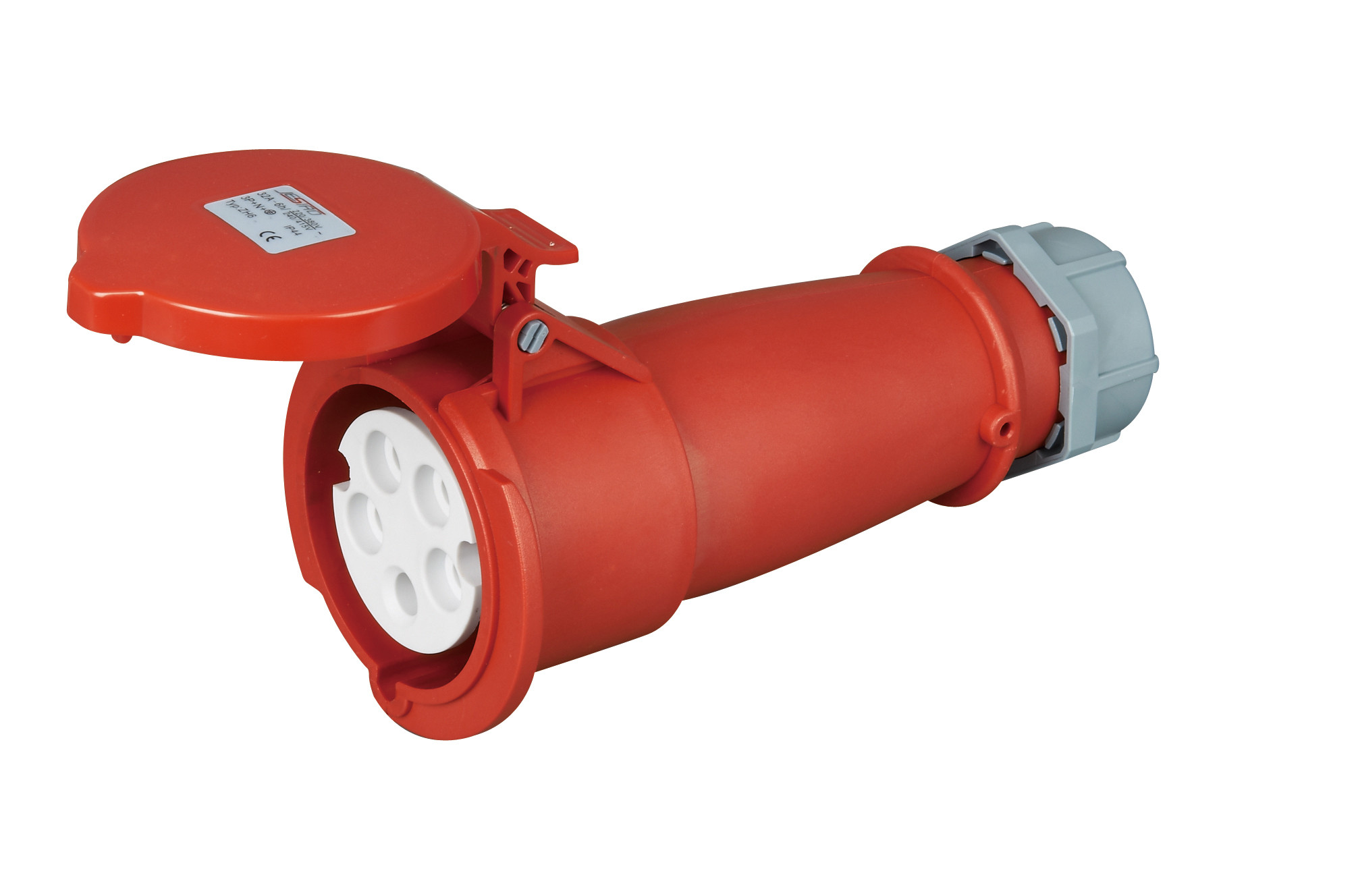

5P 32Amps IP44 Red Plugs and connectors with Cover 3 phase Industrial Socket part no. 6
Description:
The contacts in the plug are simple cylinders (sleeves), while the pin contacts in the receptacle have the spring arrangement to hold contact pressure, the reverse of the IEC 60309 type connectors. All contacts are the same diameter. Originally metal construction was used, but now they are also made with plastic shells. Since only keying in the connector shell is used, and since the keys can be damaged in industrial use, it is possible to mis-match worn connectors.
Part no. 6
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 521 | 522 | 523 | 2196 | 2674 | 10 | 323 | |
| 4 | 524 | 525 | 526 | 527 | 528 | 529 | 10 | 346 | |
| 5 | 530 | 531 | 6 | 2027 | 2245 | 2493 | 10 | 381 |
| Current | Poles | a | b | c | d | e | f | g | |
| 32A | 3 | 200 | 106.5 | 64.2 | 64.2 | 101.8 | 37 | 71.6 | |
| 4 | 200 | 106.5 | 64.2 | 64.2 | 101.8 | 37 | 71.6 | ||
| 5 | 200 | 108.7 | 62.7 | 70.8 | 111 | 37 | 79.5 | ||
| Conductor cross-sectional area (mm²) Min To Max 4-6 | |||||||||
Product Dimension:
