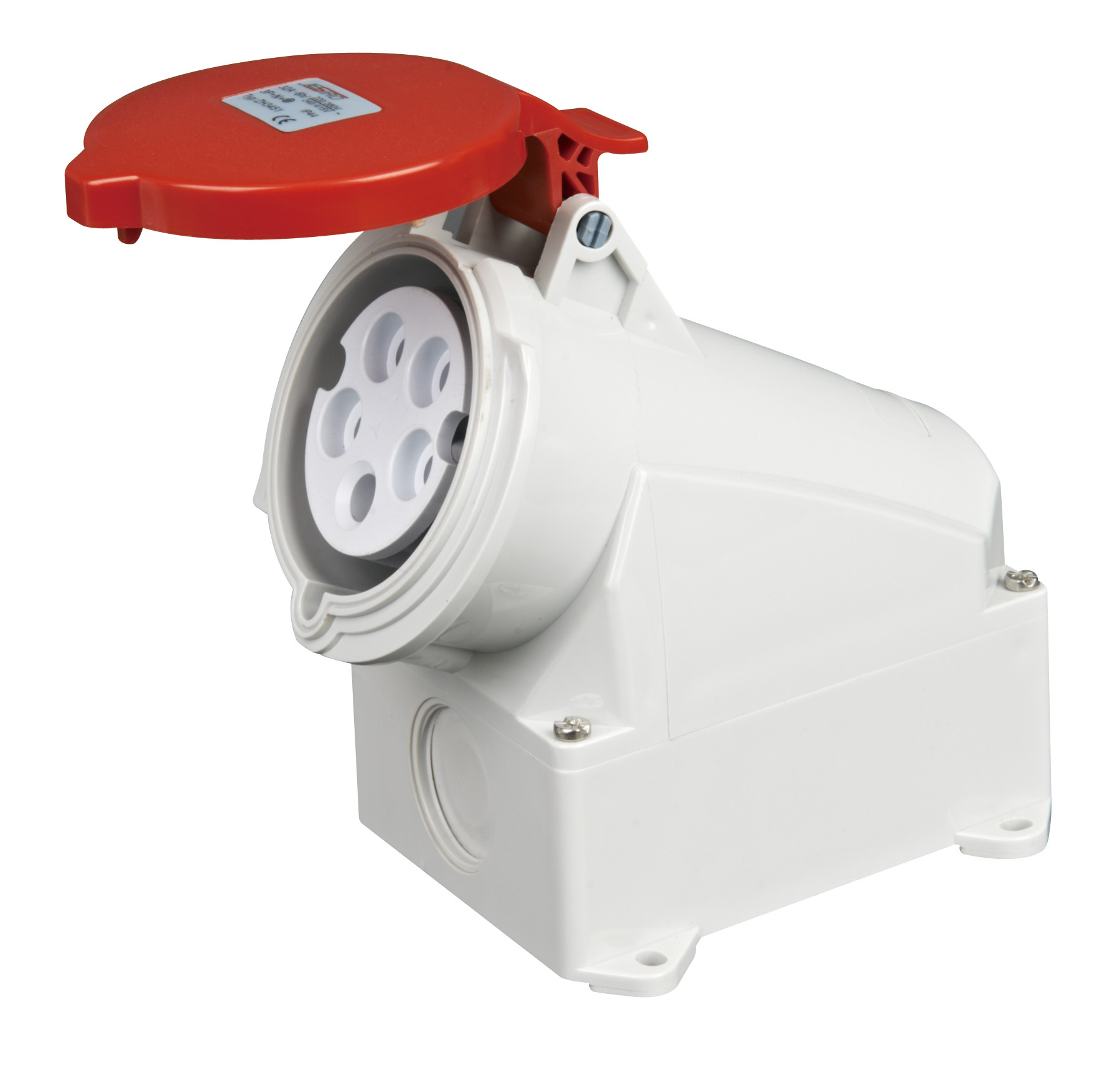

Wall Mounted Inclination 3 Phase Industrial Socket High Grade Plastic Nylon 66 Case

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1557
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Name: Inclination Industrial Socket Poles & Voltage: 5 Poles 400V
Ampere: 32Amps Material: PA
Protection Type: IP44 Waterproof Type: Wall Mounted
High Light:

industrial 3 phase plug and socket

,

industrial socket plug


Product Description

5P 32Amps IP44 Waterproof Wall Mounted Red Cover Receptacle Industrial Socket Inclination part no. 1557





Features:


1. PC plugs, sockets and couplings are constructed for extreme operating conditions.

2. The cases and inlets are made of high grade plastic nylon 66.

3. All units not only fit with the same system but also are fully compatible with units


Part no. 1557



Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
32A 3 1420 1421 1422   3139 3134 10 351
4 1423 1424 1425 1426 1427 1428 10 348
5 1555 1556 1557 3152 3154 3149 10 403

Current Poles a b c d e f g. h M m*
32A 3 128 84 147 11 68 5.3 4 158 32 can use 1PC
M32 CABLE GLAND
4 128 84 147 11 68 5.3 4 158 32
5 128 84 152 11 68 5.3 4 160 32
Conductor cross-sectional area(mm²)Min To Max 4-6


Product Dimension:

Wall Mounted Inclination 3 Phase Industrial Socket High Grade Plastic Nylon 66 Case 0
