Name: | Receptacle | Poles: | 5P |
---|---|---|---|
Ampere & Voltage: | 32A & 400V | Protection Type: | IP67 Watertight |
Type: | Panel Mounted | Material: | Strong Plastic PA |
Highlight: | three phase plugs and sockets,industrial socket plug |

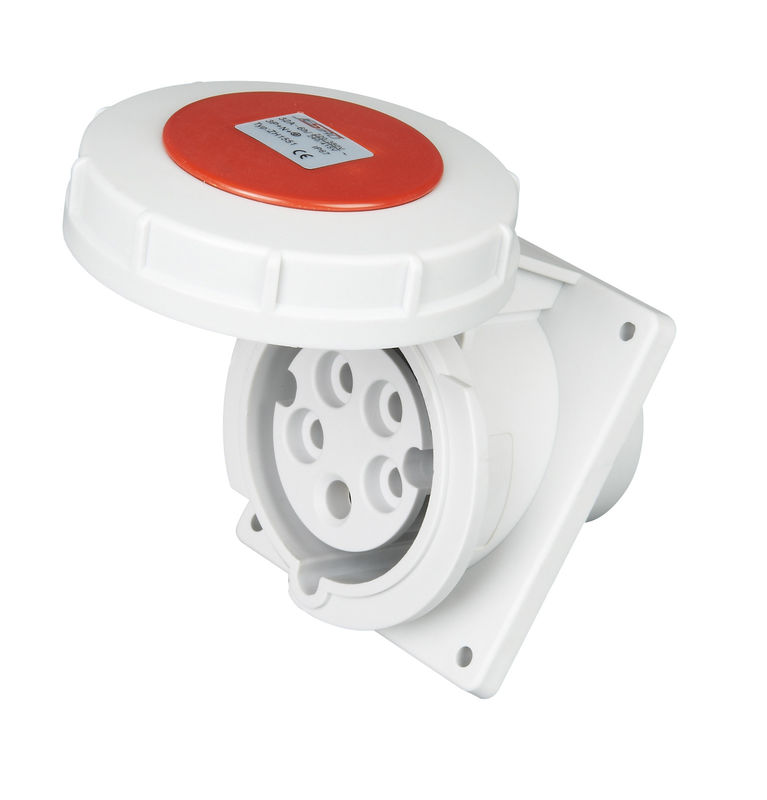

5P 32Amps IP67 Watertight Panel Mounted Red Cover Receptacle Industrial Socket Inclination part no. 1551
Description:
As commonly used, 10-30 and 10-50 plugs have the frame of the appliance grounded through the neutral pin. This was a legal grounding method under the National Electrical Code for electric ranges and electric clothes dryers from the 1947 to the 1996 edition.
Since North American dryers and ranges have certain parts (timers, lights, fans, etc.) that run on 120 V, this means that the wire used for grounding is also carrying current.
Although this is contrary to modern grounding practice, such installations remain extremely common in the United States and are relatively safe, because the larger conductors used are less likely to be broken than the smaller conductors used in ordinary appliance cords.
Part no. 1551
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
32A | 3 | 1501 | 1502 | 1503 | 10 | 284 | ||||
4 | 1504 | 1505 | 1506 | 2223 | 1507 | 1567 | 1568 | 10 | 303 | |
5 | 1489 | 1490 | 1551 | 10 | 337 |
Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l1 | α | |
32A | 3 | 100 | 92 | 64 | 85 | 77 | 5.3 | 8 | 2 | 109 | 103 | 51 | 70 | 82 | 20° | |
4 | 100 | 92 | 64 | 85 | 77 | 5.3 | 8 | 2 | 109 | 103 | 51 | 70 | 82 | 20° | ||
5 | 100 | 92 | 66 | 85 | 77 | 5.3 | 8 | 2 | 113 | 110 | 52 | 73 | 85 | 20° | ||
Conductor cross-sectional area(mm²)Min To Max 4-6 |
Product Dimension:
