Name: | Industrial Plug | Poles: | 5pin |
---|---|---|---|
Voltage & Current: | 400 Volts & 32 Amps | IP Rating: | IP67 Weather-protected |
Type: | Panel Mounted | Material: | PA |
Highlight: | industrial 3 phase plug and socket,industrial socket plug |

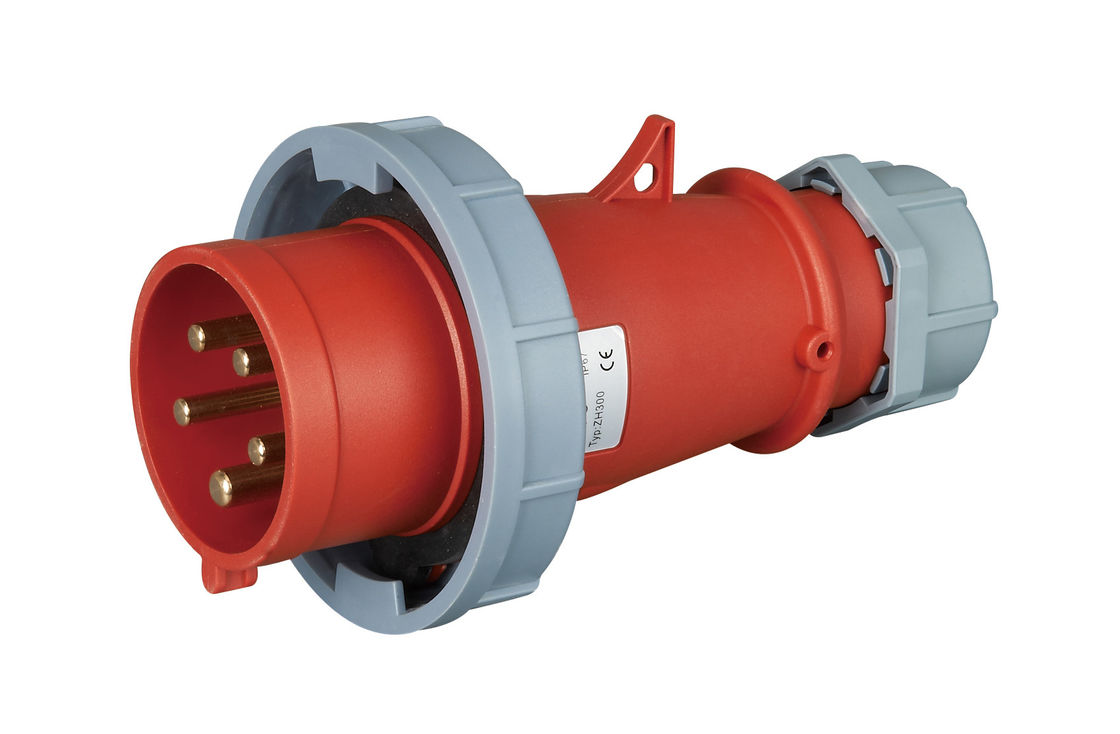

5P 32Amps IP67 Weather-protected Industrial Plug 3rd Generation Industrial Sockets part no. 300
Features:
1. They are of easy installation, long life and high reliability. They are widely used since many years ago in the machine
industry, crane industry, construction industry, trains and cars.
2. The material has extremely good insulation
ability and it is unbreakable, wearable long-time durable up to +120°C,
resistant against oil, gasoline and salt water, almost non-aging,extremely cold-proof and splash-proof.
3. easily through movable cable clamp,used securely and reliably.
Part no. 300
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
32A | 3 | 289 | 290 | 291 | 10 | 292 | ||||
4 | 292 | 293 | 294 | 2175 | 295 | 296 | 297 | 10 | 310 | |
5 | 298 | 299 | 300 | 10 | 356 |
Current | Poles | a | b | c | d | e | f | g | ||
32A | 3 | 170 | 141 | 32.5 | 93.3 | 51 | 25 | 62.2 | ||
4 | 170 | 141 | 32.5 | 93.3 | 51 | 25 | 62.2 | |||
5 | 177 | 148 | 32.5 | 101 | 56.5 | 30.3 | 68.7 | |||
Conductor cross-sectional area (mm²) Min To Max 4-6 |
