| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1688 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Inlet | Poles: | 5 Phase |
|---|---|---|---|
| Current & Voltage: | 63AMP & 400VOLT | Protection Grade: | IP44 Water Resistance |
| Material: | PA (Nylon) | Color: | Red |
| High Light: | three phase plugs and sockets,industrial socket plug |
||

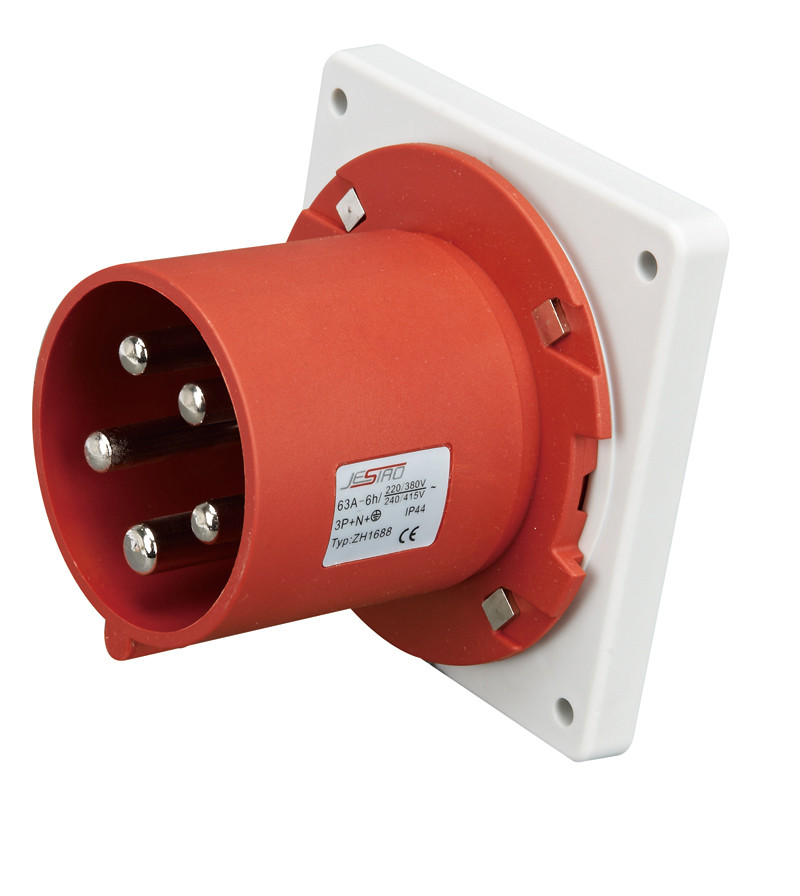

5P 63Amps IP44 Water Resistance Panel Mounted Red Inlet Industrial Plugs and connectors part no. 1688
Description:
HYPER industrial plugs and sockets are PA bodied waterproof plugs and sockets made by HYPER. The pin arrangements of the smaller single phase varieties are the same as BS 1363 and BS 546 plugs and sockets.
These plugs and sockets will mate with normal plugs and sockets of the same pin arrangement but they are only waterproof when a HYPER plug is used in a HYPER socket and the screw ring is properly tightened (sockets have a metal cover that screws on to waterproof them when not in use).
Part no. 1688
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 822 | 1981 | 5 | 365 | ||||
| 4 | 1984 | 1982 | 824 | 5 | 481 | ||||
| 5 | 1688 | 5 | 533 |
| Current | Poles | a | b | c | d | e | f | g | g.1 | l | |||||
| 63A | 3 | 110 | 106 | 85 | 90 | 90 | 5.5 | 12 | 2 | 86 | |||||
| 4 | 110 | 106 | 85 | 90 | 90 | 5.5 | 12 | 2 | 86 | ||||||
| 5 | 110 | 106 | 85 | 90 | 90 | 5.5 | 12 | 2 | 86 | ||||||
| Conductor cross-sectional area(mm²)Min To Max 10-16 | |||||||||||||||
