| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1235 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Plug | Poles & Current: | 5P 63A |
|---|---|---|---|
| Voltage: | 400 Volts | Protection Type: | IP44 Rain Resistance |
| Material: | Plastic PA | Earth Position: | 6h |
| Highlight: | industrial 3 phase plug and socket,industrial socket plug |
||

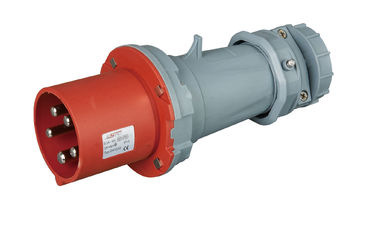

5P 63Amps IP44 Rain Resistant Red Industrial Plug 3 phase Industrial Socket part no. 1235
Description:
Our company is placed among the foremost supplier of Industrial Sockets. Our vendors use only high grade material and latest technology to design these products.
The offered products are availed in different sizes and other related specifications, to meet needs of our prestigious clients. Moreover, our entire range is known for their features including sturdy structure, durability and light weight. Our entire range is rigorously tested by our skilled engineers on well-defined parameters to deliver a flawless range at client's end.
Part no. 1235
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 1226 | 1227 | 1228 | 5 | 607 | |||
| 4 | 1229 | 1230 | 1231 | 1232 | 5 | 652 | |||
| 5 | 1233 | 1234 | 1235 | 5 | 705 |
| Current | Poles | a | b | c | d | e | f | g | |
| 63A | 3 | 238.9 | 179.4 | 66 | 100.1 | 75.5 | 36.5 | 69.5 | |
| 4 | 238.9 | 179.4 | 66 | 100.1 | 75.5 | 36.5 | 69.5 | ||
| 5 | 238.9 | 179.4 | 66 | 100.1 | 75.5 | 36.5 | 69.5 | ||
| Conductor cross-sectional area (mm²) Min To Max 10-16 | |||||||||
