Name: Electrical 32Amps 5 Pin Industrial Socket , Industrial Socket Plug Connector
Brand: ZHEJIANG HANBEN ELECTRICAL CO., LTD.
SKU: 5108
Availability: InStock

Electrical 32Amps 5 Pin Industrial Socket , Industrial Socket Plug Connector

Basic Information

Place of Origin:	China
Brand Name:	HYPER
Certification:	DIN VDE 0623 EN/IEC 60309-2
Model Number:	5108

Minimum Order Quantity:	500pcs
Packaging Details:	packed by standard paper carton
Delivery Time:	15 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100,000pcs / month

Get Best Price Contact Now

Detail Information

Name:	Switched Socket Combination Box	Poles & Current:	5P 32A
Voltage:	400V	Contact:	Standard
Protection Type:	IP44 Rain Resistance	Connection Technology:	Screwless - SafeCONTACT
Highlight:	plug and socket connectors , iec 60309 plugs and sockets

Product Description

5P 32Amps IP44 Water Resistant 3rd Generation Switched Socket Combination Box China Manufacturer part no. 5108

Description:

Industrial plugs and socket-outlets cover all industrial electrical installations, even under the most extreme conditions. From 16 A to 600 A, these connectors are waterproof, robust with a long life span. They guarantee the electrical safety of the users and the durability of the equipment.

Part no. 5108

Technique Parameter:

Current	Poles	110V 50a.60Hz	230V 50a.60Hz	400V 50a.60Hz	500V 50a.60Hz	>50-500V 100-300Hz	>50-500V a.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P 6h 9h 9h	3P 4P 5P 9h 6h 6h	3P 4P 5P 7h 7h 7h	3P 4P 5P 10h 10h 10h	3P 4P 5P 2h 2h 2h	PCS/BOX	G/PC
32A	3	5743	5696					1	1100
	4	5460	5104	5105	5106			1	1145
	5	5462	5107	5108				1	1200

Current	Poles	a	b	c	d	e	f	g	h	M	m*
32A	3	225	118	146	208	101	6.3	8	264	2*25	25/32
	4	225	118	146	208	101	6.3	8	264	2*25	25/32
	5	225	118	146	208	101	6.3	8	264	2*25	25/32
Conductor cross-sectional area (mm²) Min To Max 4-6

Product Dimension:

Electrical 32Amps 5 Pin Industrial Socket , Industrial Socket Plug Connector 0

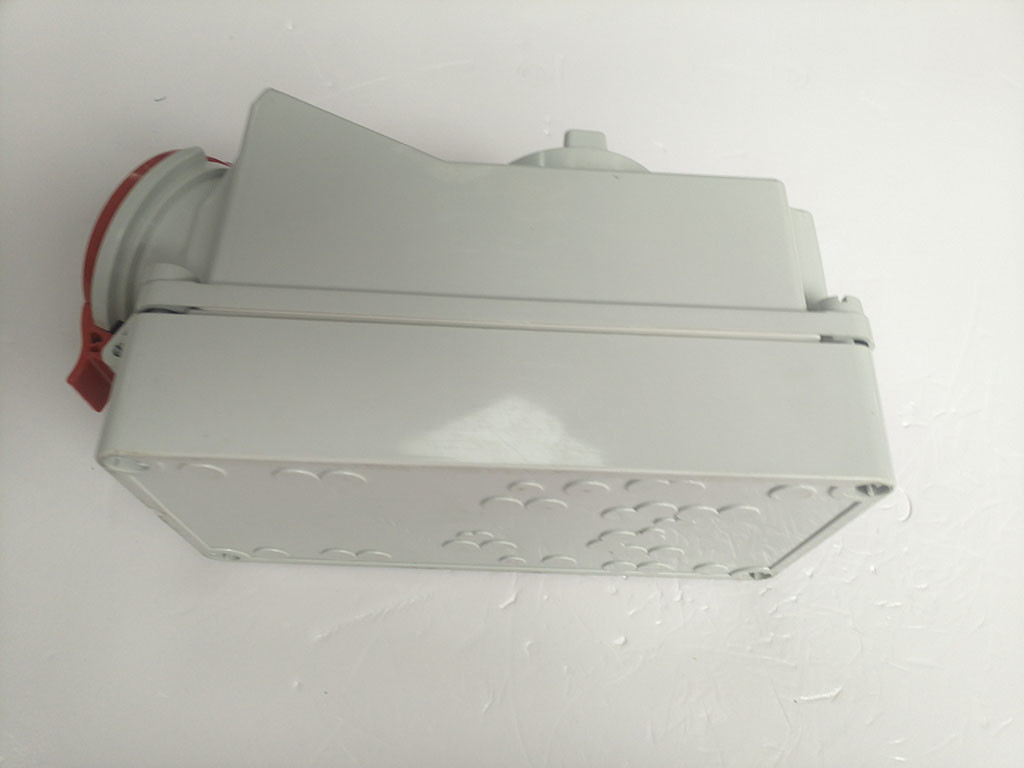

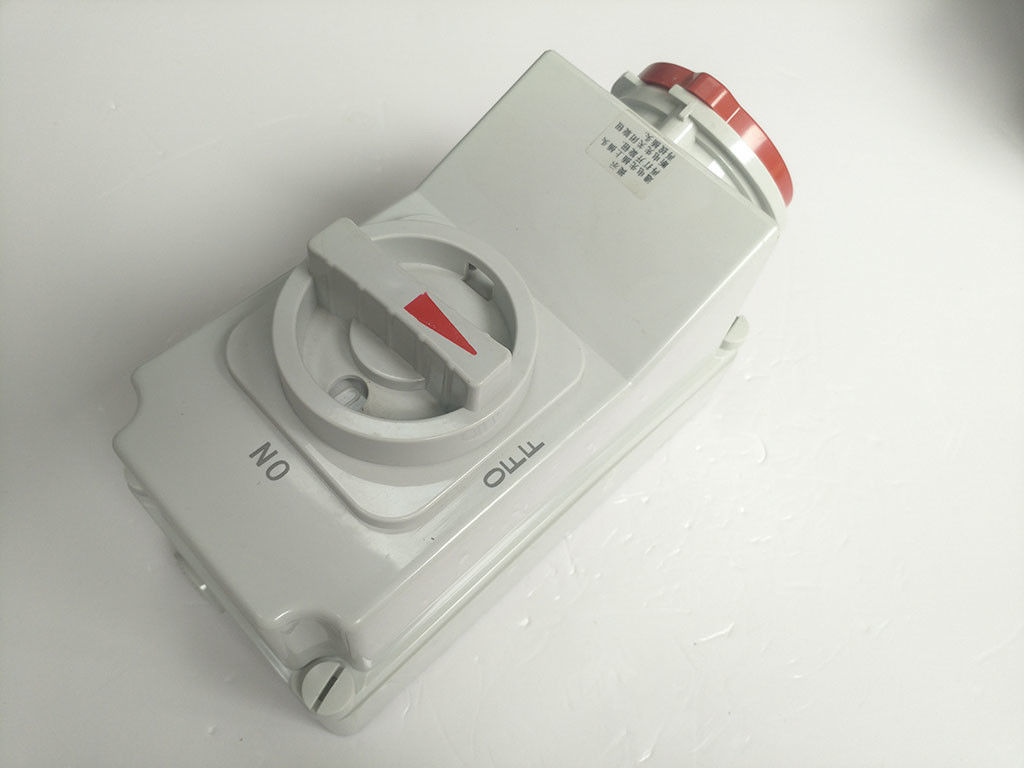

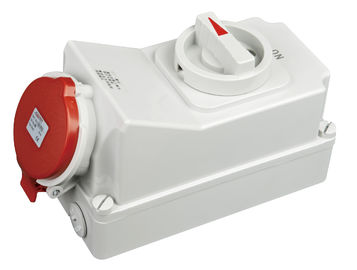

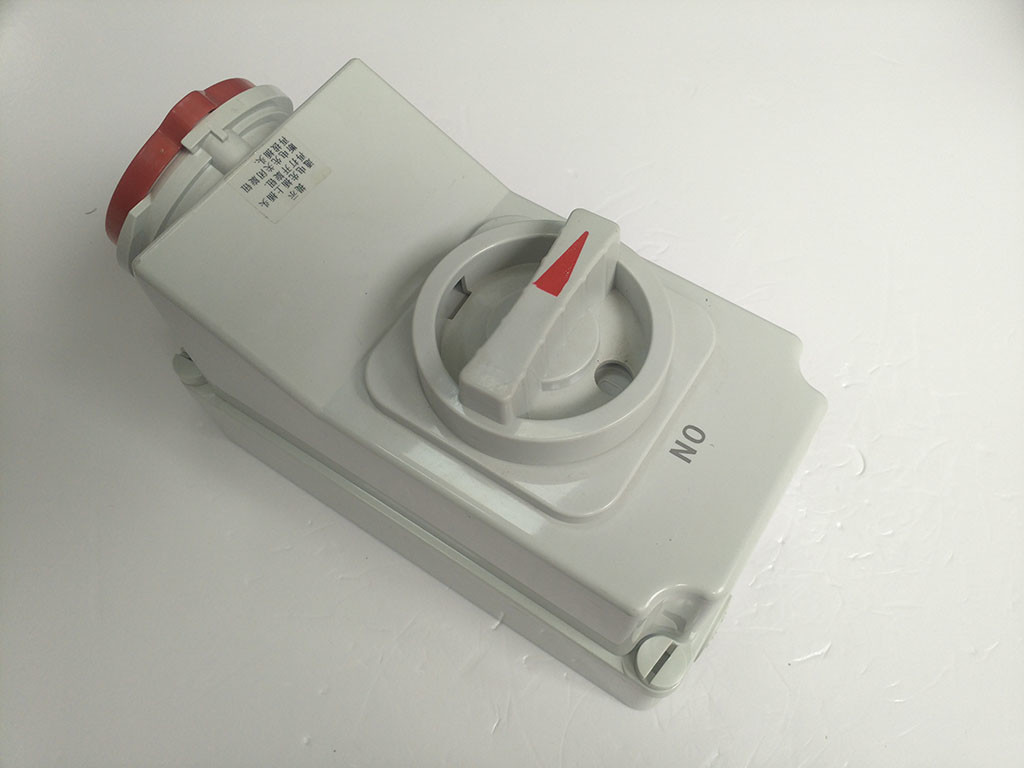

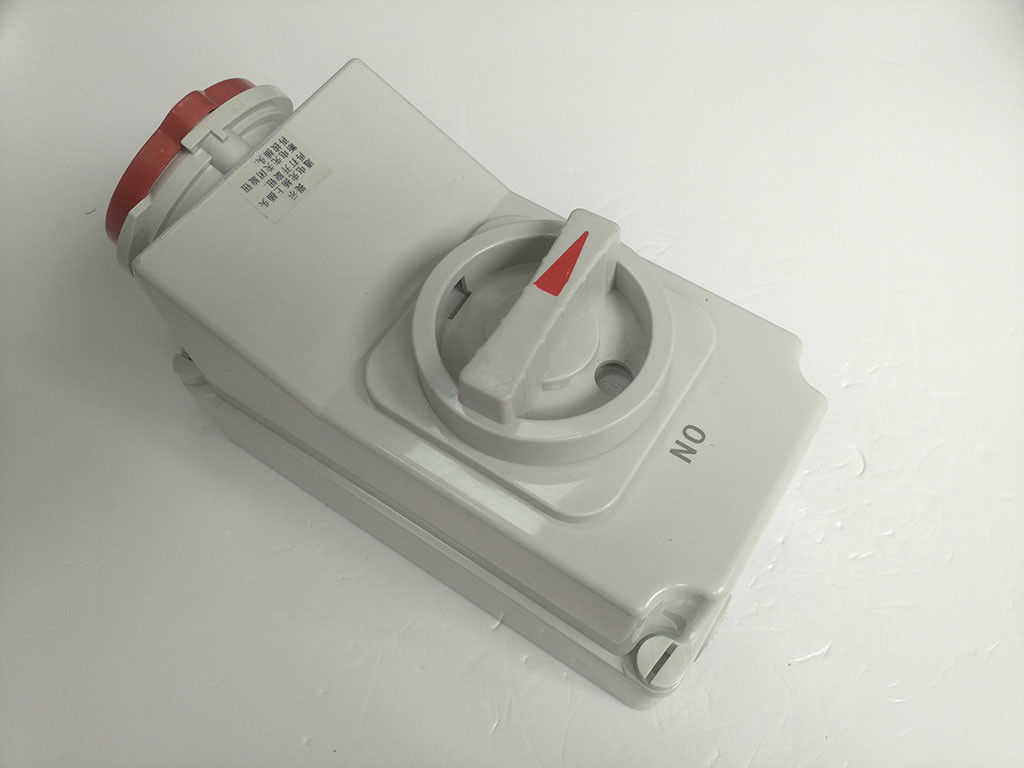

Picture:

Electrical 32Amps 5 Pin Industrial Socket , Industrial Socket Plug Connector 1
