| Place of Origin: | China |
|---|---|
| Brand Name: | PowerSyntax |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1114 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Plug / Socket: | Plug (Mobile Type) | Current Rating (Ampere): | 63A |
|---|---|---|---|
| Pole Format: | 5P = 3P+N+E | Voltage Rating: | 380V ~ 440V |
| IP Rating: | IP67 | Mounting Type: | Cable Mount |
| Clock Position: | 6h | Frequency (Hertz): | 50-60 Hz |
| Identification Color: | Red | Gender: | Male |
| Body Orientation: | Straight | Connection Technology: | Screw Terminal |
| Cable CSA (Cross-sectional Area): | 10 - 16 Mm² | Material Of Plastic Housing: | PA6 = Polyamide 6 = Nylon 6 |
| Material Of Metal Contacts: | Nickel Plated Brass | Maximum Operating Temperature: | + 55°C |
| Minimum Operating Temperature: | - 25°C | International Standard: | EN/IEC 60309-2, DIN VDE 0623 |
| Highlight: | 5P 63A IP67 plug,5pins 63amps Plug,1114 industrial plug |
||

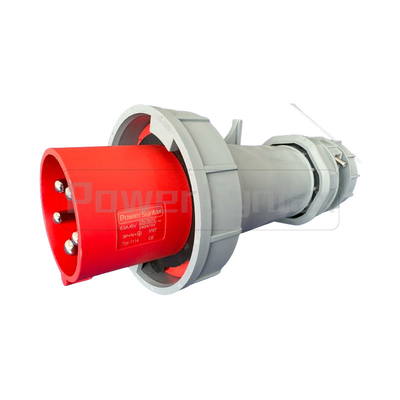

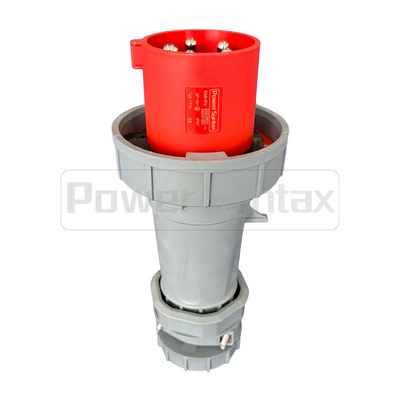

PowerSyntax 3P+N+E 63A IP67 440V Third Generation Industrial Plug Line Type Part No. 1114
| Current | Poles | 110V 50a.60Hz | 230V 50a.60Hz | 400V 50a.60Hz | 400-440V | 500V 50a.60Hz | >50-500V 100-300Hz | >50-500V a.300-500Hz | Inner Packing | Weight |
3P 4P 5P 4h 4h 4h | 3P 4P 5P 6h 9h 9h | 3P 4P 5P 9h 6h 6h | 4P 3h | 3P 4P 5P 7h 7h 7h | 3P 4P 5P 10h 10h 10h | 3P 4P 5P 2h 2h 2h | (pcs/box) | (g/pc) | ||
| 63A | 3P | 1570 | 1571 | 1572 | 5 | 708 | ||||
| 4P | 1108 | 1109 | 1110 | 1111 | 5 | 750 | ||||
| 5P | 1112 | 1113 | 1114 | 2958 | 5 | 806 |
| Current | Poles | a | b | c | d | e | f | g | |
| 63A | 3P | 238.9 | 179.5 | 51.1 | 69.5 | 113 | 75.5 | 36.5 | unit: mm |
| 4P | 238.9 | 179.5 | 51.1 | 69.5 | 113 | 75.5 | 36.5 | ||
| 5P | 238.9 | 179.5 | 51.1 | 69.5 | 113 | 75.5 | 36.5 | ||
| Terminal for conductor cross-sectional area (Min. to Max.): 10 - 16 mm2 | |||||||||
Dimension Drawing:
Specification:
The PowerSyntax CEE industrial cable mounting plugs are robust, reliable, ergonomically designed and easy to connect. Featuring open terminal screws all facing in the same direction, so the series of plugs are terminated quickly in the field. A rugged cable gland at the rear of the plug when tightened grips the cable and seals the gasket at the same time. Integral strain relief prevents cable kinking. Constructed from a heavy-duty Nylon 6 casing including nickel plated brass contacts with high heat resistant contact carriers supporting excellent corrosion resistance.
Features and Benefits:
• Rugged construction for added durability.
• Screw terminal connection. Open connection terminals all facing in the same direction enabling rapid wiring.
• Single part body.
• Cable gland and sealing. Tightening the cable gland activates the internal cable grip and automatically seals the gasket.
• Integrated cable strain relief, preventing the cable from kinking
• Highly heat resistant contact carrier with brass contacts, supporting corrosion resistance and abrasion.
PA6 / PA66 Material Performance:
Nylon 6 or Nylon 66 is a superior quality, toughened thermoplastic material with excellent characteristics. Making them virtually unbreakable. The key features:
• Abrasion resistant
• Self-extinguishing
• Heat resistant
• Resistant to cold temperatures
• Wear resistant
• Good electrical insulation
Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
