| Place of Origin: | China |
|---|---|
| Brand Name: | PowerSyntax |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 63A Extension Lead |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | 63A Extension Lead | Poles: | 5P |
|---|---|---|---|
| Rated Current: | 63 Amp | Rated Voltage: | 400 Volt |
| IP Rate: | IP67 Weather Resistance | Material: | PA |
| Earthing Position: | 6h | Cable Type: | H07RN-F 5G10.0 |
| Cable Size: | 10mm2 | Cable Length: | 10 Meters |
| High Light: | 63A extension lead,CEE extension lead,three phase cable lead |
||

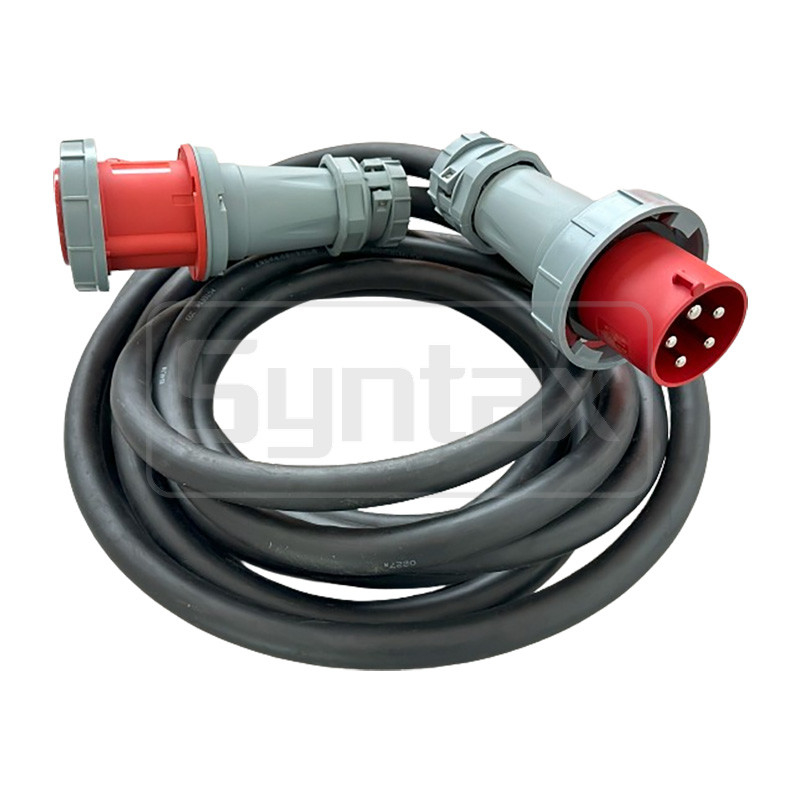

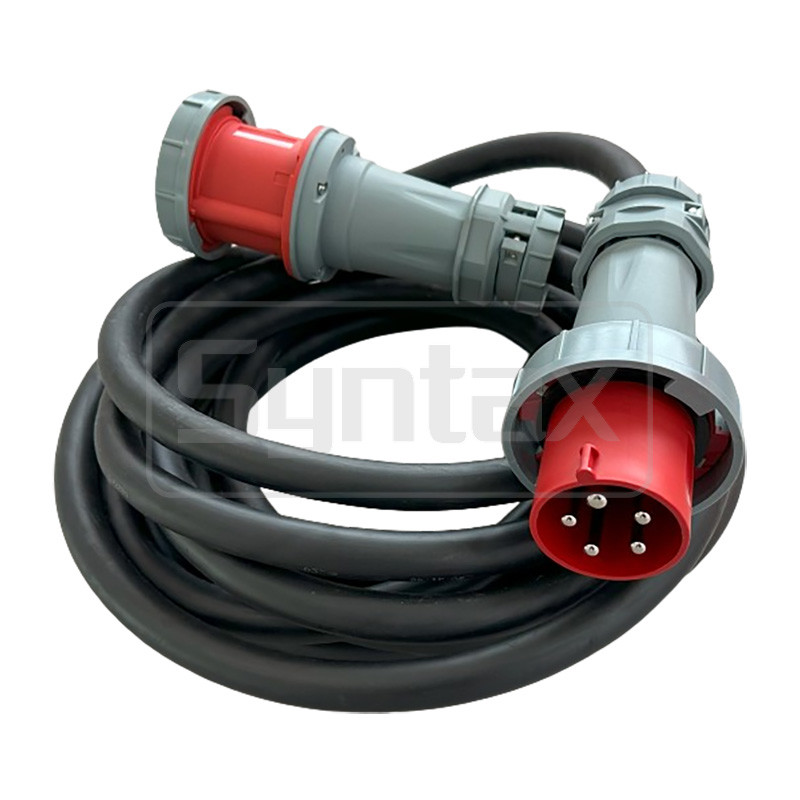

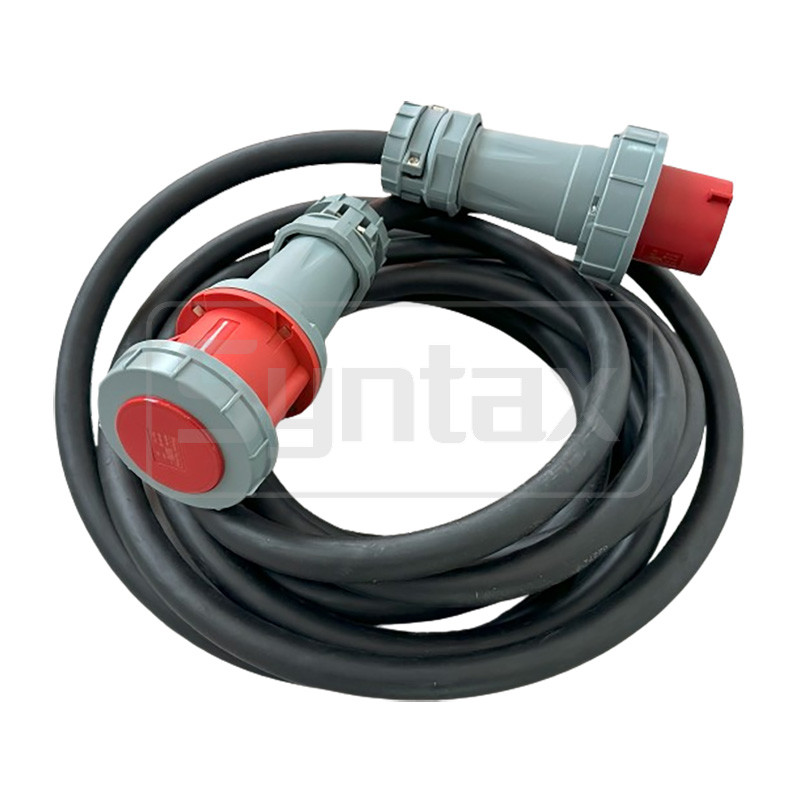

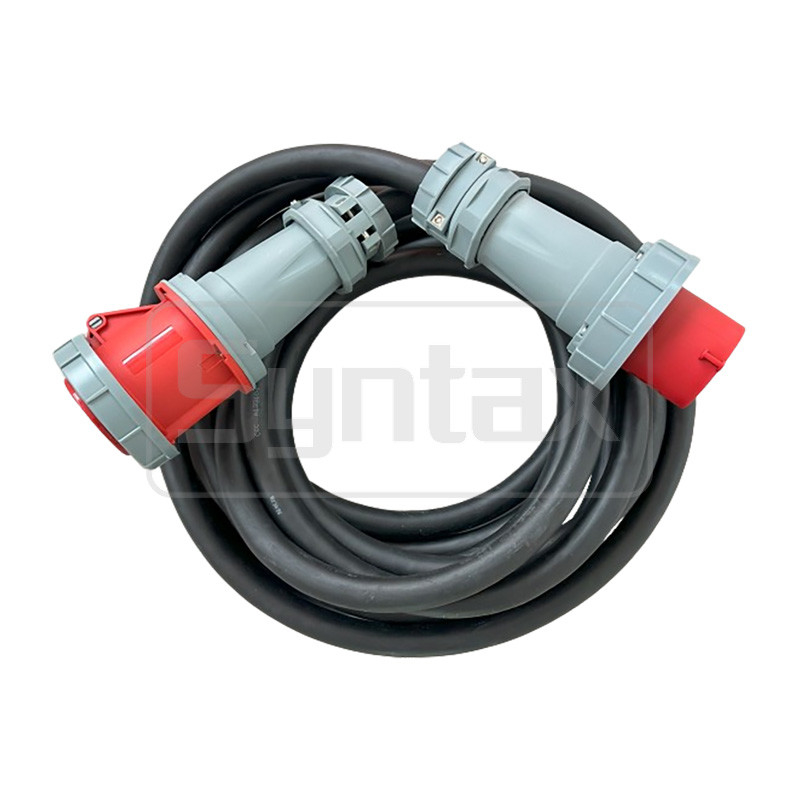

PowerSyntax 10m H07RN-F 5G10.0 CEE Extension Cable Lead 10mm2 Flexible 5-pole 63A With CEE Plug And Coupling For Outdoor
Features:
| Attribute | Value |
| Brand / Manufacturer | PowerSyntax |
| Manufacturer Part Number | 63A Extension Lead |
| Plug / Socket | Plug & Socket |
| Current Rating (Ampere) | 63A |
| Pole Format | 5P = 3P+N+E |
| Voltage Rating | 380V ~ 440V |
| IP Rating | IP67 |
| Mounting Type | Cable Mount |
| Clock Position | 6 h |
| Frequency (Hertz) | 50-60 Hz |
| Identification Color | Red |
| Cable Length | 10 Meters |
| Cable Type | YZ-5*10mm2 |
| Material of Plastic Housing | PA6 = Polyamide 6 = Nylon 6 |
| Material of Metal Contacts | Nickel Plated Brass |
| Maximum Operating Temperature | + 55°C |
| Minimum Operating Temperature | - 25°C |
| International Standard | EN/IEC 60309-2, DIN VDE 0623 |
| Other voltages and frequencies available on request. | |
Features and Benefits:
• With a 5-pin CEE plug and coupling with locking flap.
• Cable length: 10m.
• Suitable for tough outdoor use.
• Degree of protection: IP67.
• Cable designation: H07RN-F 5G10.0.
• Oil and UV- resistant.
Specification:
The PowerSyntax CEE extension cable with a rubber neoprene sheath is characterized by a robust and flexible design that is particularly resistant to external influences such as weather and mechanical stress.
Thanks to its IP67 protection rating, the extension cable is perfect for tough outdoor use.
The extension cable is equipped with a 5-pin CEE plug and a corresponding coupling with a locking flap.
PLEASE NOTE: Each current rating (16A, 32A, 63A etc) of extension lead has a different size plug & socket, therefore are NOT cross-compatible with each other. If you’re unsure which extension lead it is you require, please make sure to check the specifications of the device you're wanting to plug the lead into.
PA6 / PA66 Material Performance:
Nylon 6 or Nylon 66 is a superior quality, toughened thermoplastic material with excellent characteristics. Making them virtually unbreakable. The key features:
• Abrasion resistant
• Self-extinguishing
• Heat resistant
• Resistant to cold temperatures
• Wear resistant
• Good electrical insulation
Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
