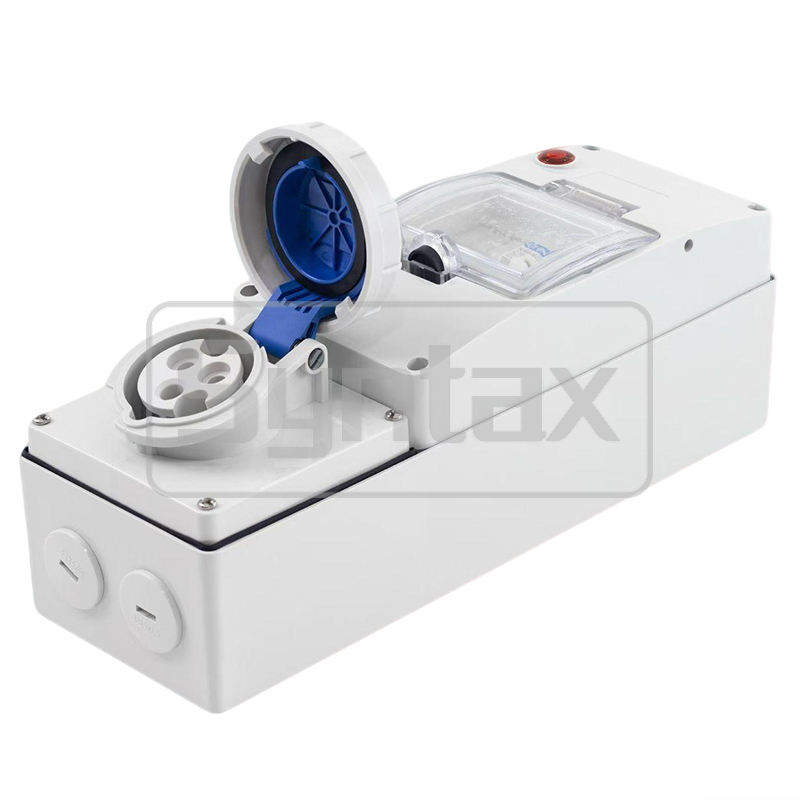

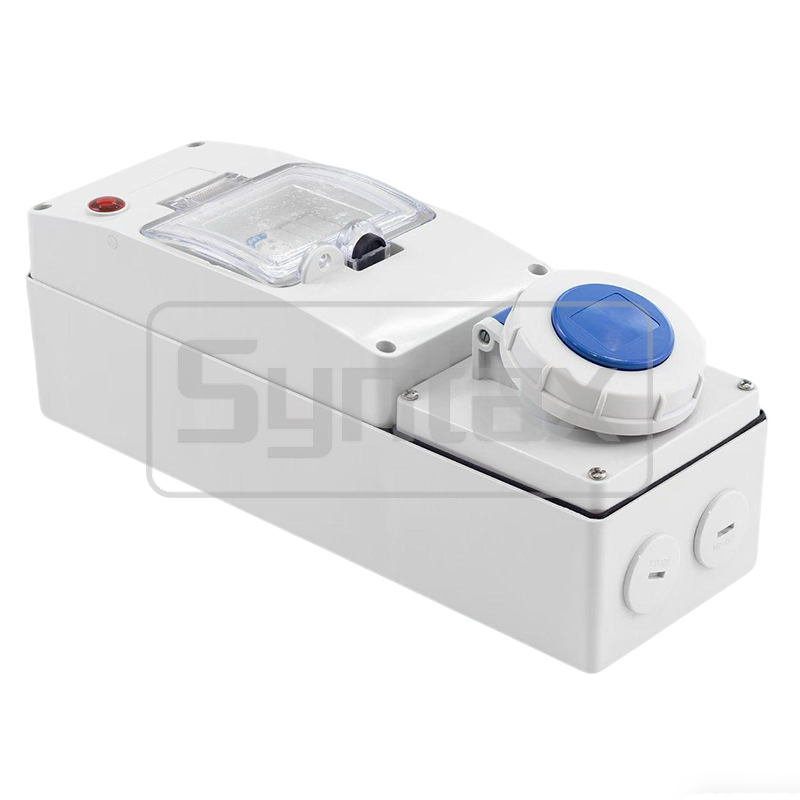

Syntax UBM316 Single Phase 16A/3P 220v Industrial Socket Outlet Box IP66 Waterproof Supply Box 101*294*135mm

Syntax UBM316 Single Phase 16A/3P 220v Industrial Socket Outlet Box IP66 Waterproof Supply Box 101*294*135mm

Technical Parameters:

Diagram Drawing:

Dimension Drawing:

Features and Benefits:

• Design based on EN 61439-4.

• Waterproof and Shockproof design, IP rating up to IP65 ingress protection.

• Color: Electric Grey. Other colors can be customized.

• Material: PC (Polycarbonate Resin, the best material of plastic).

• Operating Temperature:-20℃～+75℃.

• Dimension: 260mm*170mm*140mm.

• MCB/RCD/RCBO protection.

• Require no additional wiring

• Cable entry from top or bottom

• A selection of the units have been manufactured with space to allow future modifications

• Units can be installed as fixed or portable, and relevant units can be adapted to facilitate a lockable front cover

• Individual segregation of outlets

• IP67 Industrial Socket

The Advantages of Our Distribution Boxes:

• Quick assembly/dismantling.

• Safe connections.

• Reliable in operation.

• Re-usability of all components.

• Suitable for indoor or outdoor use.

• Robust distributor.

• Easy handling of distribution boxes and of the entire system.

• 24 Months Warranty on all Parts and Manufacturing Defects.

Specification:

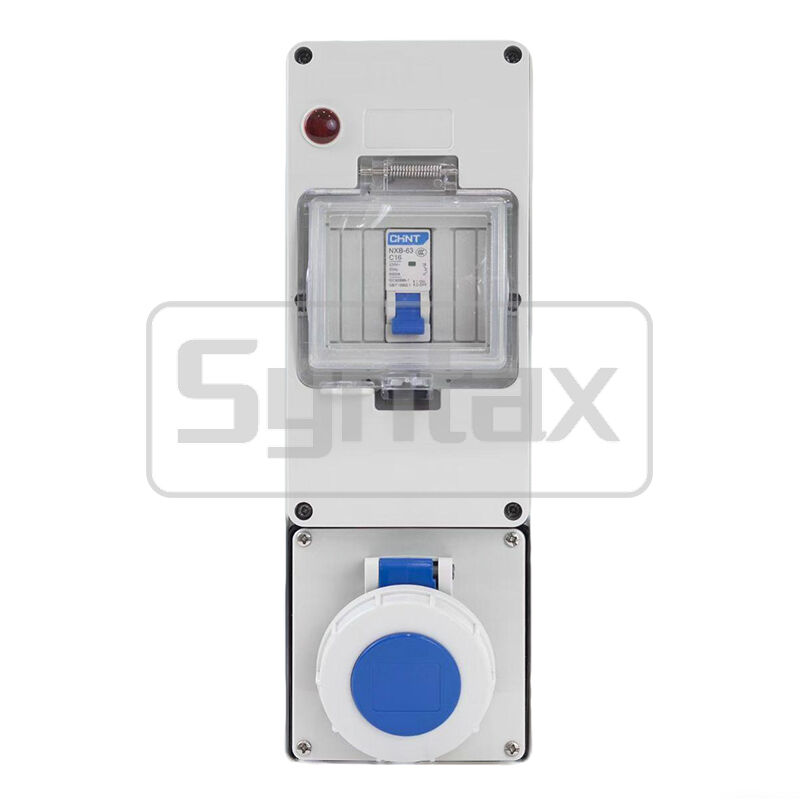

The pre-wired combination units are with one IEC/CEE socket on the front. Ample connection space. Incoming cable in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. This outlet box with MCB 1P 16A, with a 3P 16A panel mounted angled socket IP67. And other rated current sockets are also available for this type of outlet box, such as 4P 16A, 5P 16A, 3P 32A, 4P 32A and 5P 32A. And the protection can be optional for MCB, RCD, or RCBO as your requirement.

Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!

Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.

The UBM series wall mounted pre-wired combination units consist of pre-wired combination units designed for robust electrical distribution, suitable for a variety of demanding environments. These robust, waterproof distribution boxes are ideal for industrial settings, construction sites, outdoor events, and any location requiring a secure, reliable, and easily customized electrical power outlet with integrated protection.

Space Saving Modular Design allows multiple-tier, stacked use and storage.

Protection degree up to IP66 for weather resistance to rain, sleet, snow and external formation of ice on the box.

PA6 / PA66 Material Performance:
Nylon 6 or Nylon 66 is a superior quality, toughened thermoplastic material with excellent characteristics. Making them virtually unbreakable. The key features:
• Abrasion resistant
• Self-extinguishing
• Heat resistant
• Resistant to cold temperatures
• Wear resistant
• Good electrical insulation

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
