Pagoda Electrical Distribution Box With Customized Industrial Inlet Receptacle

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MK2
Minimum Order Quantity: 10 sets
Packaging Details: Packed by paper carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 units / month
Detail Information
Material: PE Rated Frequency: 50Hz
Protection Degree: IP66 Waterproof UV Protection: UV8 Resistance
Dimension: 420*420*540mm (L*W*H) Color: Orange Or Black
Highlight:

power spider box

,

event power distribution


Product Description

48 Ways IP66 Pagoda Portable Power Distribution Box in Black with Customized Industrial inlet and Receptacle



Specification



Input Output Circuit Breaker
1 * 125A / 415V supply inlet 1 * 63A / 415V socket outlet 1 * 63A MCB
  1 * 32A / 415V socket outlet 1 * 32A MCB
  3 * 32A / 230V socket outlets 3 * 32A RCBO
  9 * 16A / 230V socket outlets 9 * 16A RCBO
  • All the socket outlets are protected by MCB
  • 230 volt electronic type RCBO
  • with copper earthing terminal



MK2 Movable Distribution Box



The MK2 Power Distribution Units may be powered from a generator, a panel or a larger distribution box. This distribution box can be used at outdoor events to provide power electric safely.



Markets Served



Shipyards, Emergency/Disaster Relief, Construction Outdoor Events, Concert Touring, Entertainment

Application

Provides a main disconnect and overcurrent protection for portable power distribution systems. The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes.



Features & Benefits



  • Adjustable trip setting allows the box to protect a variety of systems with different cable sizes
  • Adjustable electronic circuit breaker will not nuisance trip due to high ambient temperatures
  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted under hinged lid for enhanced protection
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level



Product Pictures

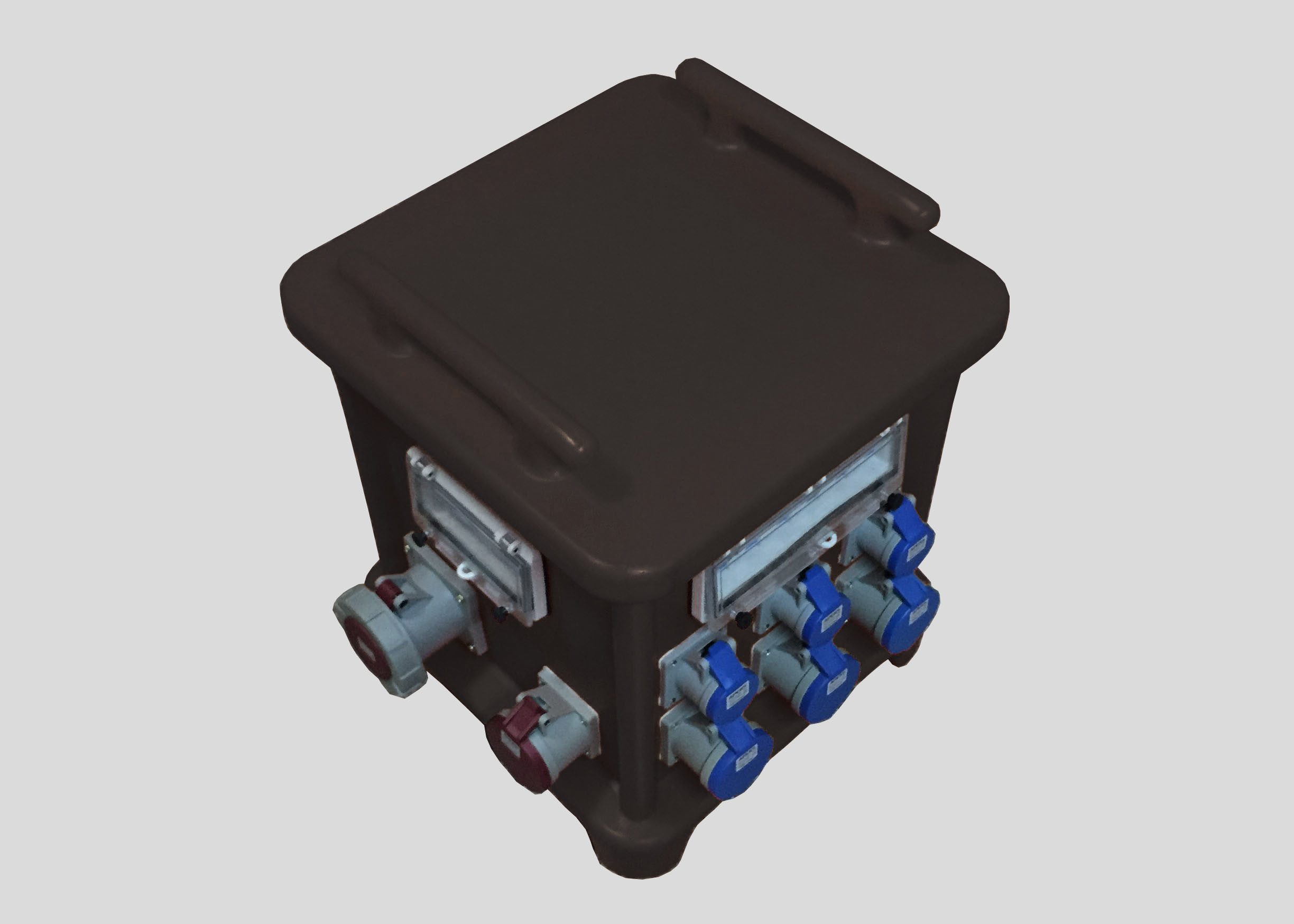

Pagoda Electrical Distribution Box With Customized Industrial Inlet Receptacle 0
