Waterproof Electrical Power Distribution Box High Strength Material

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP12
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: PE Color: Yellow
Weight: 9kgs Dimension: 30*28.7*23cm
Overcurrent Protection: Yes Waterproof Degree: IP66
High Light:

electric spider box

,

power spider box


Product Description

12 Poles Waterproof Moving Distribution System Yellow Portable Power Enclosure With Customized Industrial Socket Switch



Application



The new mobile receptacle combinations are available in a variety of assembly fittings. The robust, stackable insulating enclosure are ideally suited for indoor and outdoor use.



Markets Served



  • Film Shooting Place
  • man camps
  • emergency services
  • work trailers





Specification

Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply panel mounted plug  1 * 63A / 415V 5 pins IP67  CEE panel mounted socket  1 * 4P 63A 30mA RCD
   1 * 32A / 415V 5 pins IP67  CEE panel mounted socket  1 * 3P 63A MCB
   2 * 16A / 415V 5 pins IP67  CEE panel mounted socket  1 * 3P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE panel mounted socket  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB



  • All electrical components like MCB, RCD, RCBO, industrial plugs, industrial sockets can be customized.



Product Pictures

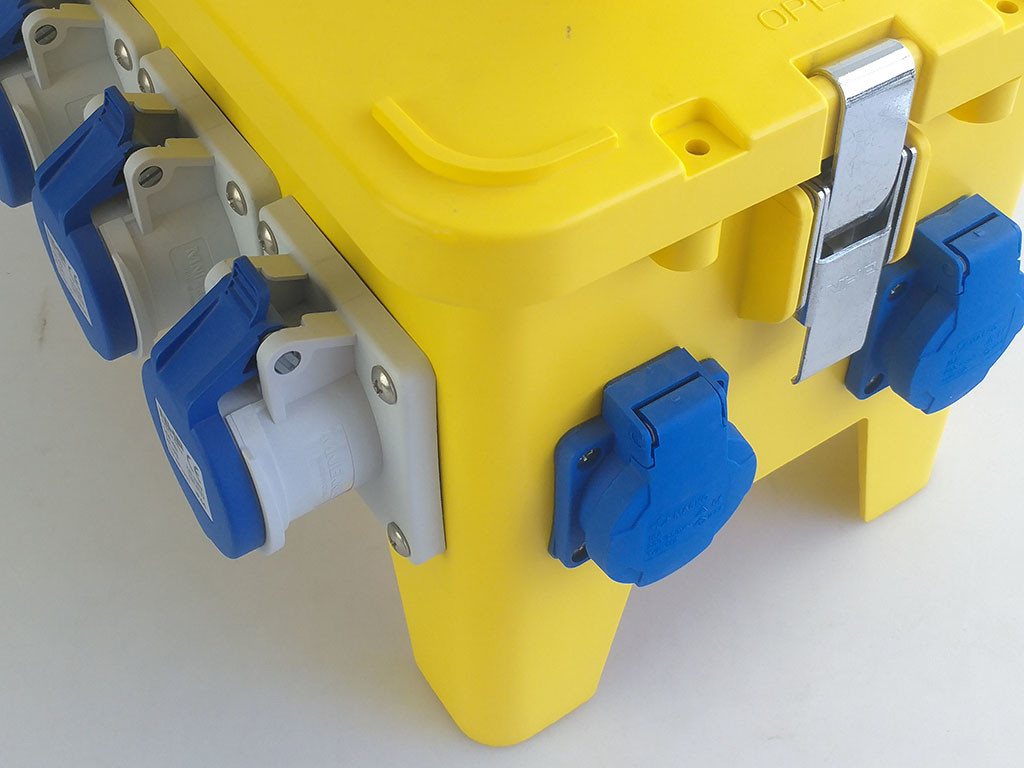

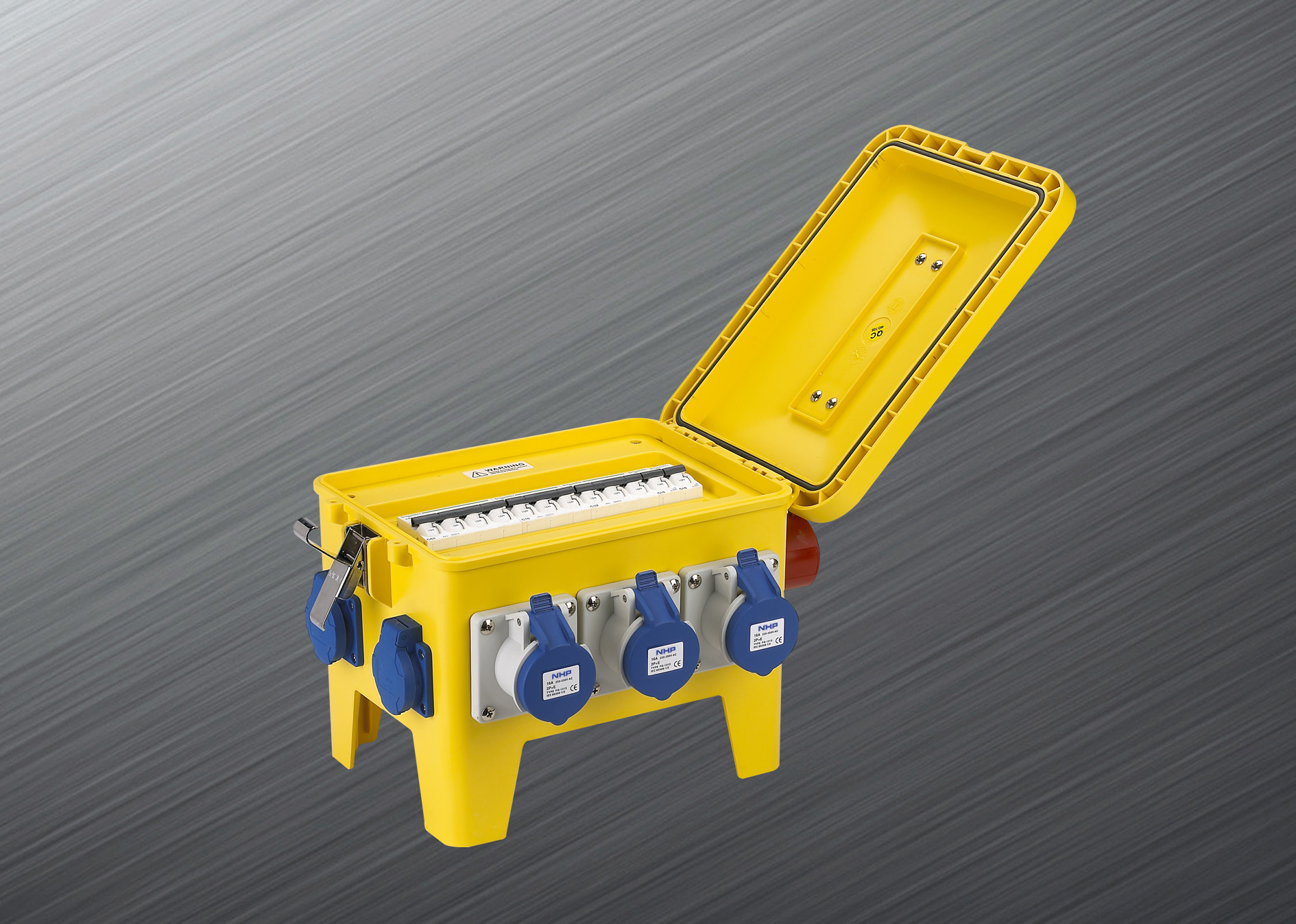

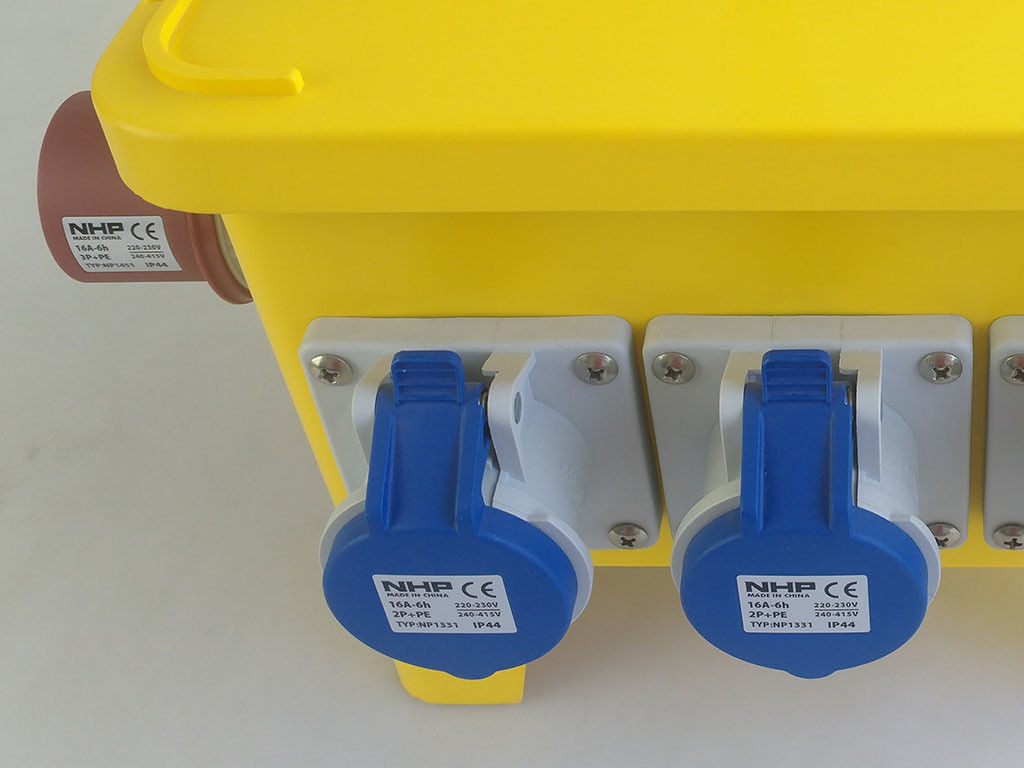

Waterproof Electrical Power Distribution Box High Strength Material 0

Waterproof Electrical Power Distribution Box High Strength Material 1
