IP67 Waterproof Spider Box Power Distribution For Flexible Current Supply

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Rubber Voltage: 220 Volts
Ampere: 125 Amps Herz: 50/60 Hz
Protection Grade: IP 66 Weather Resistant Dimension: 37*34*33Cm
High Light:

stage power distribution box

,

portable power outlet box


Product Description

36 ways IP67 Waterproof Heavy-duty Rubber Movable Power Distribution Box Yellow PowerHOUSE with Overcurrent Protection



Application



Our Power House Tool units are self contained, portable load centers, mounted with a transformer to step down high voltages into RCD-protected 120/240 volt power sources.



Features & Benefits



  • Distribution boxes for flexible current supply, portable and handy
  • Meets the standards for open-neutral socket protection for enhanced safety
  • Compact design will save space while in use and allow for easier transportation when stowed
  • The ability to adjust a circuit breaker's trip rating to closely match a specific load ensures that the circuit breaker will trip when needed. This is useful in overload or short circuit situations.



Markets Served



  • Live Events
  • Industrial
  • Concert Touring
  • Outdoor Events



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5pins IP67  CEE Receptacles  1 * 4P 63A 30mA RCD
   1 * 32A / 415V 5 pins IP67  CEE Receptacles  1 * 3P 63A MCB
   2 * 16A / 415V 5pins IP67  CEE Receptacles  1 * 3P32A MCB
   2 * 16A / 415V 3pins IP67  CEE Receptacles  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB



Product Pictures

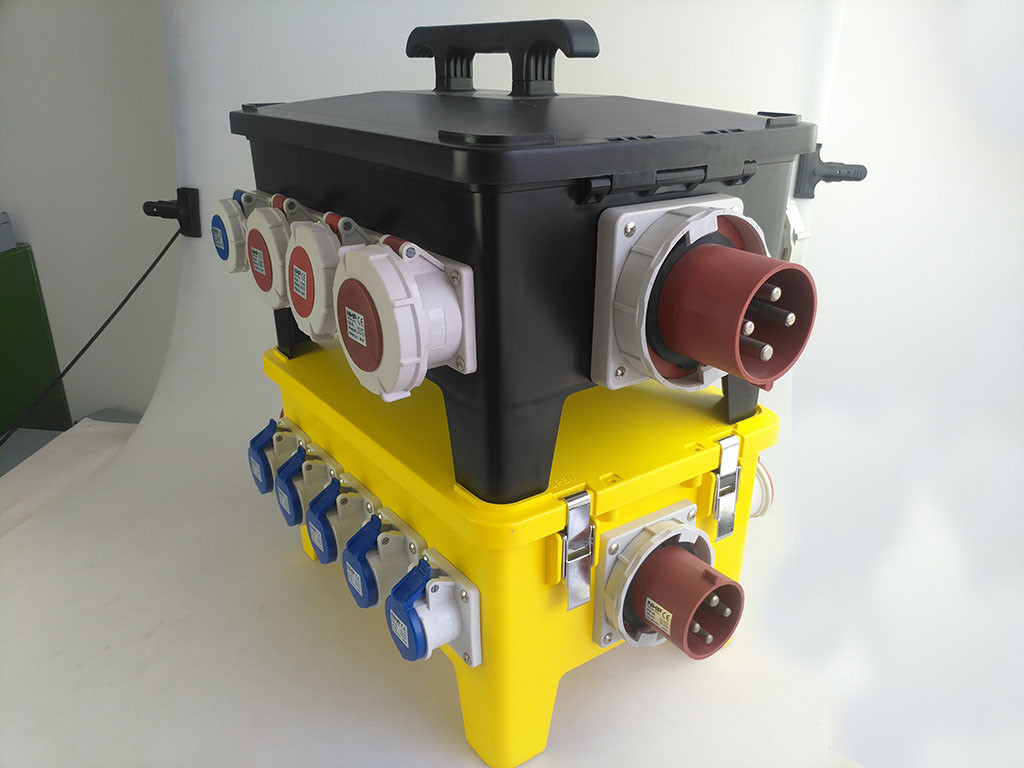

IP67 Waterproof Spider Box Power Distribution For Flexible Current Supply 0

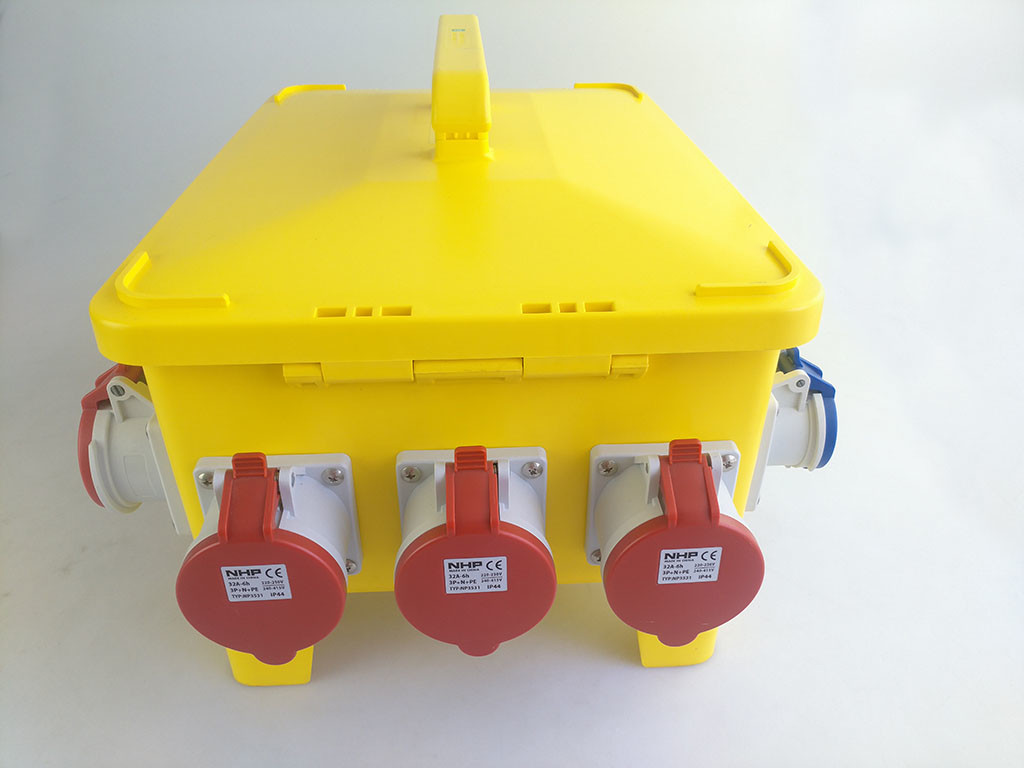

IP67 Waterproof Spider Box Power Distribution For Flexible Current Supply 1
