| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP36 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton with pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | PE | Poles: | 36 Ways |
|---|---|---|---|
| Rated Voltage: | 220/380 Volts | Rated Current: | 125 Amps |
| Protection Degree: | IP66 Watertight | Color: | Yellow |
| High Light: | construction spider box,stage power distribution box |
||

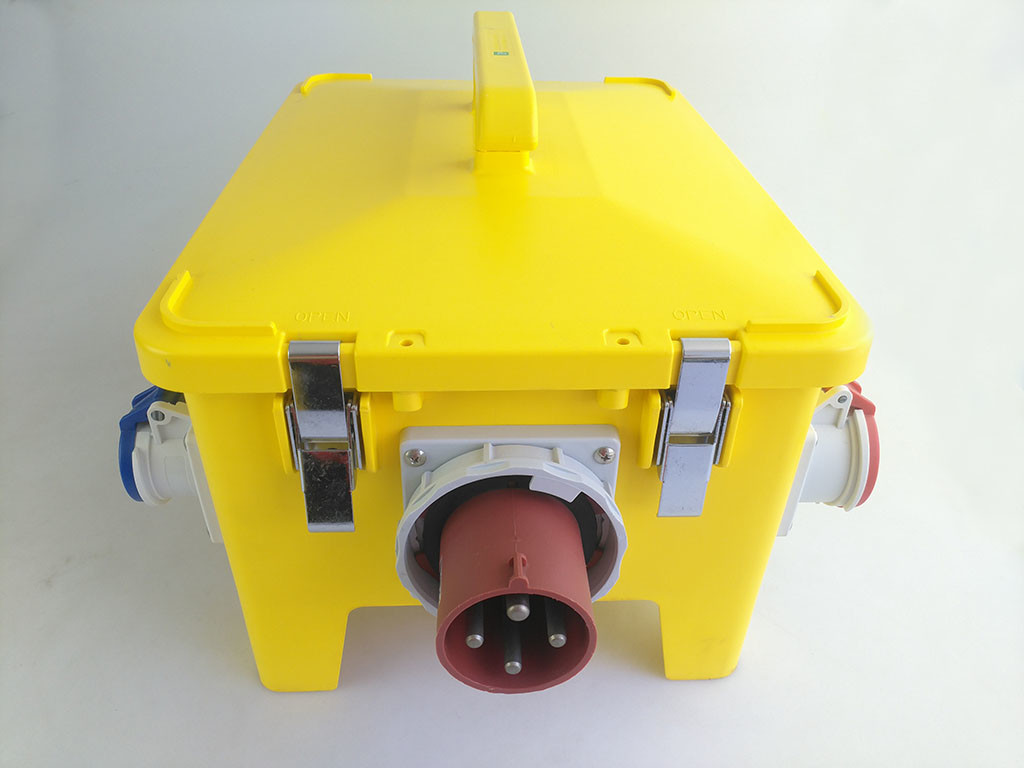

36Ways IP66 Watertight Impact Resistant Mobile Enclosure Yellow Splitter Box with Industrial Plugs and Sockets
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply surface mounted plug | 1 * 63A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 4P 63A 30mA RCD |
| 1 * 32A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 3P 63A MCB | |
| 2 * 16A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 3P 32A MCB | |
| 2 * 16A / 415V 3 pins IP67 CEE flush mouted socket | 2 * 3P 16A MCB | |
| 4 * 16A / 230V SCHUKO socket outlets | 6 * 1P 16A MCB |
The new doghouse (portable distribution system) is ideal for tradeshow and exhibitions where a large number of convenience receptacles are needed over a wide area. The feed thru feature allows multiple boxes to be placed along one feed so that receptacles can be easily placed wherever needed. Doghouses are also popular in live event and audio applications where multiple amplifiers, speakers and other audio components require power while positioned on a stage or other venues.

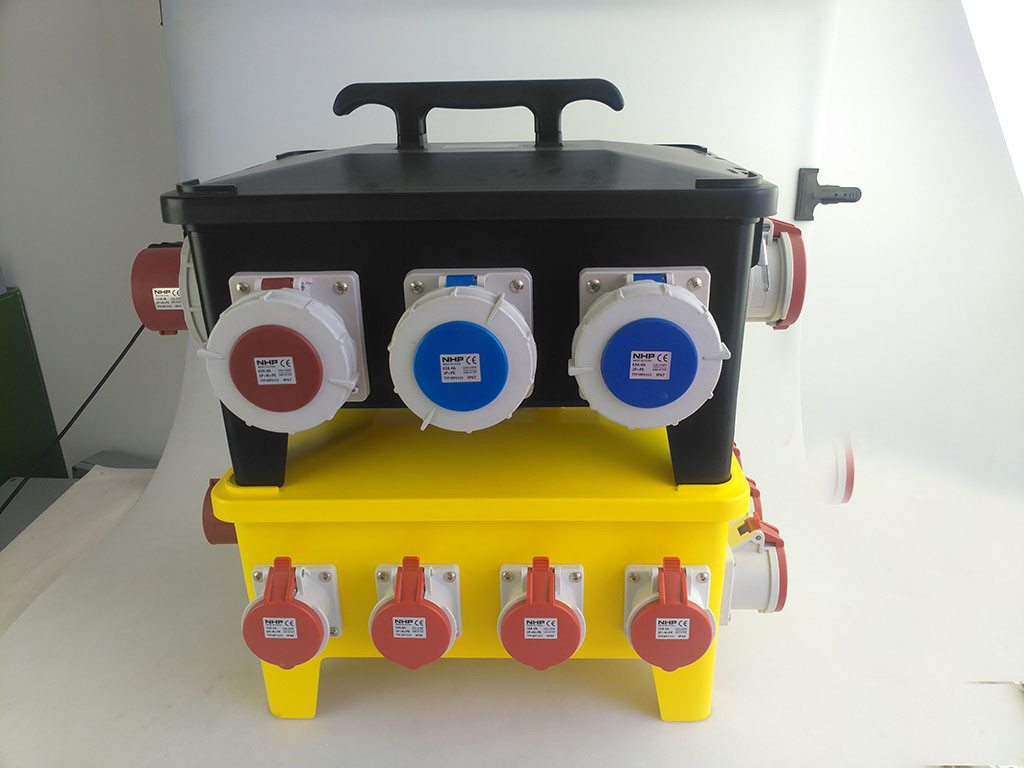

Product Pictures
