Light Three Phase Distribution Box , Over Current Protection Electrical Spider Box

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Strong PE Frequency: 50-60 Hz
Rated Voltage: 220-230V / 380-415V Rated Current: 125 Amps
Protection Degree: IP66 Rain Resistant Product Size: 370*340*330MM
High Light:

construction spider box

,

stage power distribution box


Product Description

36 Poles IP 66 Watertight PE Power Distribution Equipment Yellow Power Panels with Over Current Protection



Application



The Power Distribution Equipment features: IEC Compliant, and certified to CE. Reduces electrical hookup and labor time. 8 overload-protected outlets use GFCI and circuit-breakers.



Features & Benefits



  • Easy for connection to lighting and other equipment
  • Improved Cable Management
  • Weather resistant socket helps to prevent unsafe operating conditions and nuisance tripping
    Locking receptacles provide secure connections that prevent accidental separation
  • Hydraulic magnetic circuit breakers provide overcurrent protection that will not trip due to ambient temperatures



Markets Served



  • Audio Entertainment
  • Maintenance
  • Coal mines
  • ports



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5 pins IP67  CEE flush mouted socket  1 * 4P 63A 30mA RCD
 7 meters 5*10mm2 cable  1 * 32A / 415V 5pins IP67  CEE flush mouted socket  1 * 3P63A MCB
   2 * 16A / 415V 5pins IP67  CEE flush mouted socket  1 * 3P32A MCB
   2 * 16A / 415V 3pins IP67  CEE flush mouted socket  2 * 3P16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB



Product Pictures

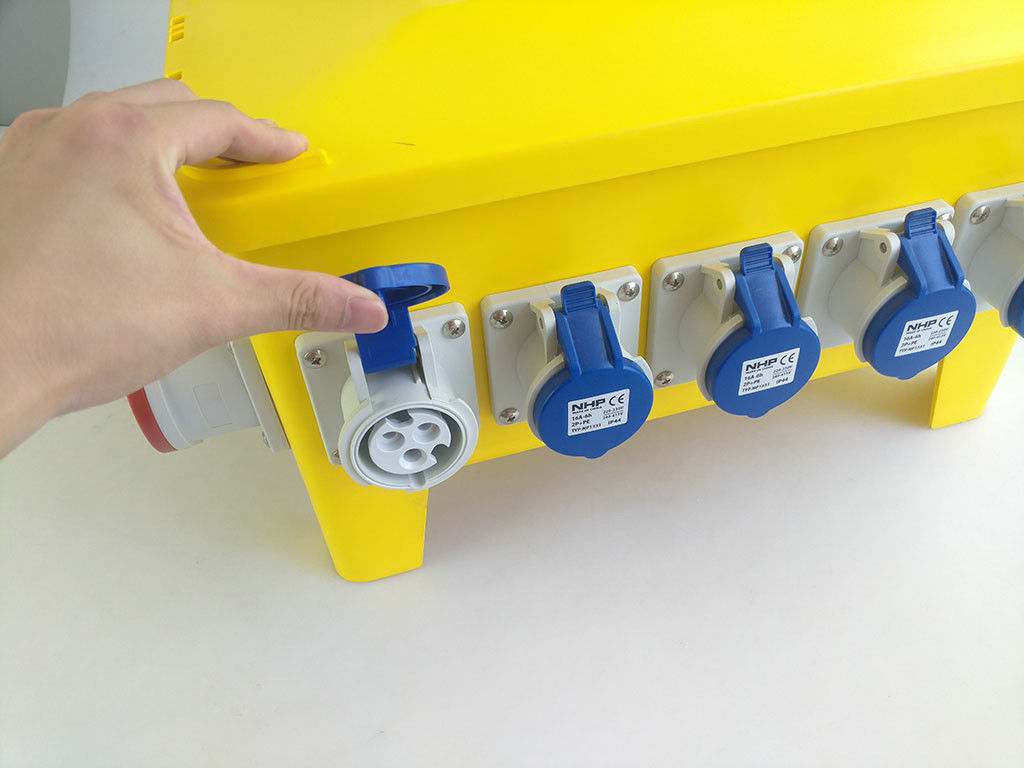

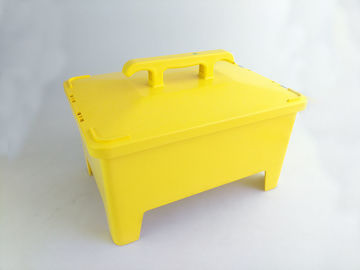

Light Three Phase Distribution Box , Over Current Protection Electrical Spider Box 0

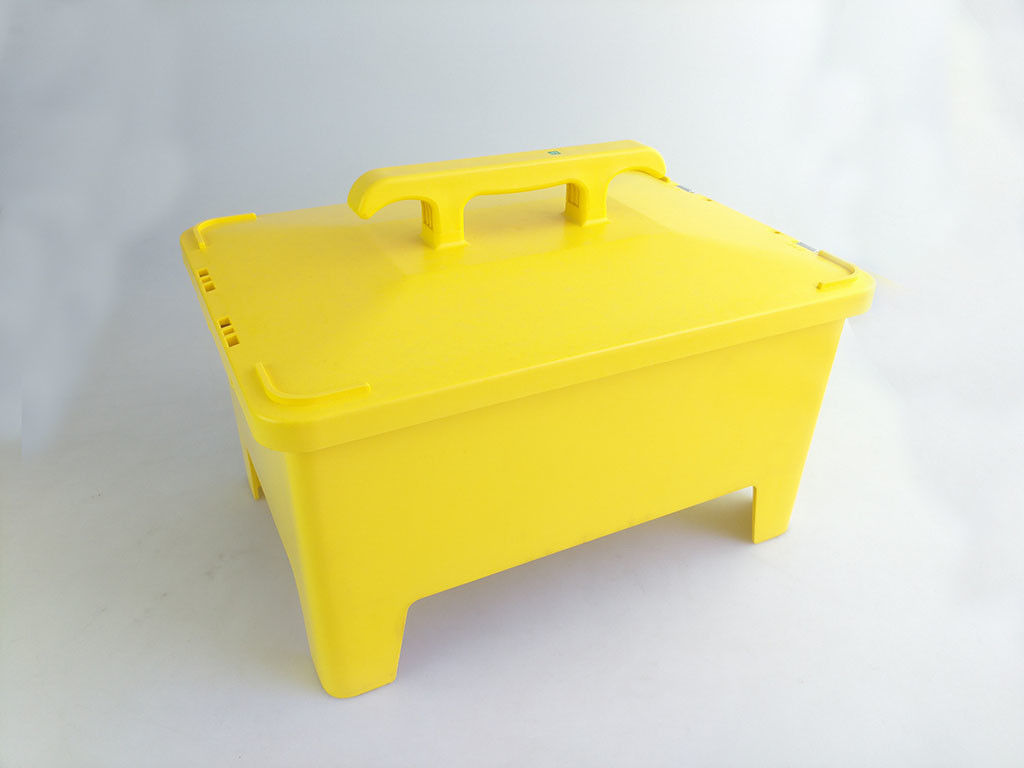

Light Three Phase Distribution Box , Over Current Protection Electrical Spider Box 1
