Electrical Mobile Power Distribution Box 37 0* 340 * 330 MM Dimension

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene Dimension: 370*340*330 MM
Rated Voltage: 220-230 Volts Rated Ampere: 125 Amp
Herz: 50-60 Hz Protection Degree: IP 66 Weather Protect
High Light:

stage power distribution box

,

portable power outlet box


Product Description

36Ways IP 66 Waterproof PE Power Distribution System Yellow Electrical Distributor with Overcurrent Protection



Application



The Power Distribution System can be used in any situation where a more compact, easier-to-handle unit is desired to safely expand and distribute power on jobsites. You can find only the best internal components in these products and the satisfaction back by a team of electrical & mechanical engineers dedicated to provide you with live support.



Features & Benefits



  • Unit is one man portable; no forklift needed
  • Elevated base keeps receptacles above ground level.
  • All MCB, RCD, industrial plug and socket are fine connected
  • USB Convenience Power Outlets – specific models



Markets Served



  • airport
  • public buildings
  • Industrial
  • Film Shooting Place



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5pins IP67  CEE Receptacles  1 * 4P63A 30mA RCD
   1 * 32A / 415V 5 pins IP67  CEE Receptacles  1 * 3P 63A MCB
   2 * 16A / 415V 5pins IP67  CEE Receptacles  1 * 3P32A MCB
   2 * 16A / 415V 3pins IP67  CEE Receptacles  2 * 3P16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB



Product Pictures

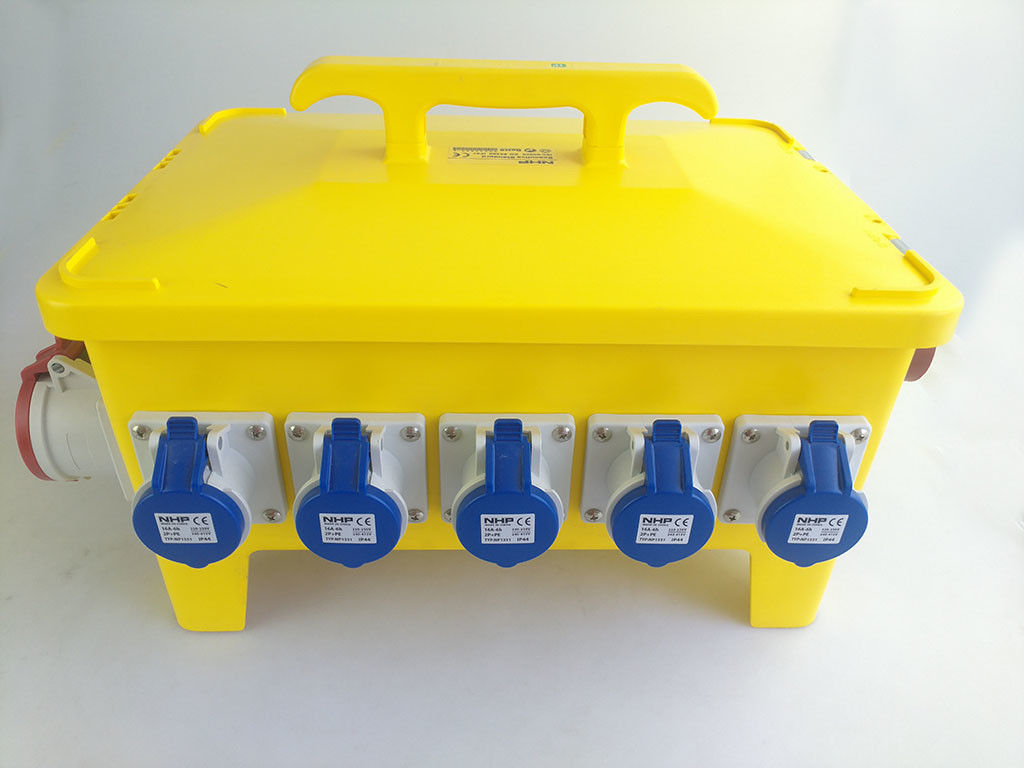

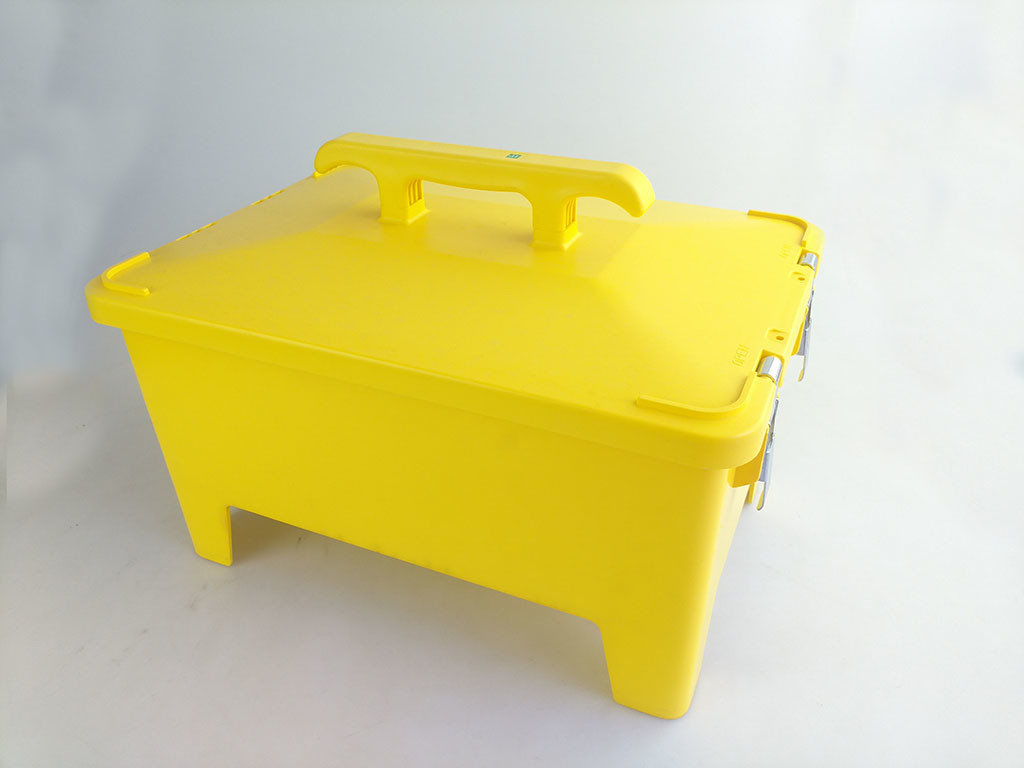

Electrical Mobile Power Distribution Box 37 0* 340 * 330 MM Dimension 0

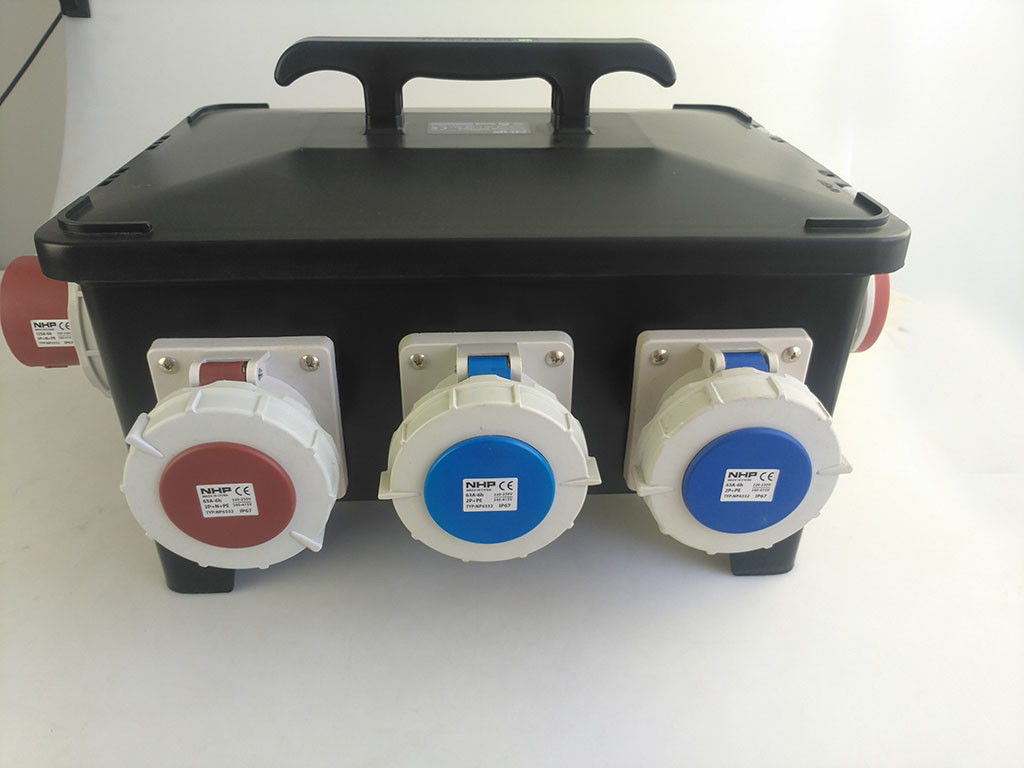

Electrical Mobile Power Distribution Box 37 0* 340 * 330 MM Dimension 1
