| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP36 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton with pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | Polyethylene Strong Plastic | Poles: | 36ways |
|---|---|---|---|
| Rated Voltage: | 380-415V | Rated Current: | 125Amps |
| Frequency: | 50-60Hz | Protection Degree: | IP 66 Weather Resistance |
| High Light: | stage power distribution box,portable power outlet box |
||
36 Ways IP66 Weather Resistant PE Portable Industrial Socket Box Yellow Distribution System with RCD Protection
Our Mobile Distribution Board provides more compact and less costly work-site power distribution center than other full size models. Used along with our restoration adapters, these units are ideal for disaster restoration work where the only available power is from range outlets, dryer outlets, or portable generators.
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply surface mounted plug | 1 * 63A / 415V 5pins IP67 CEE flush mouted socket | 1 * 4P63A 30mA RCD |
| 6.5 meters 5*10mm2 cable | 1 * 32A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 3P 63A MCB |
| 2 * 16A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 3P32A MCB | |
| 2 * 16A / 415V 3pins IP67 CEE flush mouted socket | 2 * 3P 16A MCB | |
| 4 * 16A / 230V SCHUKO socket outlets | 6 * 1P 16A MCB |

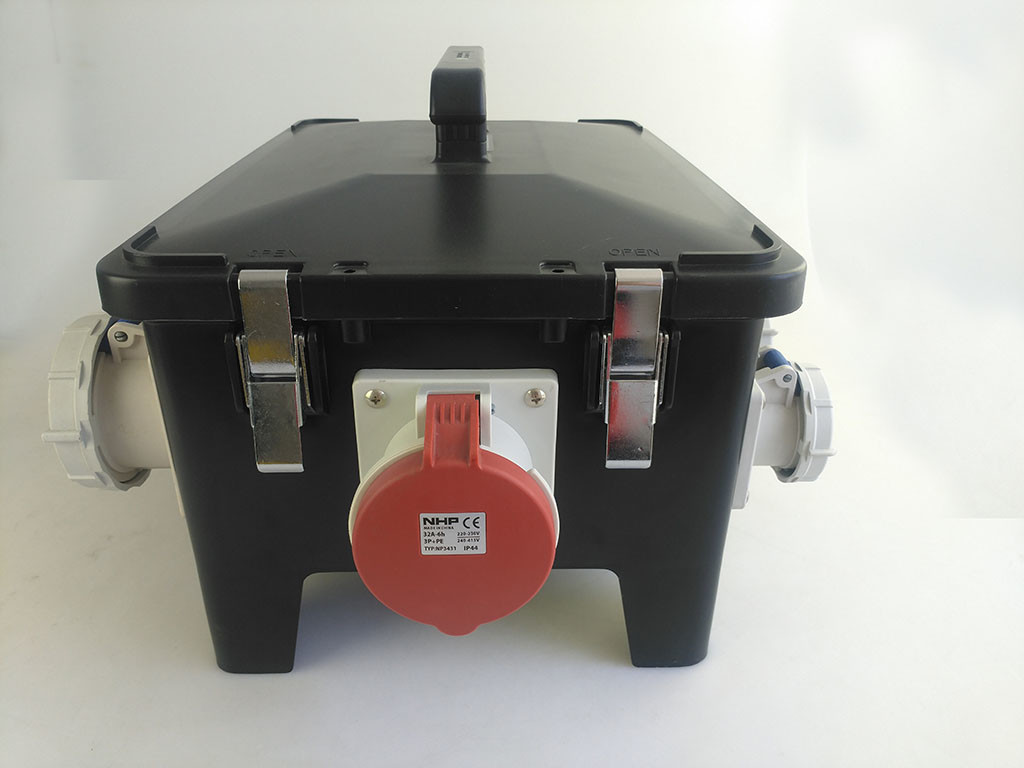

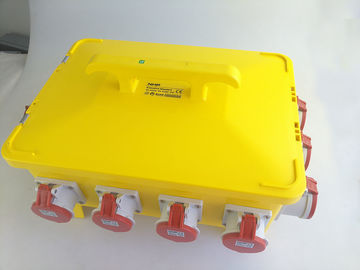

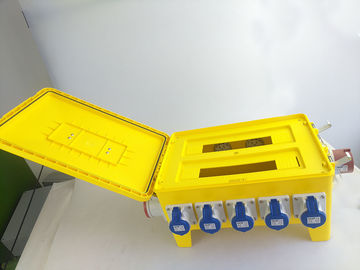

Product Pictures
