Material: | PE | Poles: | 36 Ways |
---|---|---|---|
Rated Voltage: | 415 Volts | Rated Current: | 125 Amps |
Frequency: | 50/60 Hz | Protection Degree: | IP 66 Waterproof |
Highlight: | construction spider box,stage power distribution box |
36 Ways IP66 Weather Resistance PE Customized Power Distribution Yellow Electrical Box with Industrial Plugs and Sockets
Choose from three standard 50A Distribution Boxes. Enclosures are rated for indoor/ outdoor use, Nema 3R designed for industrial and harsh environments. The 50A 125/250V California Style Twist-Lock can connect to any portable generator direct or via primary distribution panel.
Input | Output | Circuit Breaker |
1 * 63A / 415V 5 pins CEE supply surface mounted plug | 1 * 63A / 415V 5P IP67 CEE Receptacles | 1 * 4P63A 30mA RCD |
1 * 32A / 415V 5P IP67 CEE Receptacles | 1 * 3P63A MCB | |
2 * 16A / 415V 5 pins IP67 CEE Receptacles | 1 * 3P 32A MCB | |
2 * 16A / 415V 3 pins IP67 CEE Receptacles | 2 * 3P 16A MCB | |
4 * 16A / 230V SCHUKO socket outlets | 6 * 1P 16A MCB |

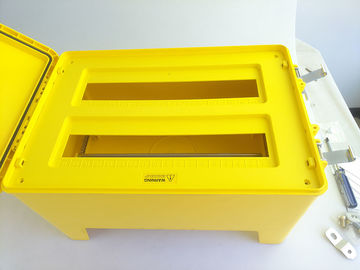

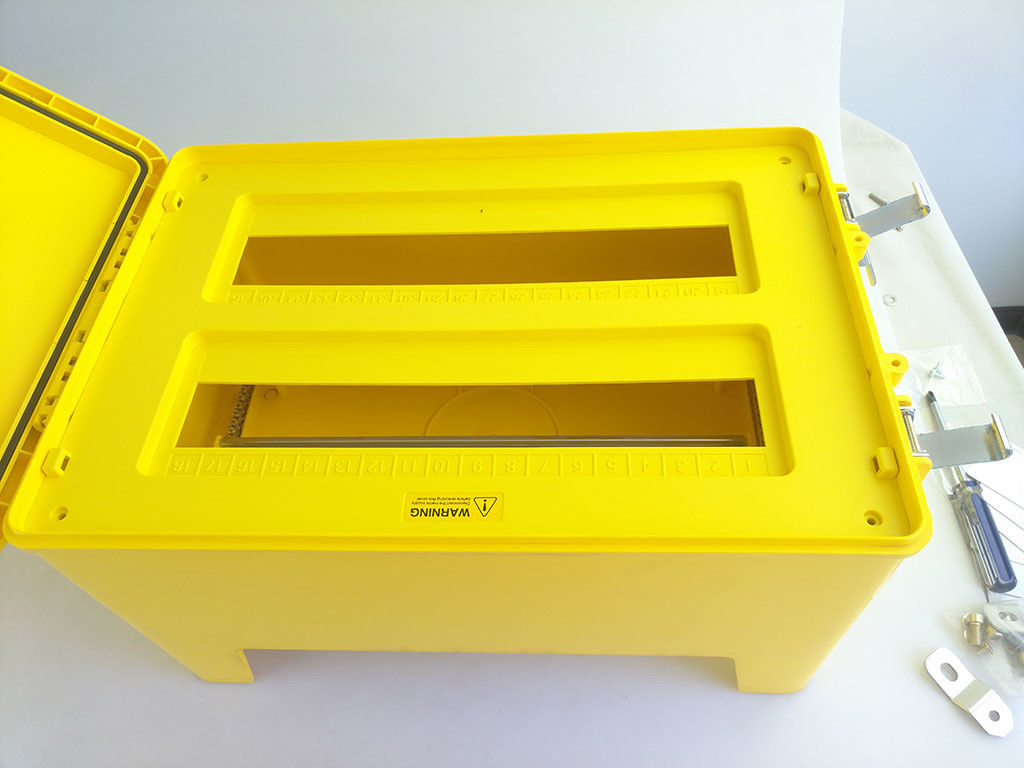

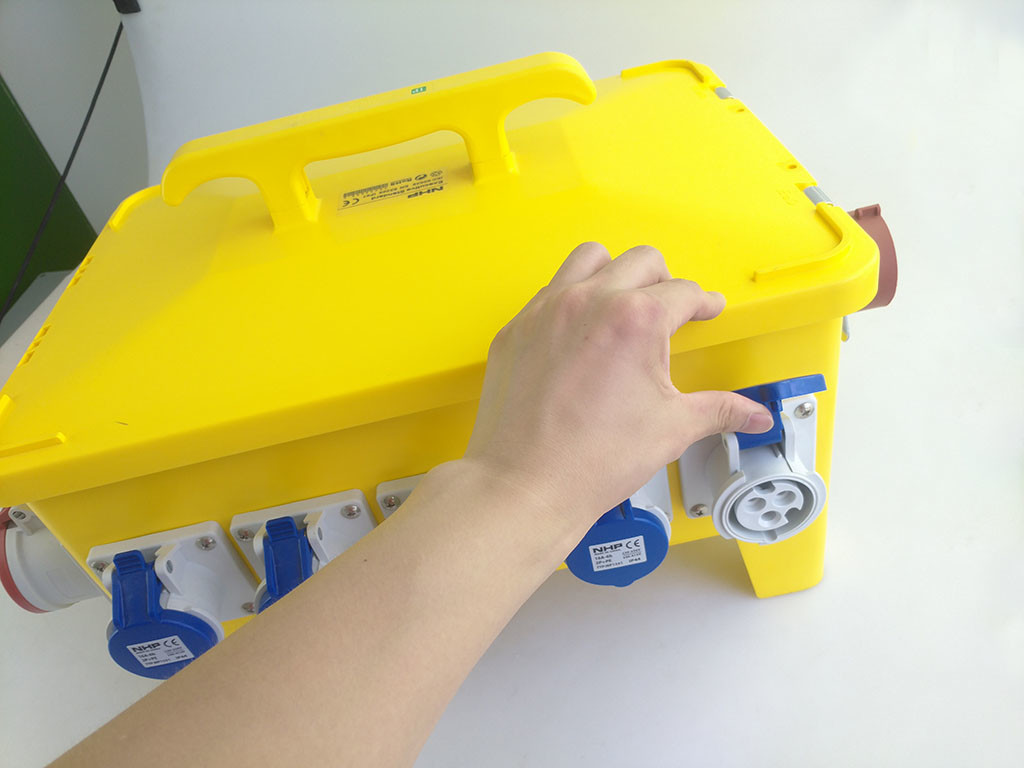

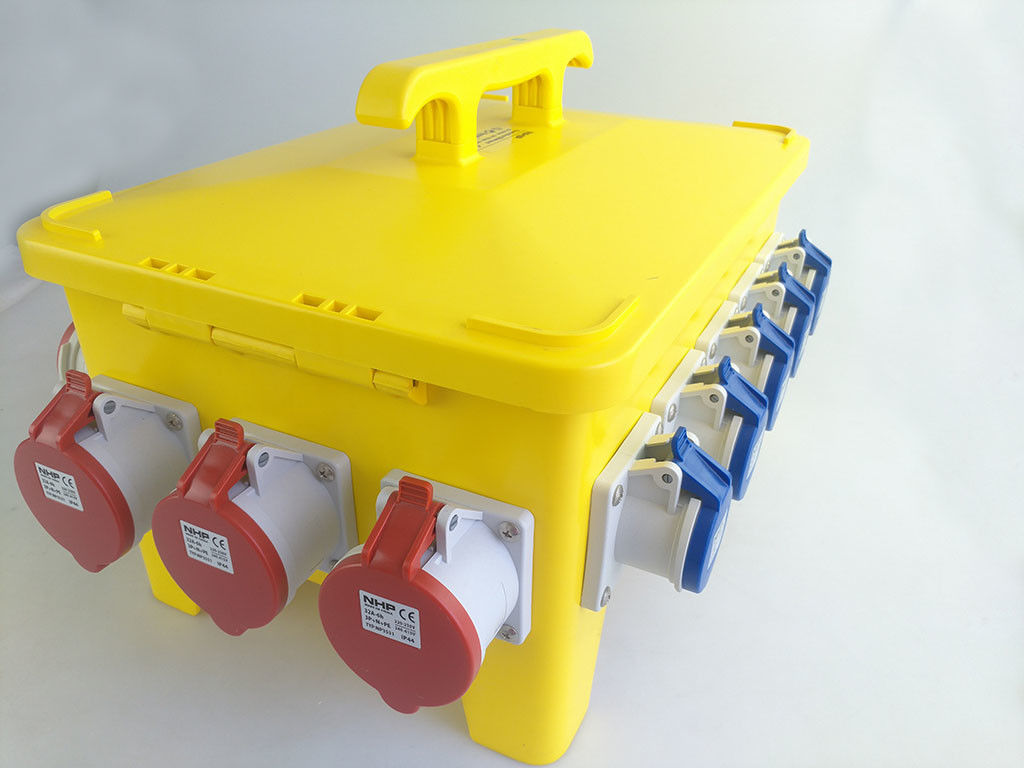

Product Pictures
