| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 216 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Receptacle | Poles: | 5 P |
|---|---|---|---|
| Current & Voltage: | 125Amps 400Volts | Frequency: | 50-60 Hz |
| Earth Position: | 6 H | Contact: | Standard |
| Highlight: | plug and socket connectors,waterproof electrical plugs and sockets |
||
5P 125A IP67 Weather Resistant Panel Mount Receptacle Industrial Socket Inclination with Cover part no. 216
Description:
Our Company is highly instrumental in offering the best quality Receptacles to our valuable customers. Owing to their dimensional accuracy and long service life, these products are highly demanded by the customers. Manufactured using ultra-modern machines, we offered these products in different size and specifications. Apart from this, these products are used in 16 Amp - 125 Amp, Single Phase or Three Phase.
Part no. 216
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 125A | 3 | 3575 | 5 | 975 | ||||||
| 4 | 210 | 211 | 212 | 213 | 5 | 1028 | ||||
| 5 | 214 | 215 | 216 | 5 | 1076 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l 1 | α | |
| 125A | 3 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | |
| 4 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | ||
| 5 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 25-35 | ||||||||||||||||
Product Dimension:

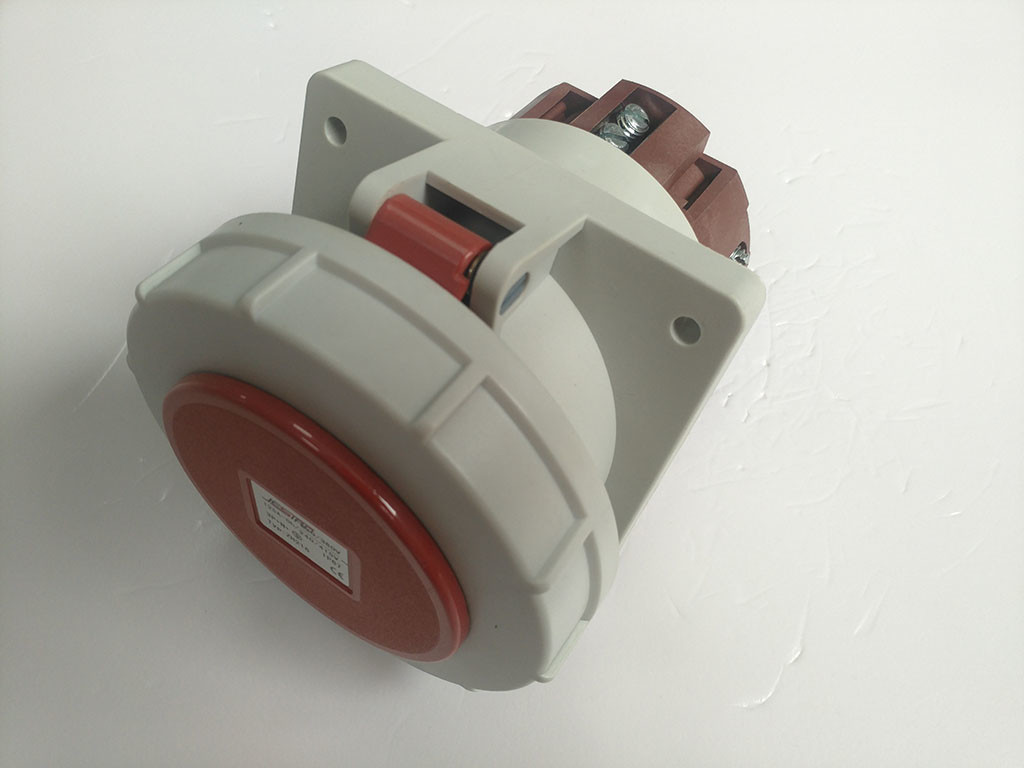

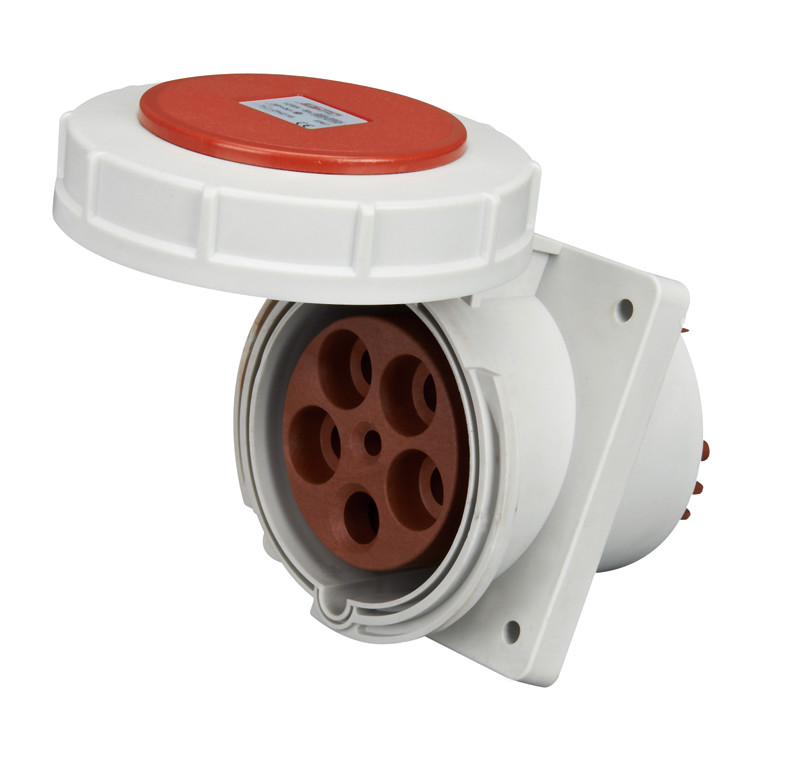

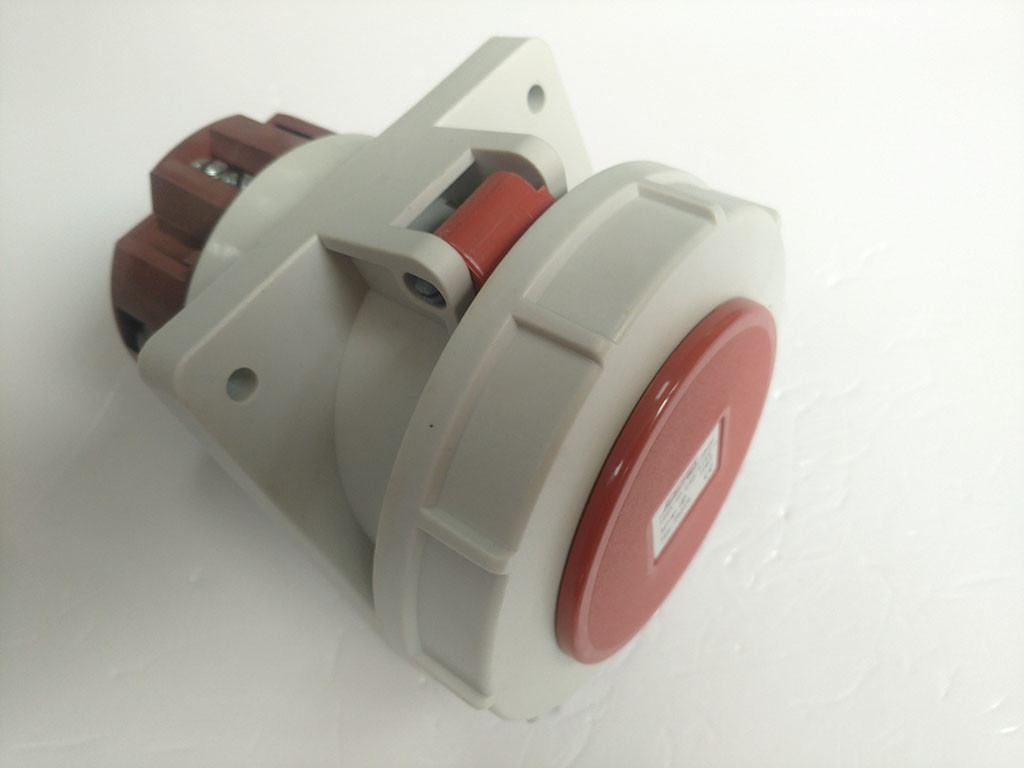

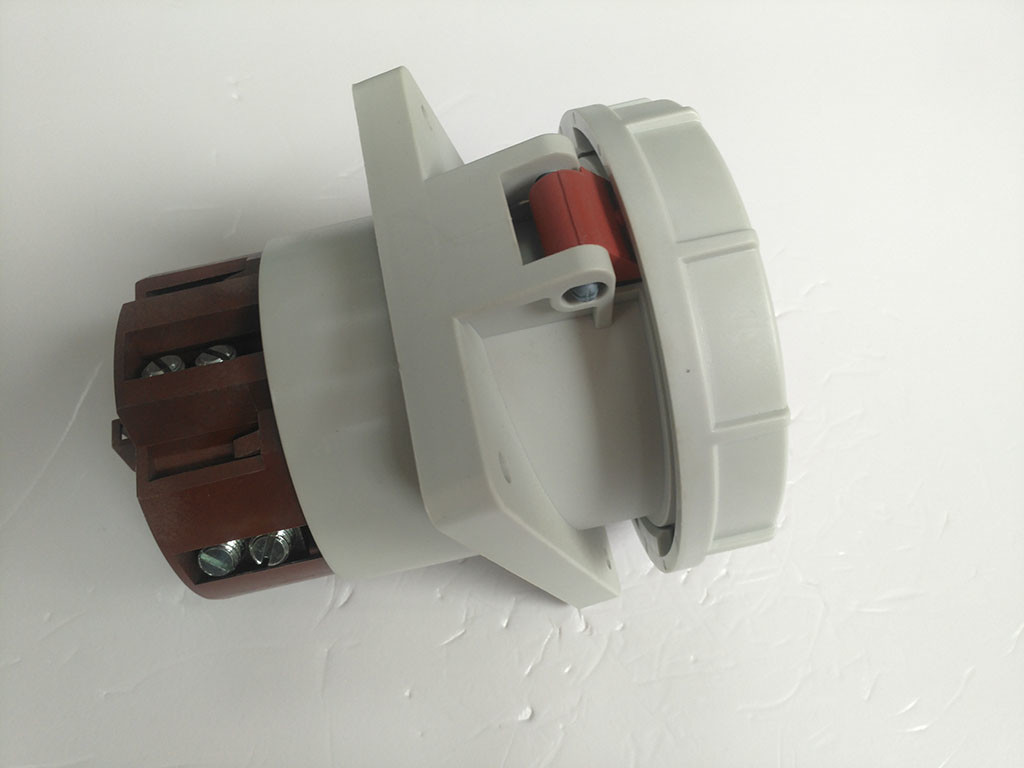

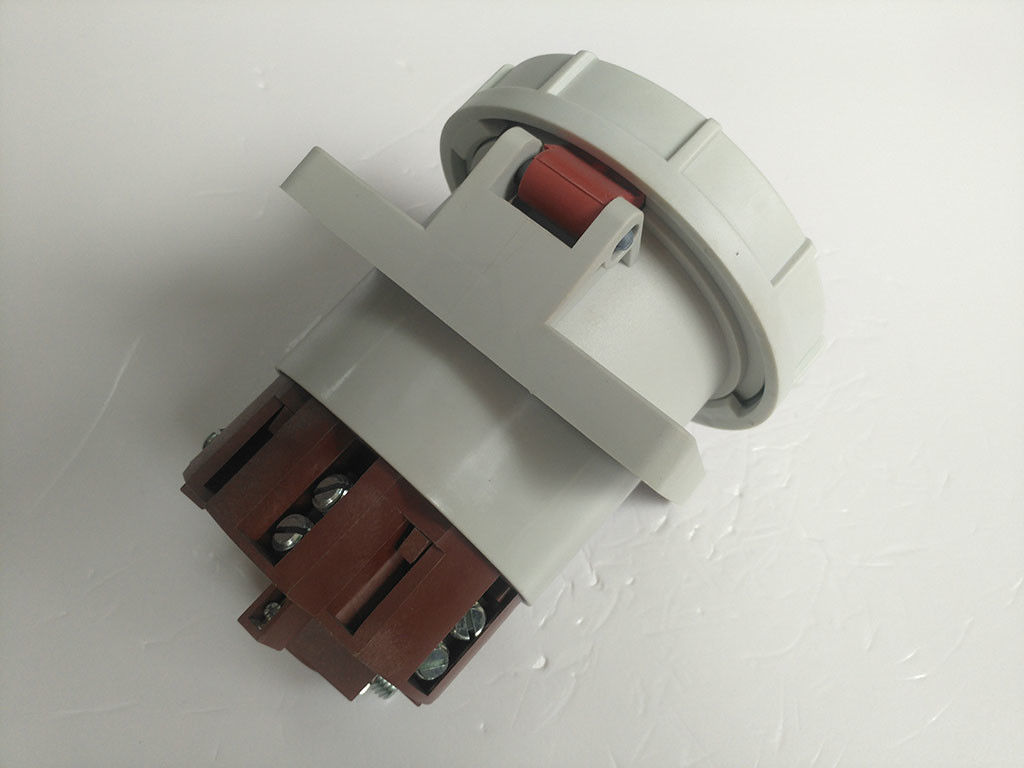

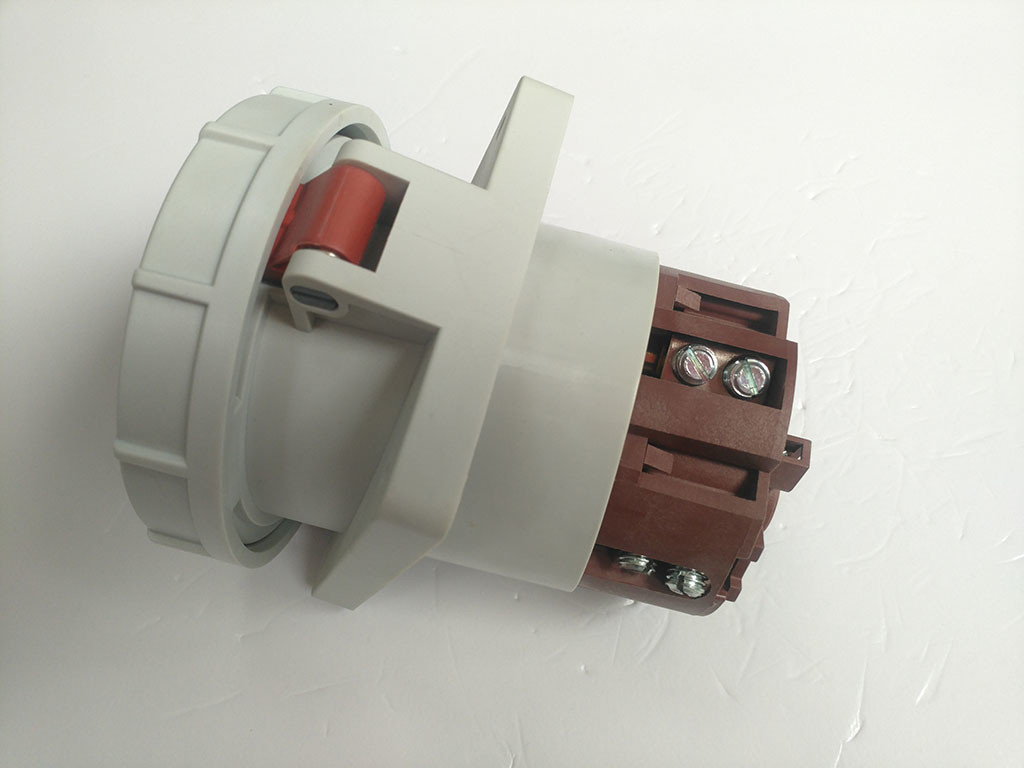

Picture:
