| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 645 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Material: | PA | Pole: | 5P |
|---|---|---|---|
| Voltage: | 380V | Current: | 125AMP |
| Waterproof: | IP67 Water Resistance | Material Of Pins: | Copper |
| Highlight: | Thermoplastic Industrial Plug Sockets,IP67 Watertight Industrial Plug Sockets,415V Industrial Plug Sockets |
||
645 3P+N+E 125A 380-415V IP67 Watertight Standard Inlet Thermoplastic Industrial Plug Sockets
Description:
For years HANBEN has been offering a wide range of high-quality industrial plugs and sockets complying with EN 60309-1 and 60309-2 European standards, gaining a leading position in the domestic and export markets.
HANBEN's industrial plugs and sockets are reliable, robust, easy to wire and provide outstanding resistance to weathering and to chemicals. All of which assures safe operation, even in the most adverse environmental conditions.
These standards govern appliances with rated operating voltage not exceeding 690V, 500 Hz and rated current not exceeding 125A, and are mainly designed for application in the manufacturing and service industry, on building sites and similar uses.
The main purpose of the standards is to prevent accidental or deliberate mismating of plugs and connections which are not compatible in terms of voltage, current, frequency, polarity and type of use, which might therefore cause personal harm as well as damage to the electric appliances which they connect.
Feature:
· Product Model:645
· Product Type:Panel Mounted Plug
· Standards:Conform to European/International Standards EN/IEC 60309-2
· Protection Ratings:IP67
· Qualifications:CE CB CCC
Technique Parameter:
| Current | Poles | 110V | 230V | 400V | 500V | ＞50-500 | ＞50-500 | Packing unit | Weight |
| 50a.60Hz | 50a.60Hz | 50a.60Hz | 50a.60Hz | 100-300Hz | a.300-500Hz | ||||
| 3Poles | 4Poles | 5Poles | 3Poles | 4Poles | 5Poles | 3Poles | 4Poles | 5Poles | 3Poles |
| 4h | 4h | 4h | 6h | 9h | 9h | 9h | 6h | 6h | 7h |
| 125 | 5 | 645 | 5 | 1130 |
| Earth Contact Position |
6h
|
|
| Rated Current(A) |
125
|
|
| Poles |
5
|
|
| Dimension(mm) | a |
130
|
| b | 130 | |
| c | 112 | |
| d | 104 | |
| e | 104 | |
| f | 6.5 | |
| g. | 18 | |
| g.1 | 2 | |
| l | 95 | |
| s | 132 | |
| Conductor crosssectional2 area (mm )Min. To Max |
25-35
|
Product Dimension:

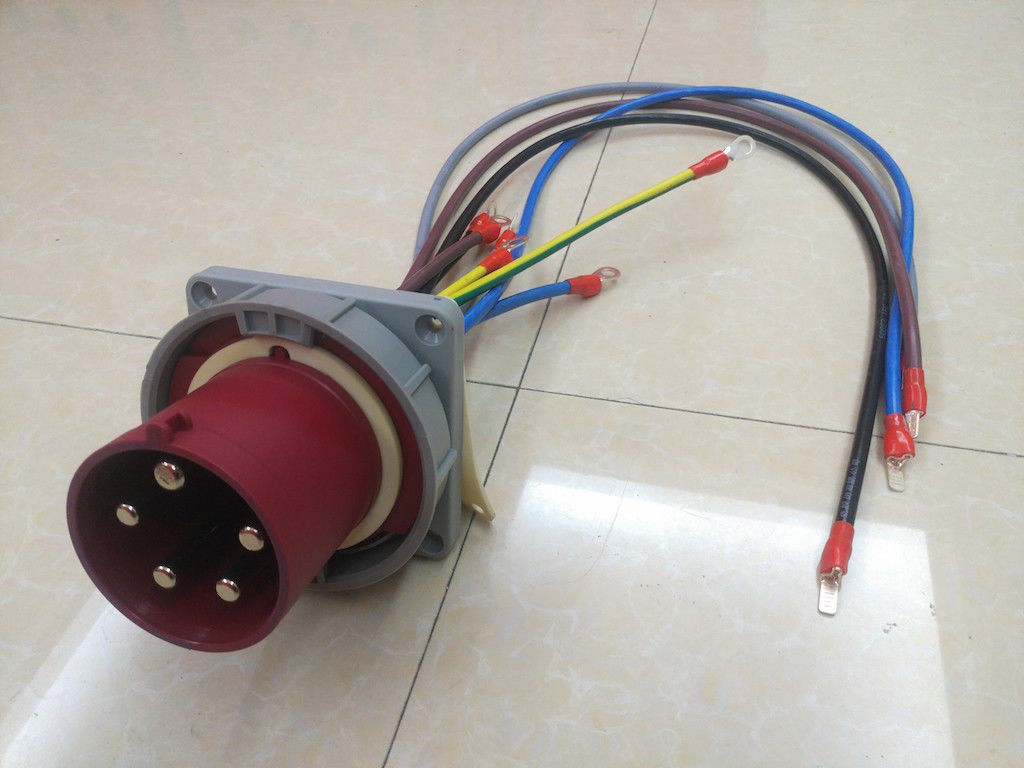

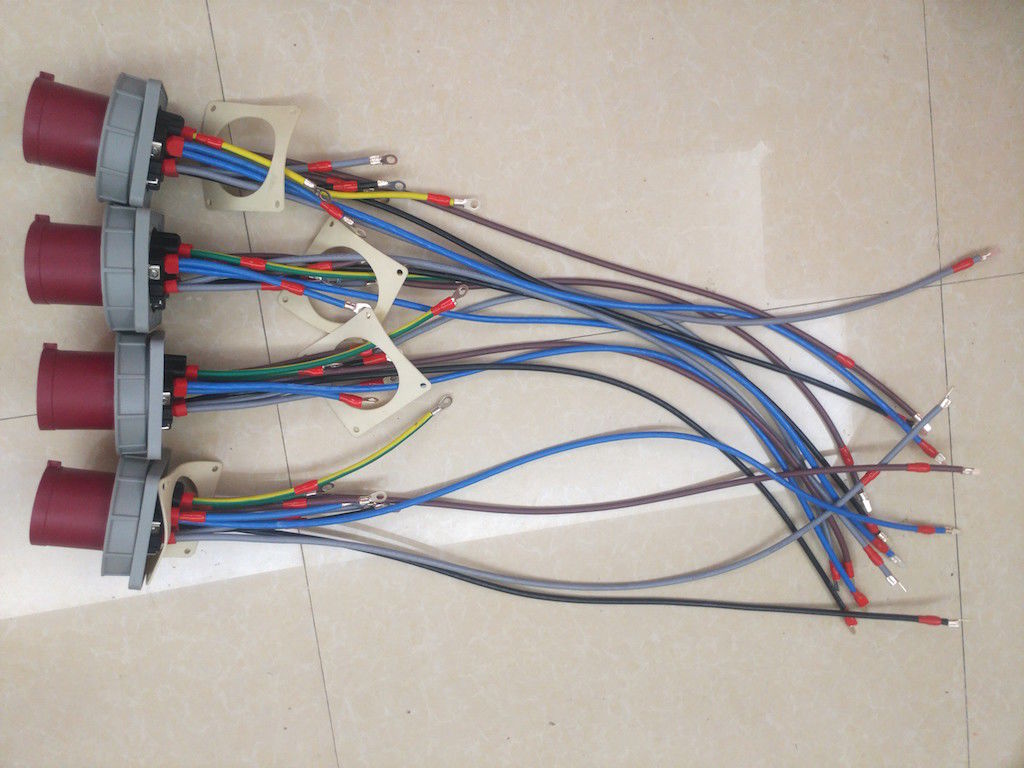

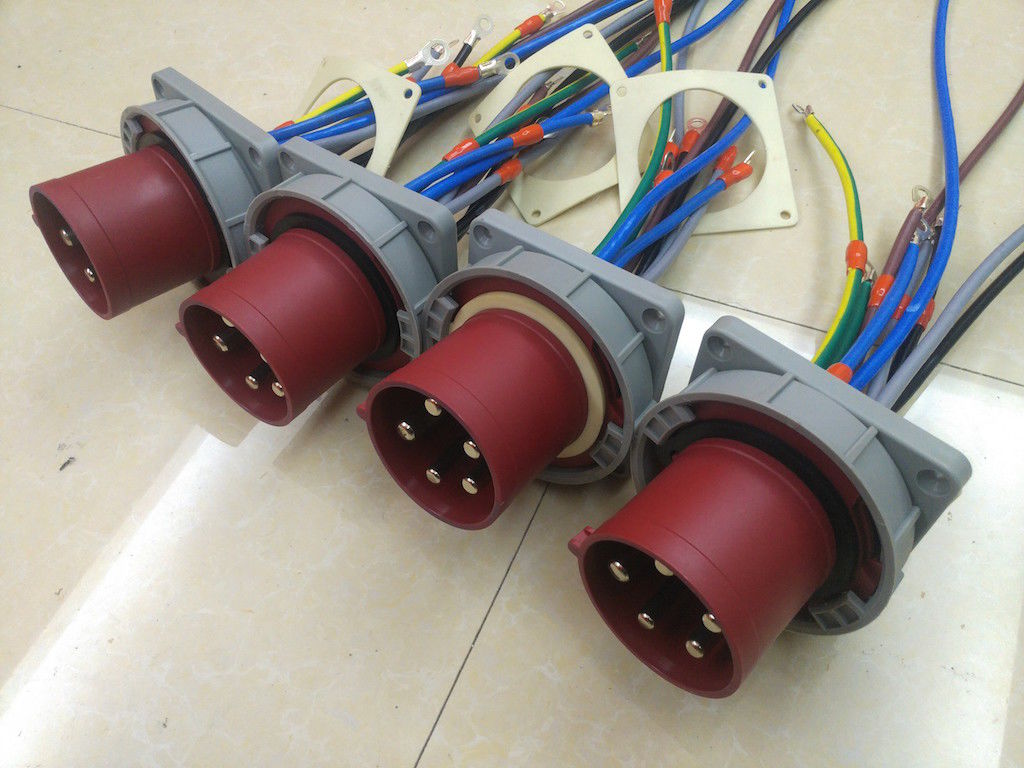

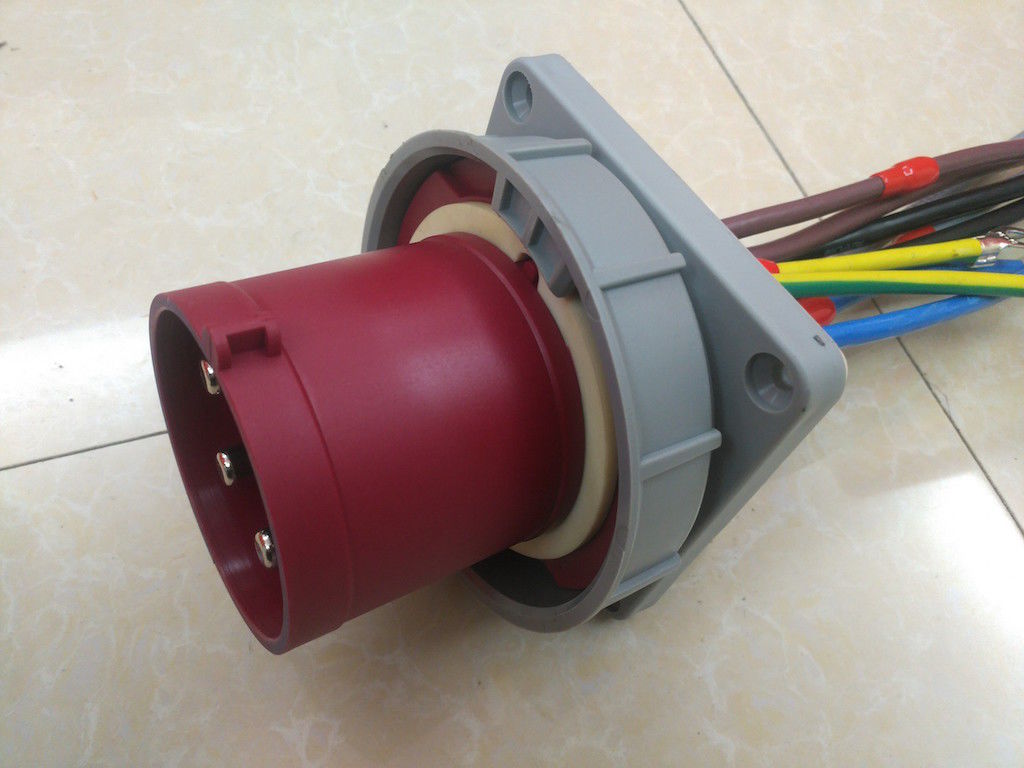

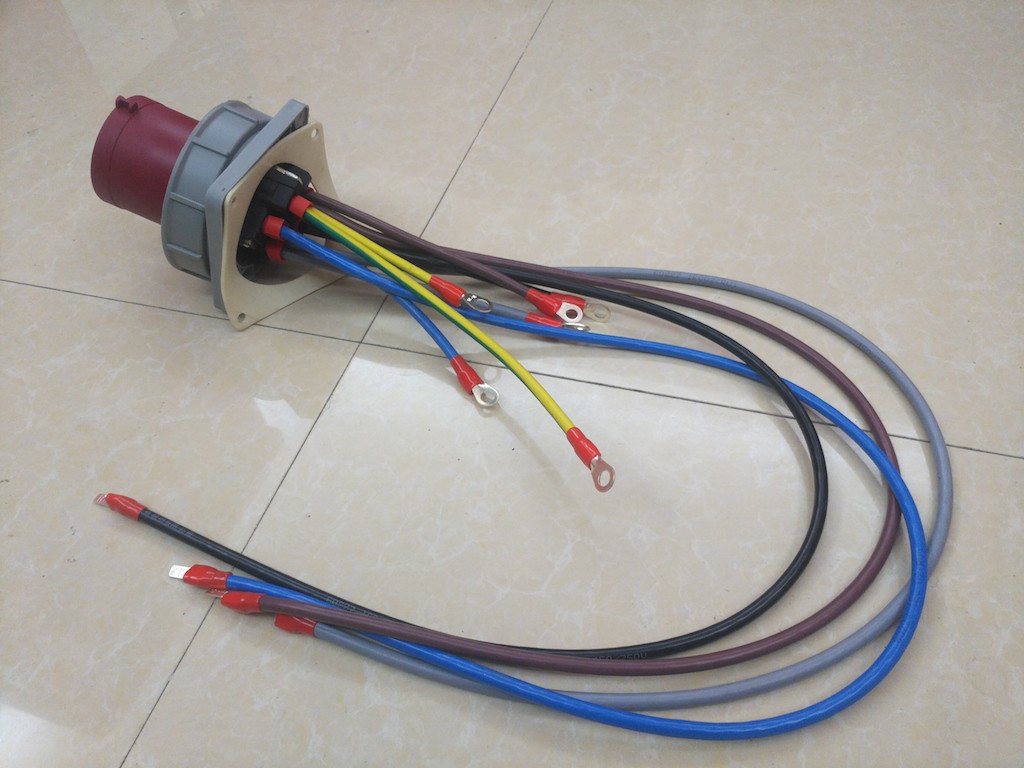

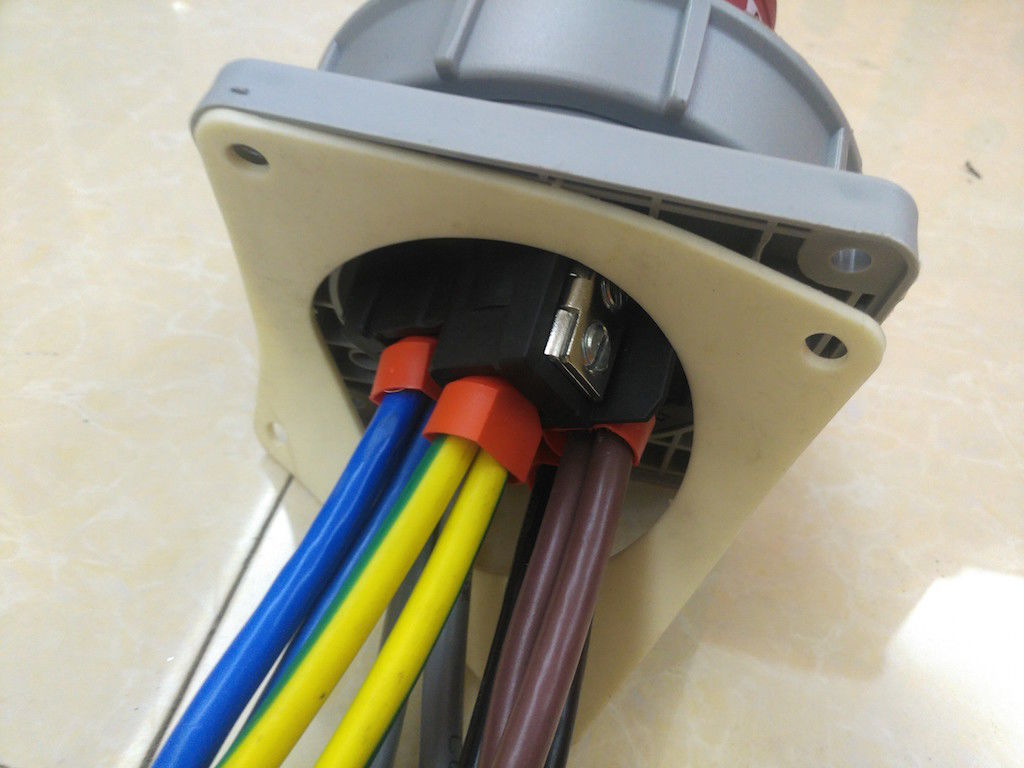

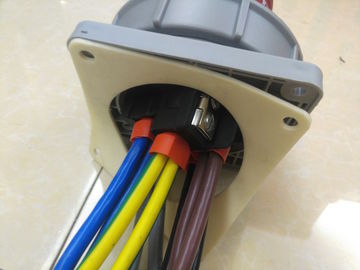

Picture:
