Ampere: | 125 A | Pole: | 5 P |
---|---|---|---|
Voltage: | 400 V | Earth Position: | 6 H |
Hertz: | 50-60 Hz | Connection Technology: | Screw Terminals |
Contact: | Nickel Plated Contacts, Highly Heat Resistant Contact Carrier | Protection Type: | IP 67 |
Highlight: | Water Resistance Industrial Plugs Sockets,3rd Generation Industrial Plugs Sockets,Hard Plastic Industrial Plugs Sockets |
1983 5P 125AMPS 400V IP67 Water Resistance Inlet Hard Plastic 3rd Generation Industrial Plugs and Sockets
Description:
These products are used for connection of equipment in all kind of applications where it needs to be possible to connect and disconnect. ABB industrial plugs and sockets are chosen when safety, reliability and durability is requested.
Reliable contacts prevent stops and power breaks, which leads to increased productivity.
Durable equipment prevents time and cost lost due to maintenance.
Safe connections prevent accidents.
Feature:
· Product Model:645
· Product Type:Panel Mounted Plug
· Standards:Conform to European/International Standards EN/IEC 60309-2
· Protection Ratings:IP67
· Qualifications:CE CB CCC
Technique Parameter:
Current | Poles | 110V | 230V | 400V | 500V | >50-500 | >50-500 | Packing unit | Weight |
50a.60Hz | 50a.60Hz | 50a.60Hz | 50a.60Hz | 100-300Hz | a.300-500Hz | ||||
3 Poles | 4 Poles | 5 Poles | 3 Poles | 4 Poles | 5 Poles | 3 Poles | 4 Poles | 5 Poles | 3 Poles |
4h | 4h | 4h | 6h | 9h | 9h | 9h | 6h | 6h | 7h |
125 | 5 | 1983 | 5 | 1130 |
Earth Contact Position |
6h
|
|
Rated Current(A) |
125
|
|
Poles |
5
|
|
Dimension(mm) | a |
130
|
b | 130 | |
c | 112 | |
d | 104 | |
e | 104 | |
f | 6.5 | |
g. | 18 | |
g.1 | 2 | |
l | 95 | |
s | 132 | |
Conductor crosssectional2 area (mm )Min. To Max |
25-35
|
Product Dimension:

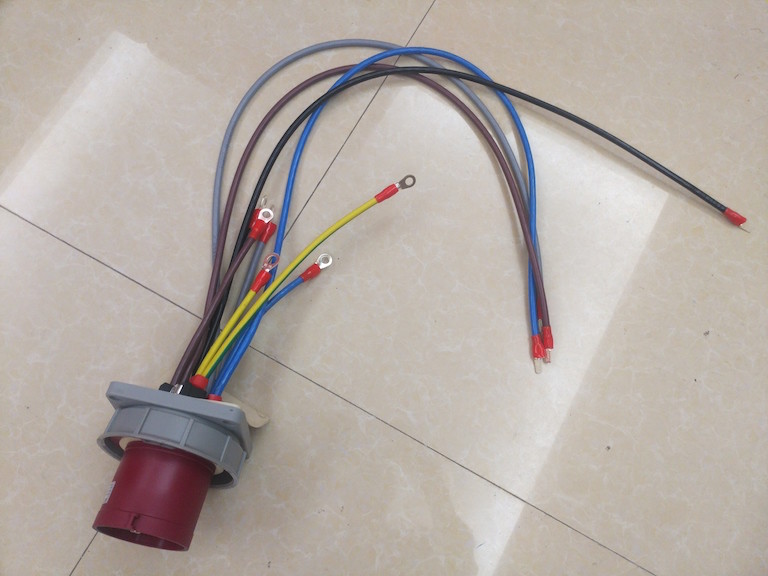

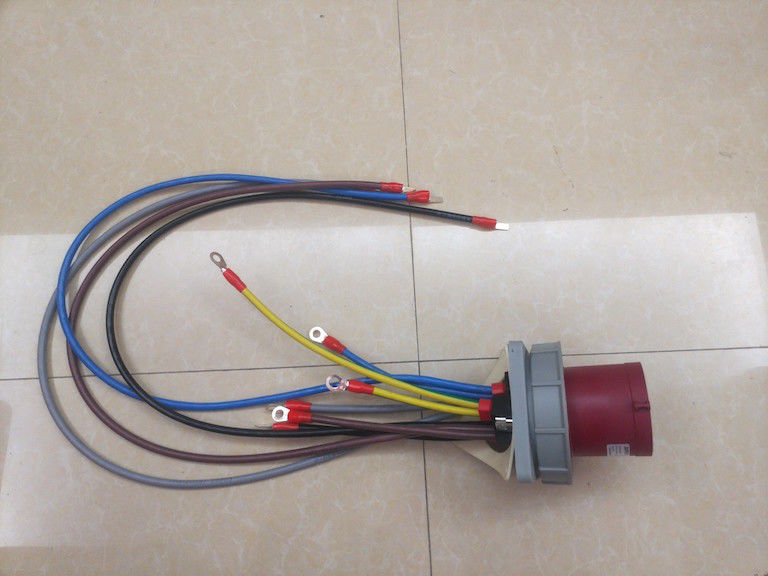

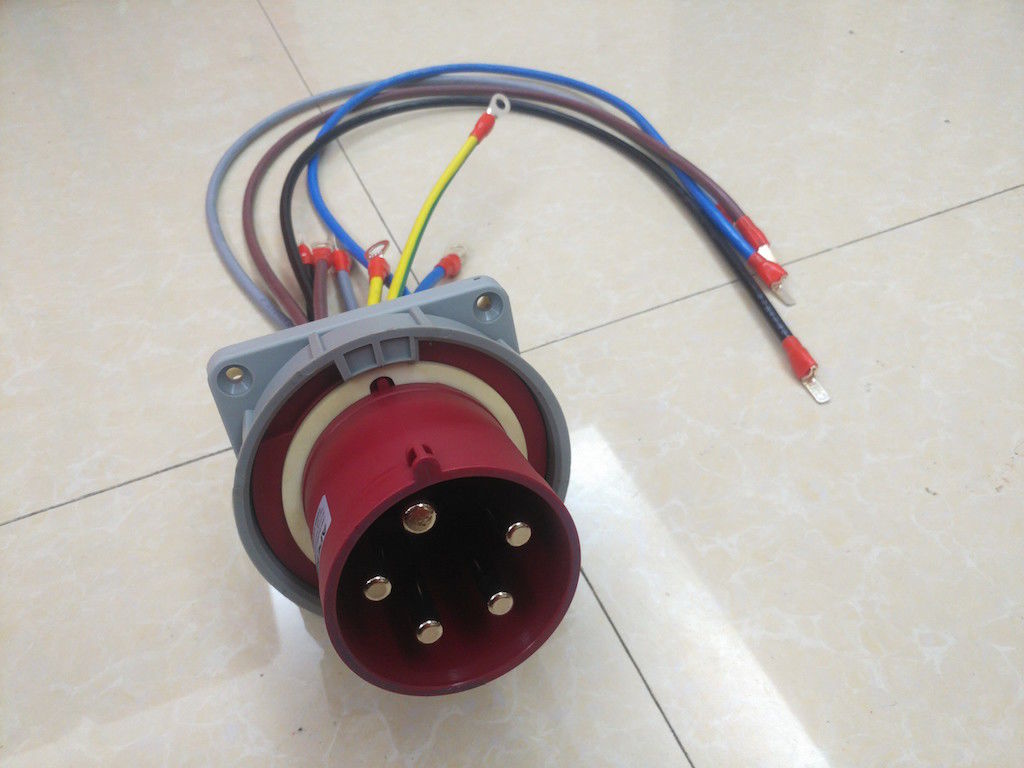

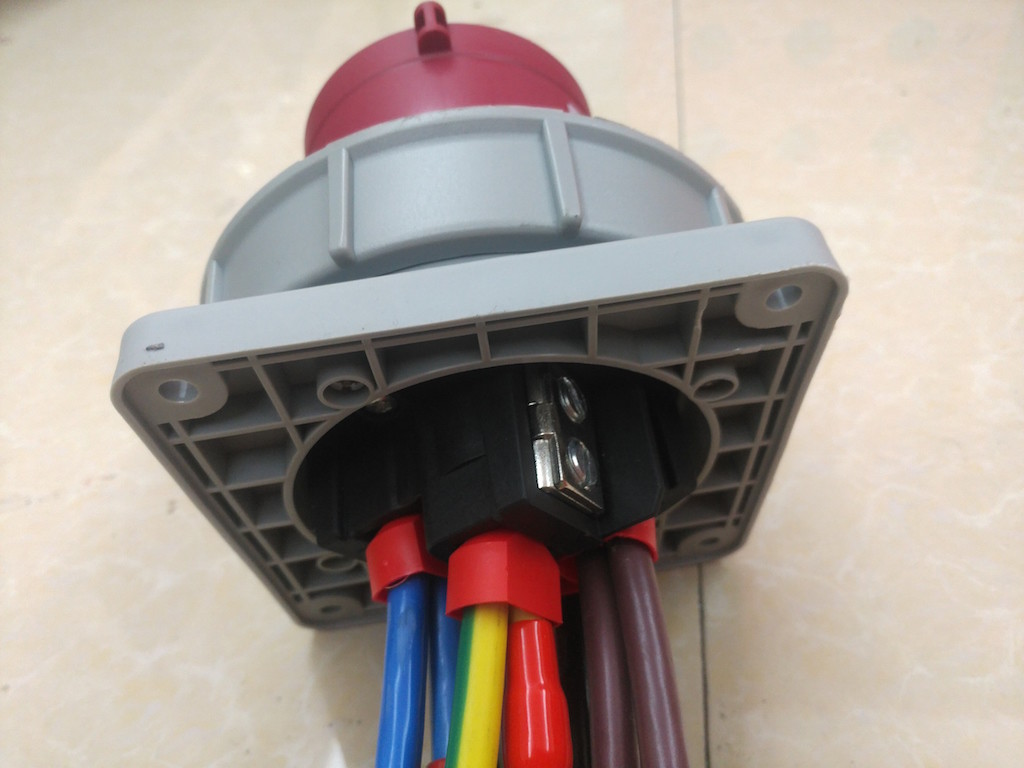

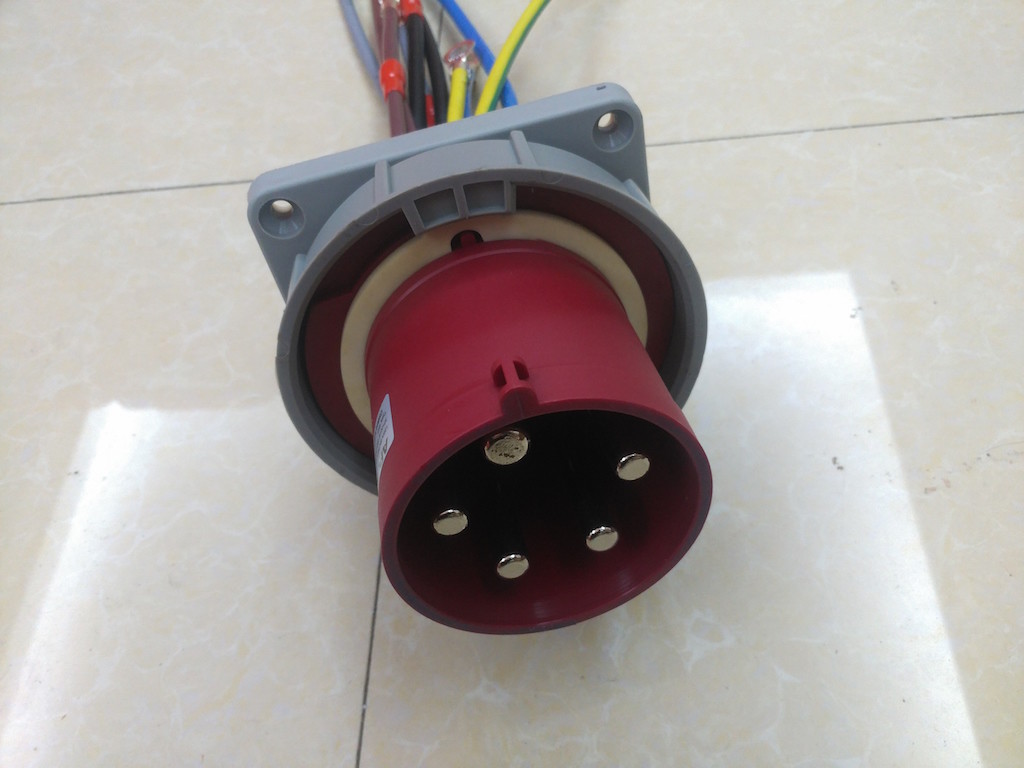

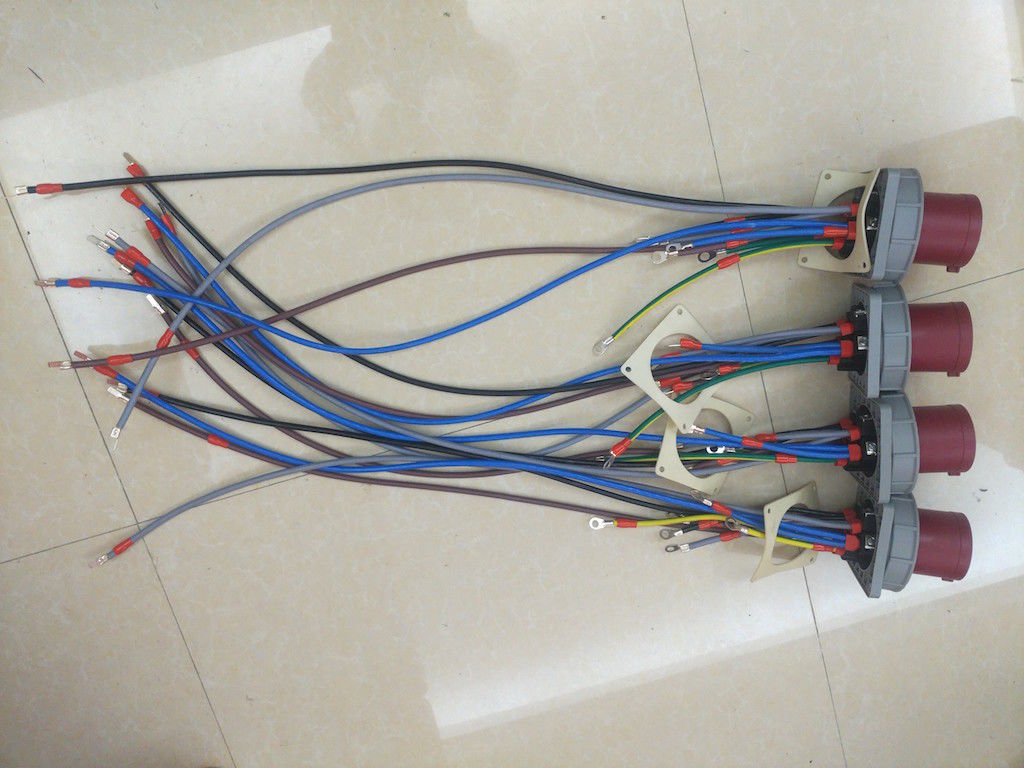

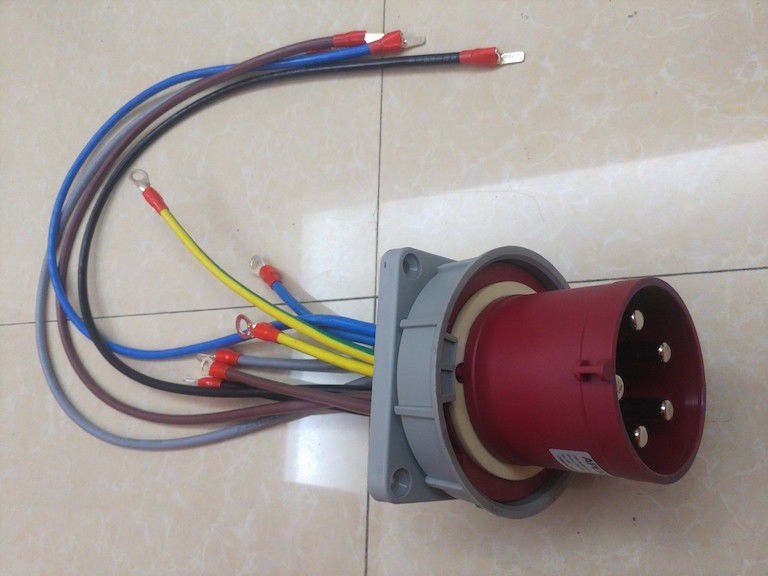

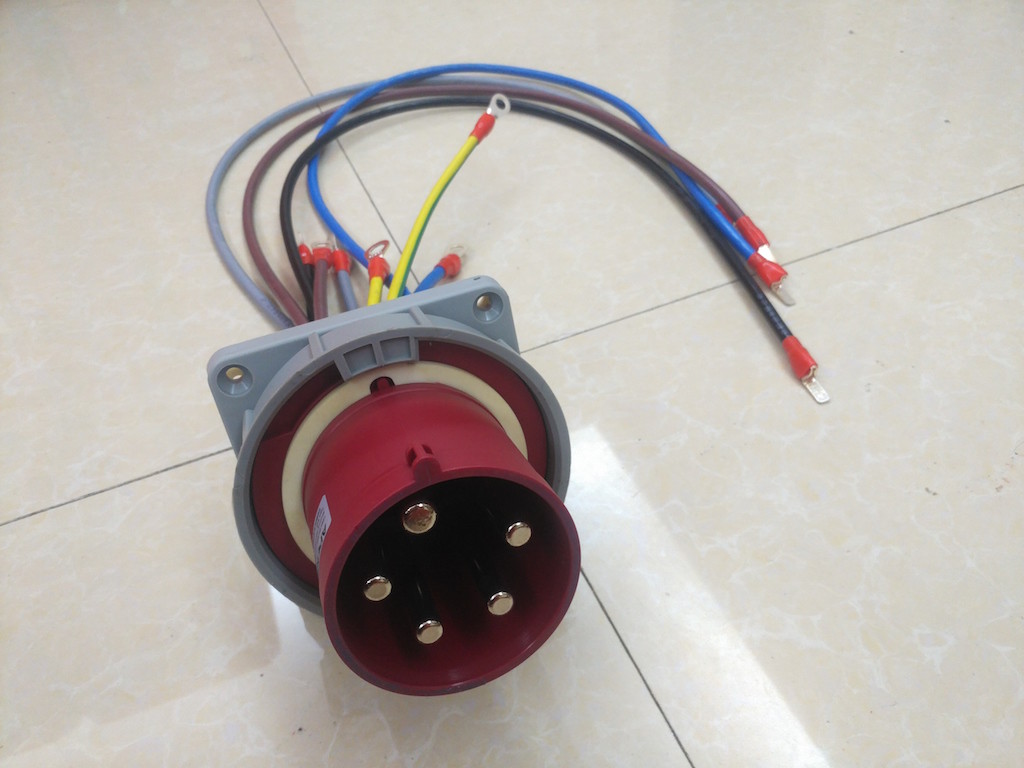

Picture:
