DIN VDE 0623 Industrial Waterproof Plug Socket , IP44 Rainproof 3 Phase Socket

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1492
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Name: Industrial Socket Current & Voltage: 32A 230V
Poles: 3P Earth Position: 6h
Protection Degree: IP44 Water Protected Product Weight: 236g/pc
Highlight:

plug and socket connectors

,

iec 60309 plugs and sockets


Product Description

3P32A IP44 Rainproof Panel Mounted Slanting Receptacle Third Generation Industrial Sockets part no. 1492



Industrial Plugs and Sockets:



Provide a connection to the electrical mains rated at higher voltages and currents than household plugs and sockets. They are generally used in polyphase systems, with high currents, or when protection from environmental hazards is required. Industrial outlets may have weatherproof covers, waterproofing sleeves, or may be interlocked with a switch to prevent accidental disconnection of an energized plug. Almost all three-phase power plugs have an earth (ground) connection, but may not have a neutral because three-phase loads such as motors do not need the neutral. Such plugs have only four prongs (earth, and the three phases).



Part no. 1492





Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
32A 3 1491 1492 1493   3201 3202 10 236
4 1494 1495 1496 1497 1489 1487 10 250
5 1498 1499 1500 3191 3192 3193 10 288



Current Poles a b c d e f g. g.1 h k l l1 α
32A 3 100 92 62 85 77 5.3 8 2 107 51 73 85 20°
4 100 92 62 85 77 5.3 8 2 107 51 73 85 20°
5 100 92 62 85 77 5.3 8 2 112 52 73 86 20°
Conductor cross-sectional area(mm²)Min To Max 4-6



Picture:

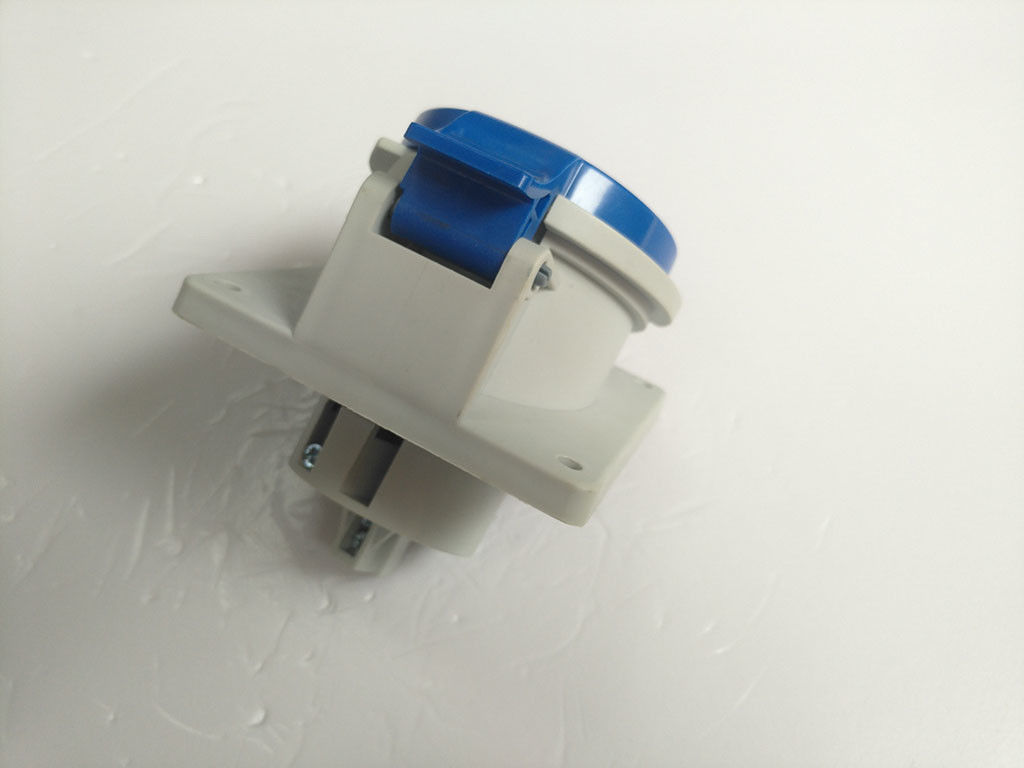

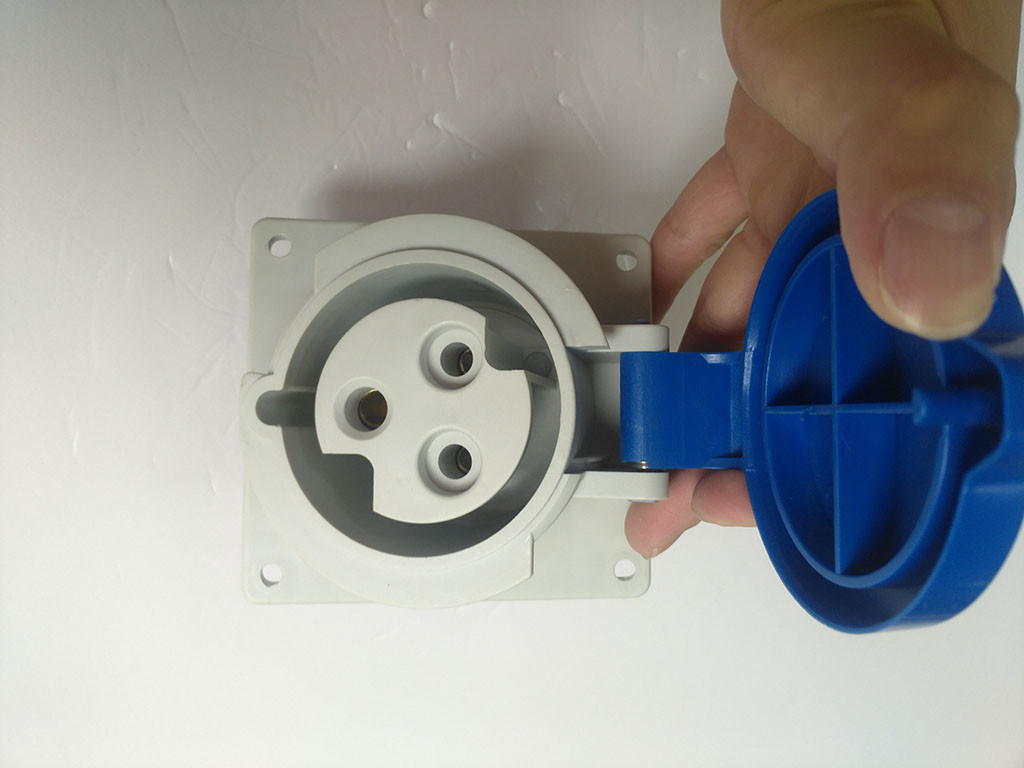

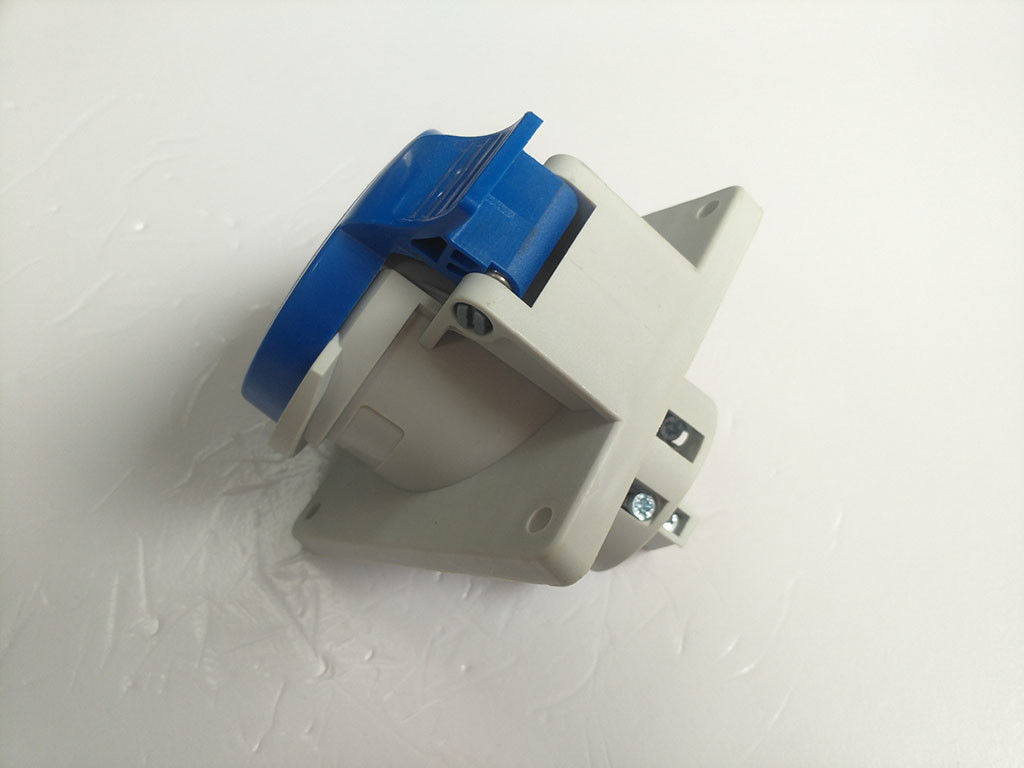

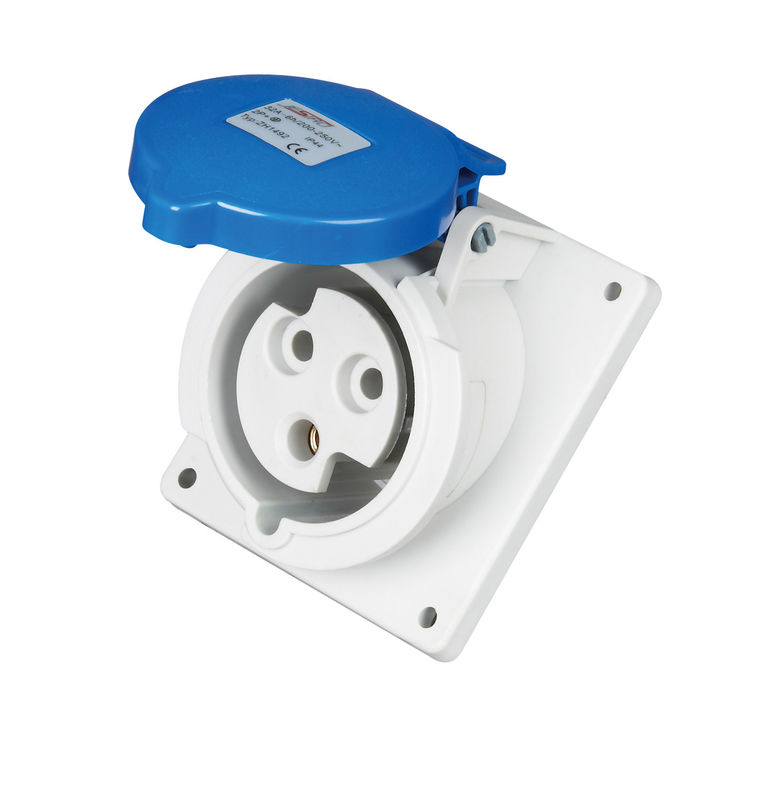

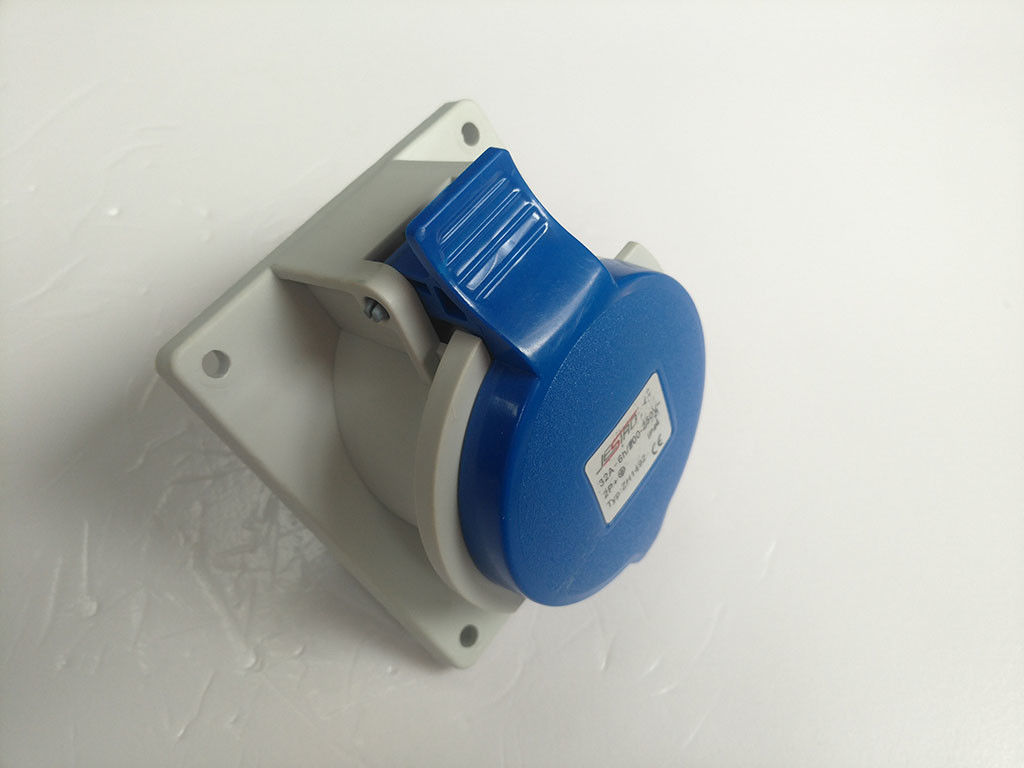

DIN VDE 0623 Industrial Waterproof Plug Socket , IP44 Rainproof 3 Phase Socket 0
