3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1395
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Name: Straight Industrial Socket Current & Voltage: 32A 230V
Poles: 3 Pins Earth Position: 6 H
Protection Degree: IP44 Water Protected Product Weight: 236G/pc
High Light:

plug and socket connectors

,

waterproof electrical plugs and sockets


Product Description

3P32A IP44 Weather Protection Panel Mounted Straight Receptacle 3rd Generation Industrial Socket part no. 1395



Description:



  • Plugs are available in P N E (unbalanced single phase with neutral), 2P E (balanced single phase), 3P E (3 phase without neutral), and 3P N E (three phase with neutral). Current ratings available are 16 A, 32 A, 63 A, 125 A and 200 A.
  • Voltage and other characteristics are represented by a colour code (in three-phase plugs the stated voltage is the phase-phase voltage, not the phase-neutral voltage).
  • Since the different current ratings have different overall sizes, it is also not possible to mate different pin configurations or current ratings.
  • Part no. 1395





Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
32A 3 1394 1395 1396       10 224
4 1397 1398 1399 1400 1041 1042 10 245
5 3449 3454 3451 3425 3455 3447 10 245

Current Poles a b c d e f g. g.1 h h1 k i
32A 3 75 75 64 60 60 5.5 8 2 89 12 32 62
4 75 75 64 60 60 5.5 8 2 89 12 32 62
5 75 75 64 60 60 5.5 8 2 95 12 32 65
Conductor cross-sectional area(mm²)Min To Max 4-6

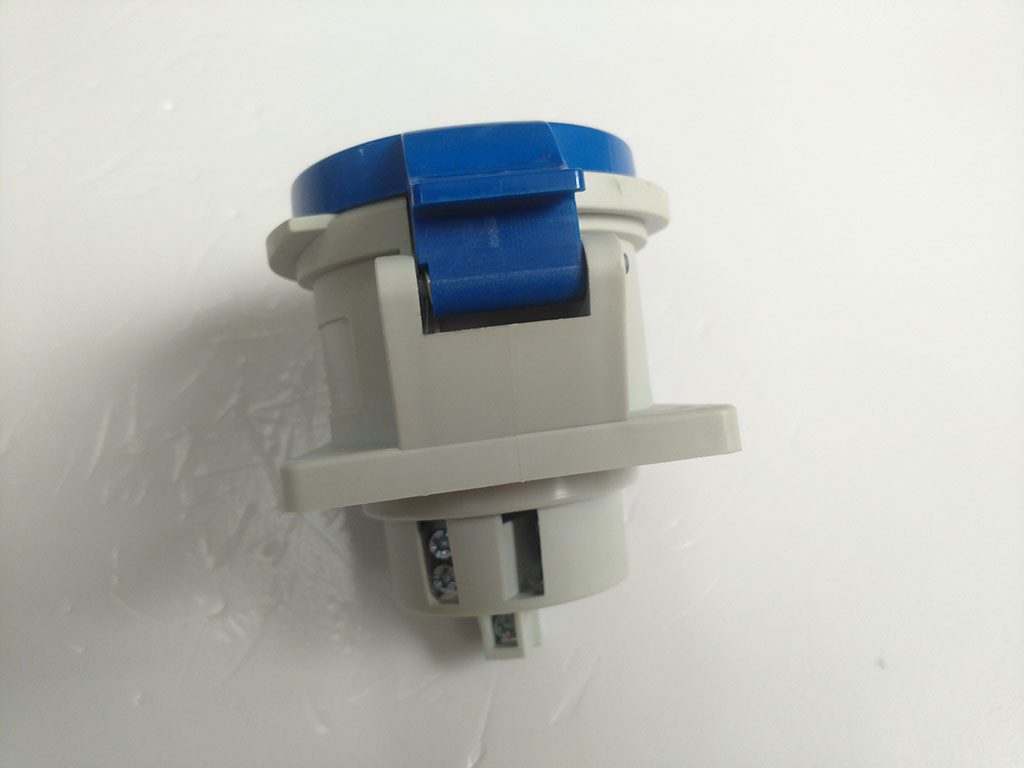

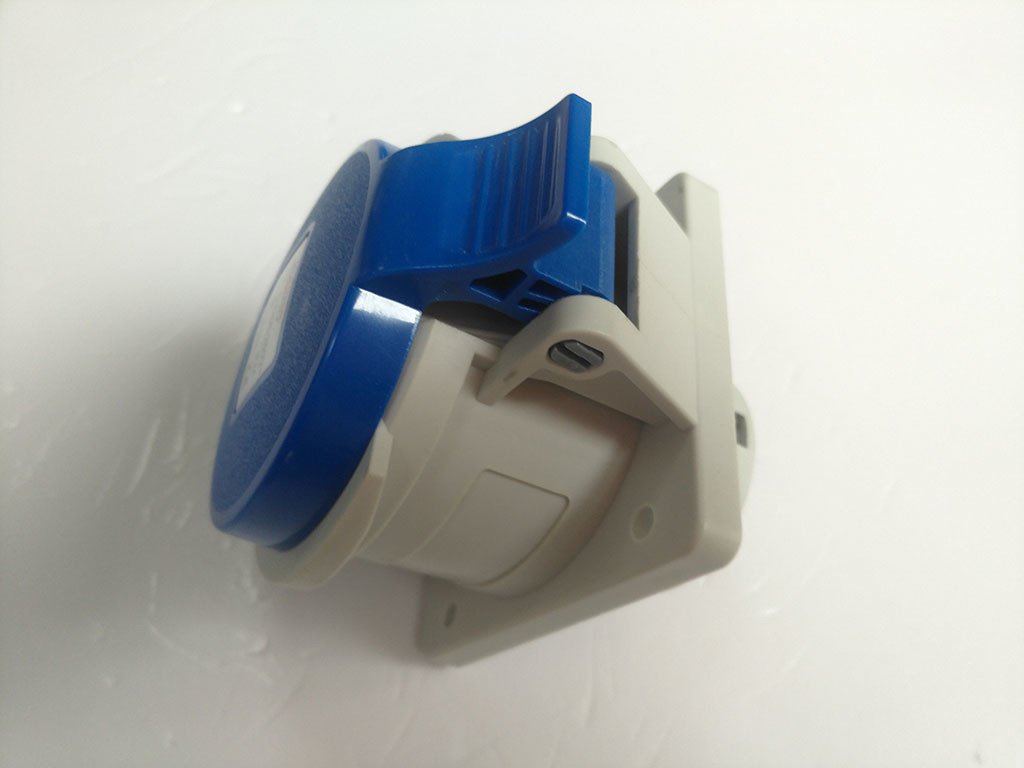

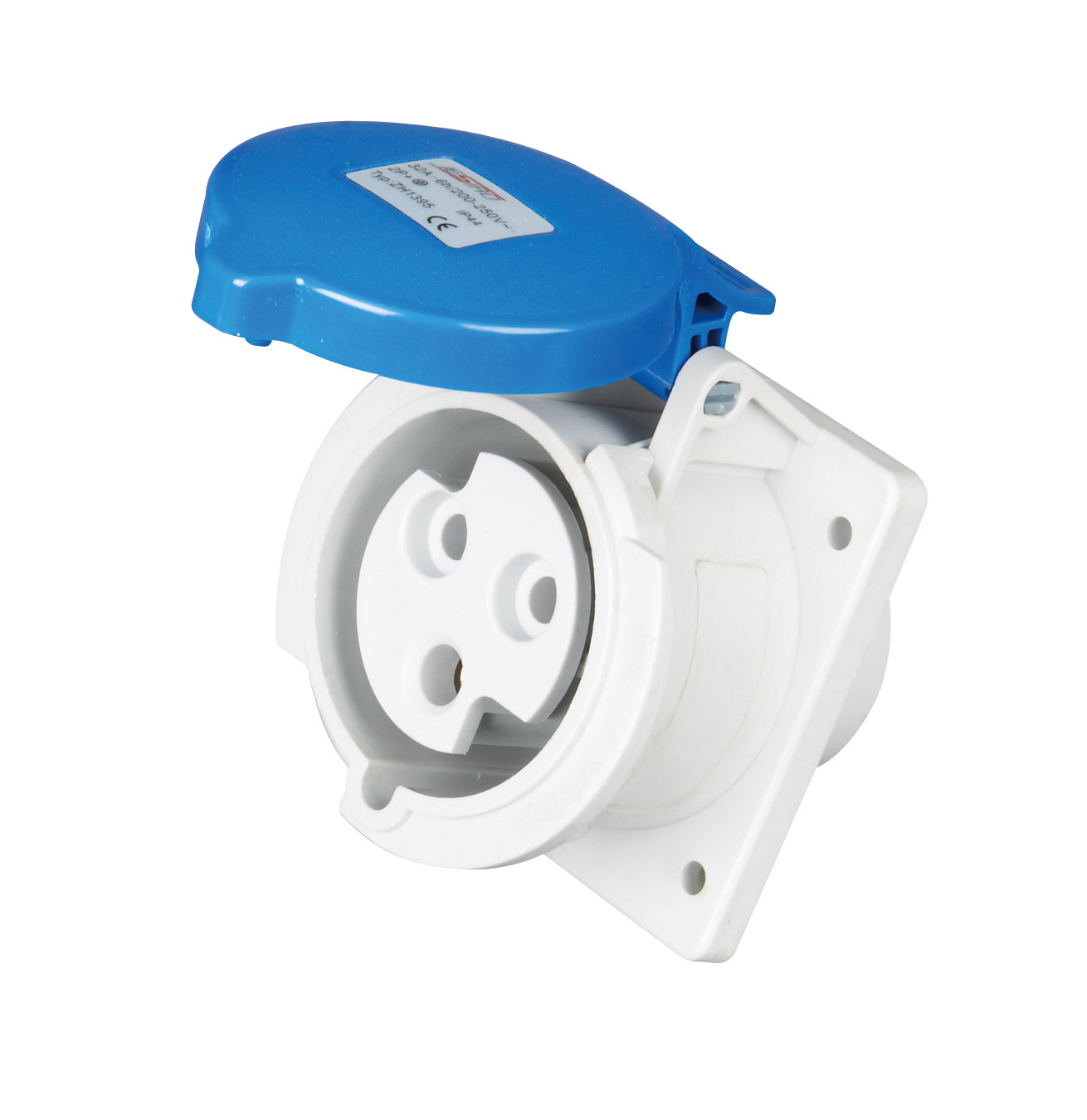

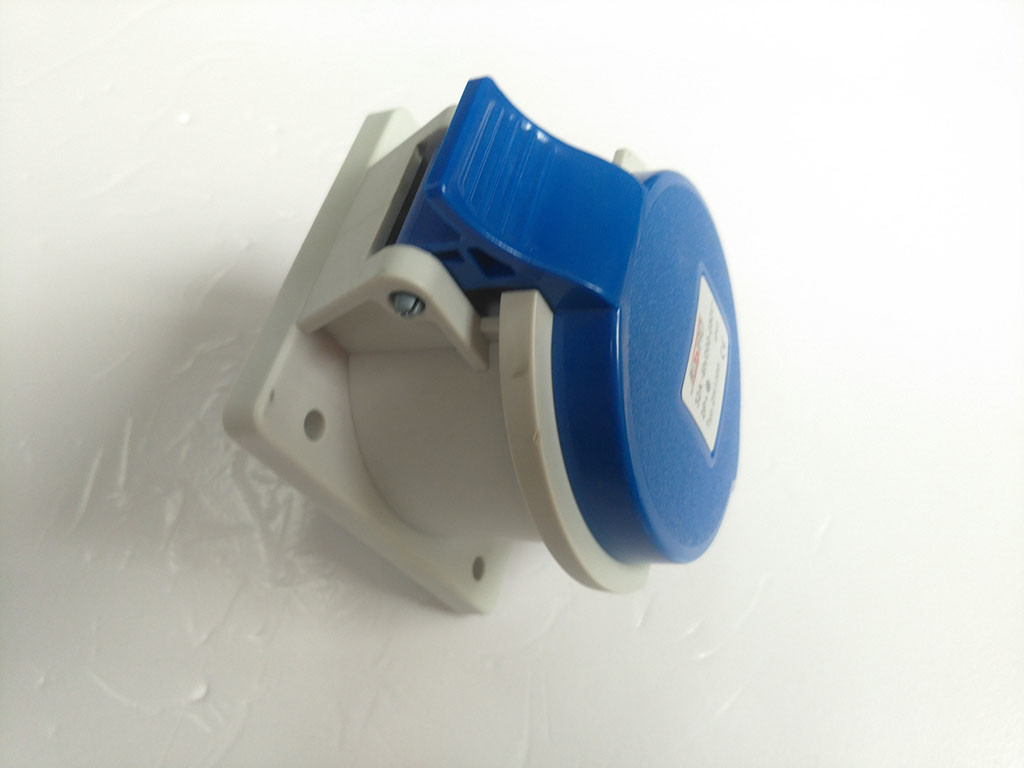

Picture:



3 Poles Industrial Plug Sockets Straight Receptacle Type 3rd Generation 0
