| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 230 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Receptacle | Rated Current: | 32 A |
|---|---|---|---|
| Rated Voltage: | 230 V | Frequency: | 50-60 Hz |
| Earthing Position: | 6 H | IP Rating: | Waterproof IP67 |
| Highlight: | plug and socket connectors,waterproof electrical plugs and sockets |
||
3P32A IP67 Waterproof Panel Mounted Straight Receptacle Industrial Sockets with Cover part no. 230
Standard:
The standards EN 60309-1 and EN 60309-2 (equivalent to IEC 60309.1 and IEC 60309-2) have been adopted by all the european members of CENELEC (Comité Européen de la Normalisation ELECtrotechnique): Austria, Belgium, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Norway, The Netherlands, Portugal, United Kingdom, Spain, Sweden and Switzerland. Many other countries, although not aknowledging the need to standardise both out of safety considerations and with the objecti of improving performance and sales.
Part no. 230
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 229 | 230 | 231 | 10 | 268 | ||||
| 4 | 232 | 233 | 234 | 2123 | 235 | 236 | 237 | 10 | 290 | |
| 5 | 238 | 239 | 240 | 10 | 319 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | |
| 32A | 3 | 85 | 75 | 70 | 60 | 60 | 5.5 | 8 | 2 | 99 | 103 | 34 | 62 | |
| 4 | 85 | 75 | 70 | 60 | 60 | 5.5 | 8 | 2 | 99 | 103 | 34 | 62 | ||
| 5 | 85 | 75 | 72 | 60 | 60 | 5.5 | 8 | 2 | 105 | 110 | 34 | 65 | ||
| Conductor cross-sectional area(mm²)Min To Max 4-6 | ||||||||||||||

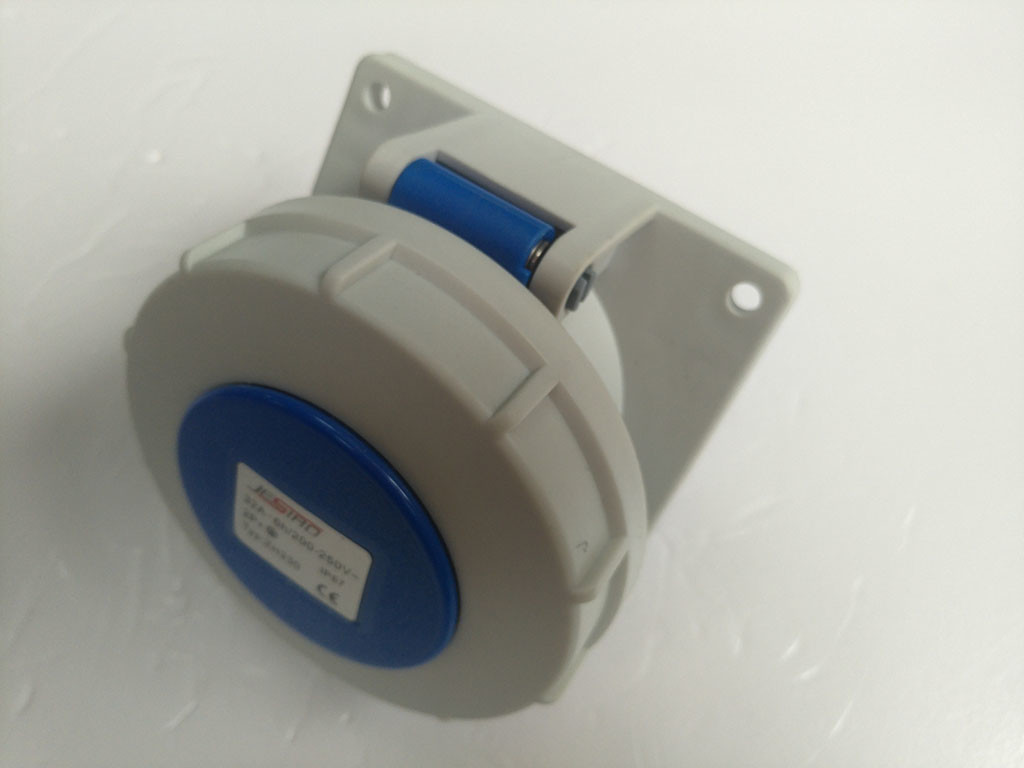

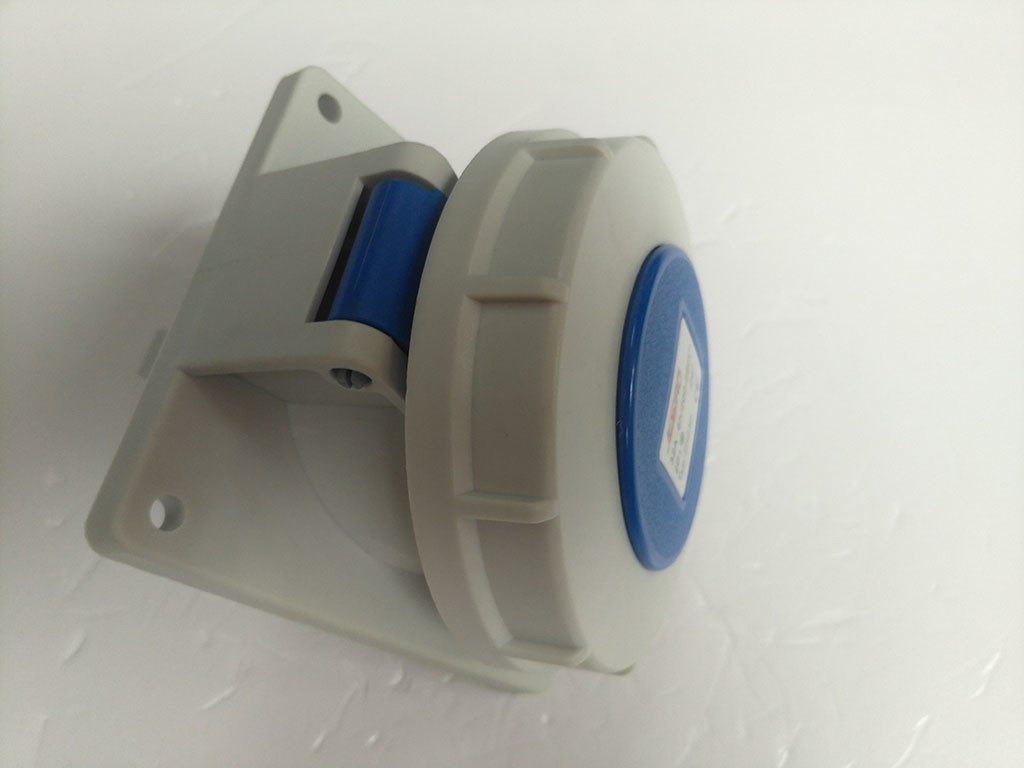

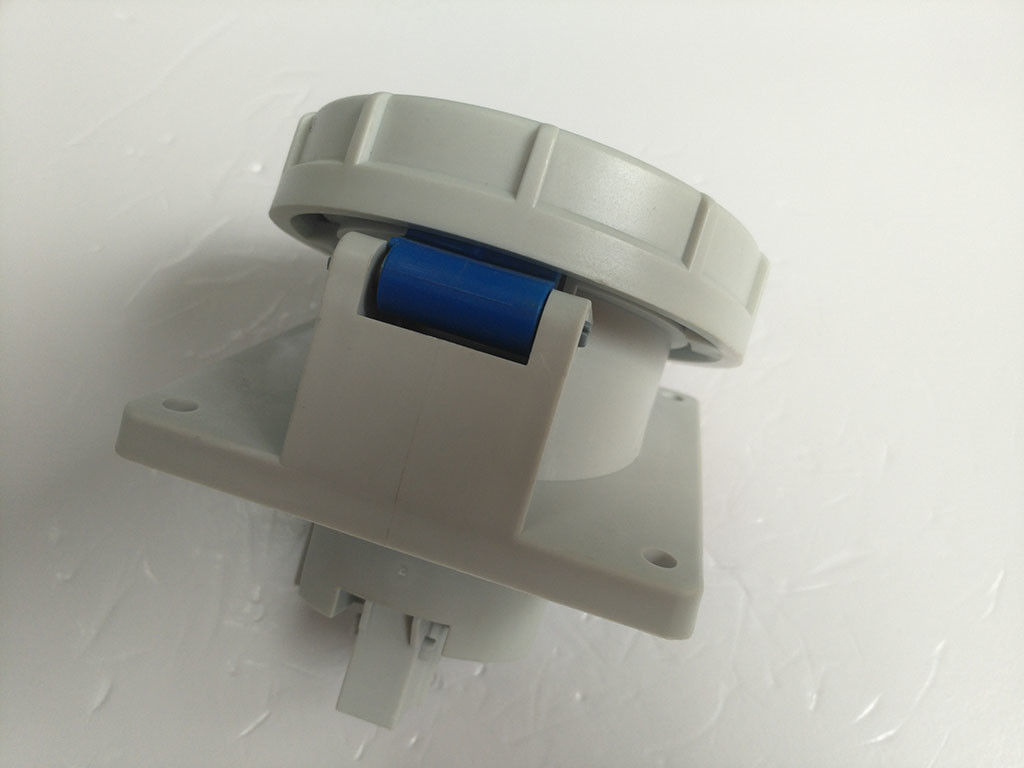

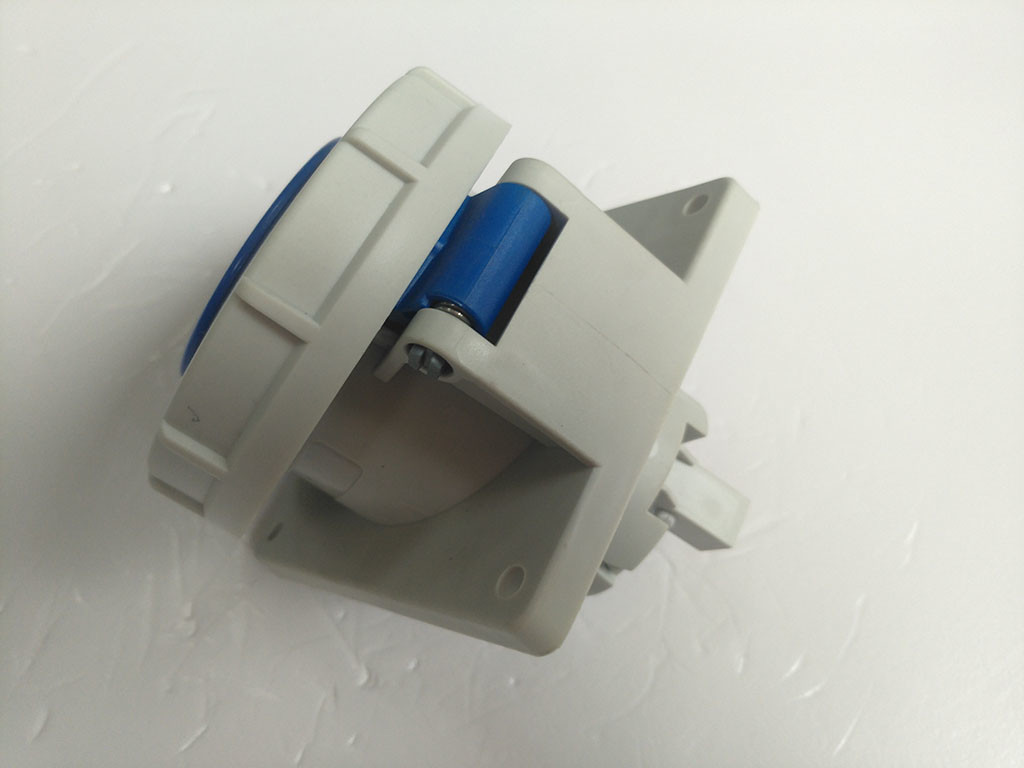

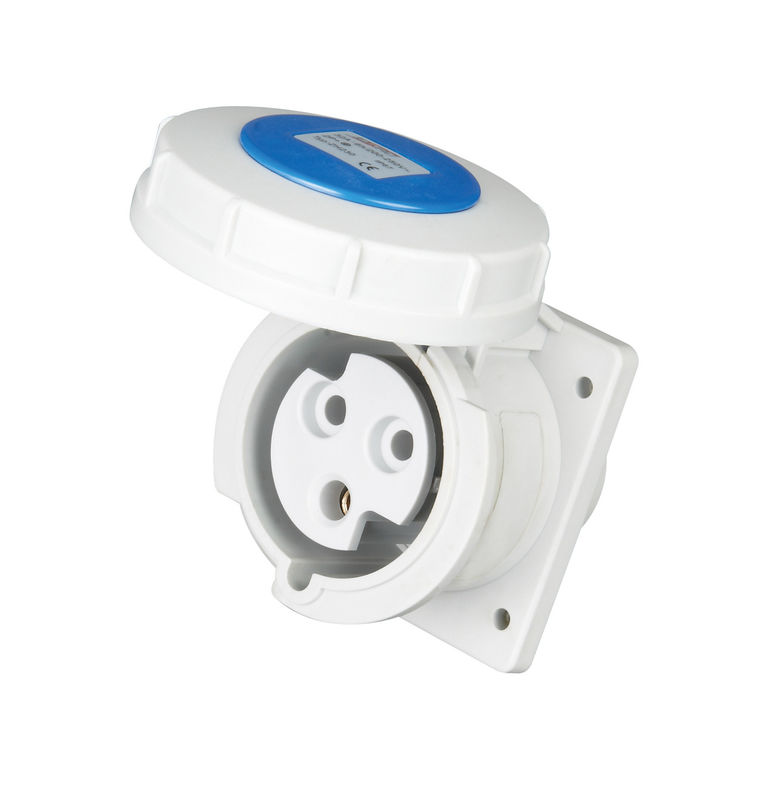

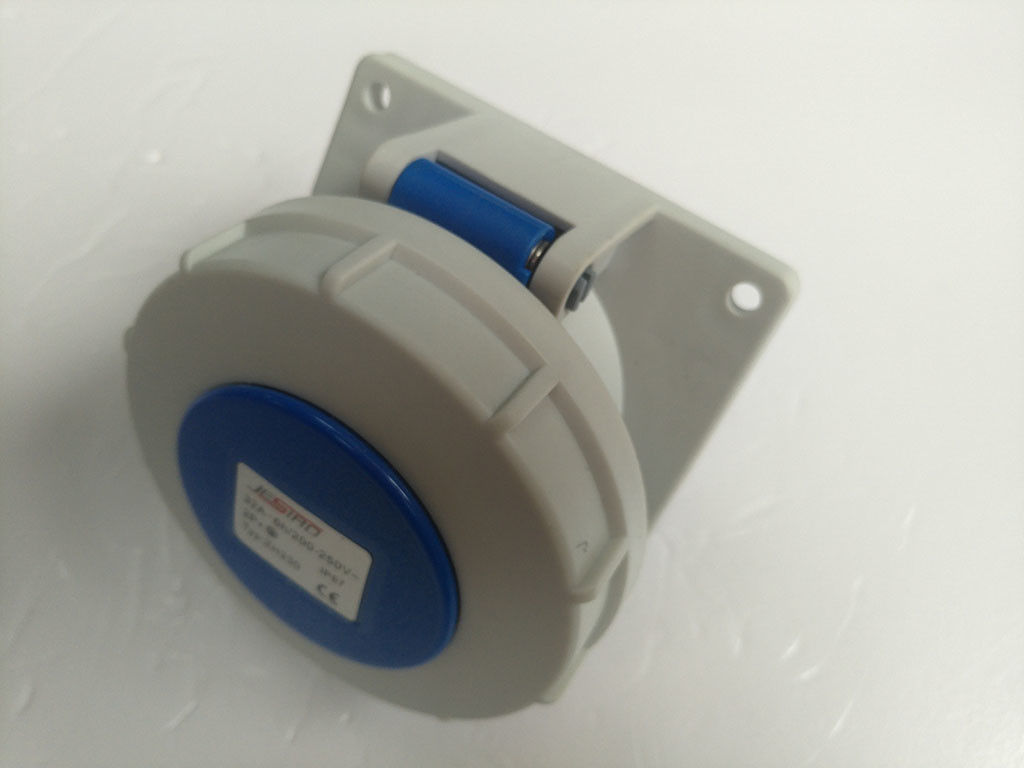

Picture:
