| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1261 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Current: | 63 Amp | Voltage: | 230 Volt |
|---|---|---|---|
| Poles: | 3P | Earth Position: | 6h |
| Protection Type: | IP44 Rain Resistance | Product Weight: | 523g/pc |
| Highlight: | plug and socket connectors,iec 60309 plugs and sockets |
||

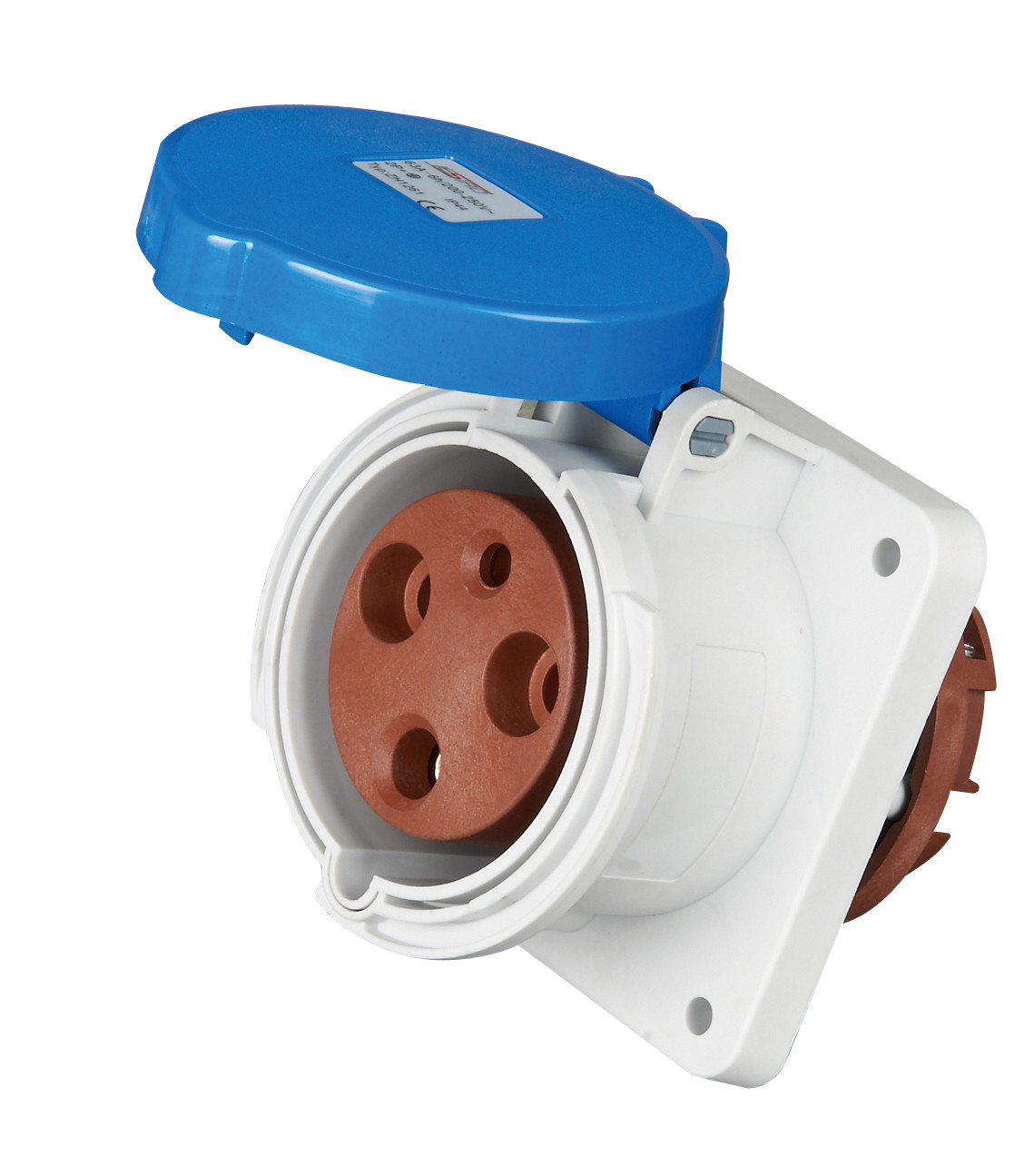

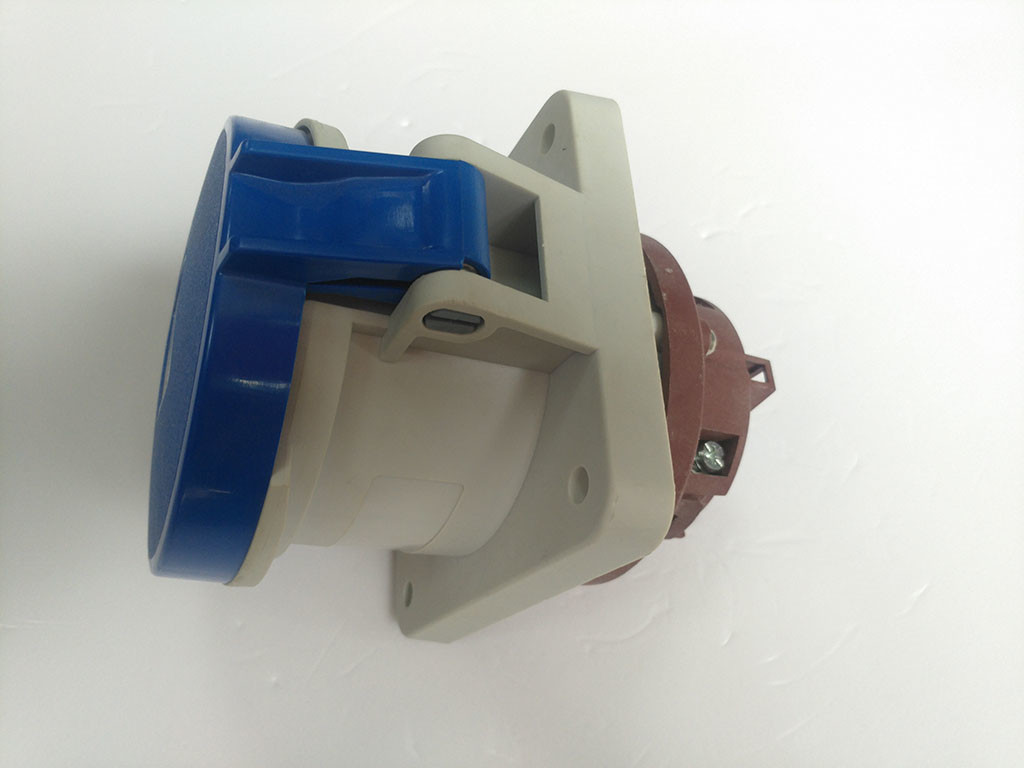

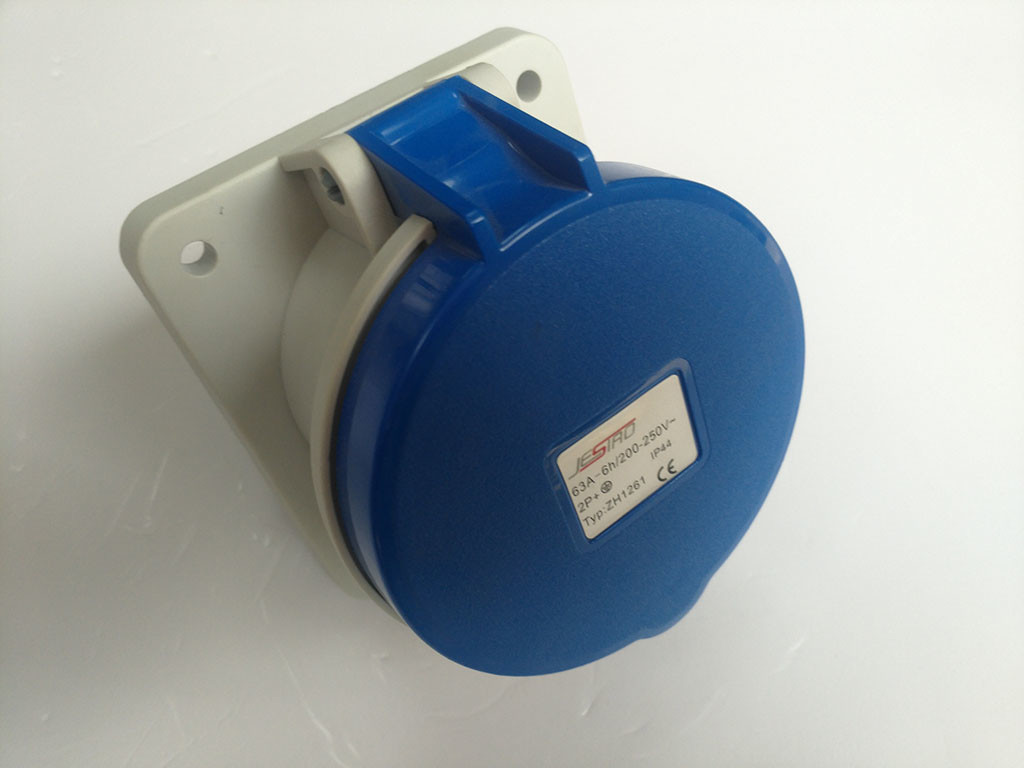

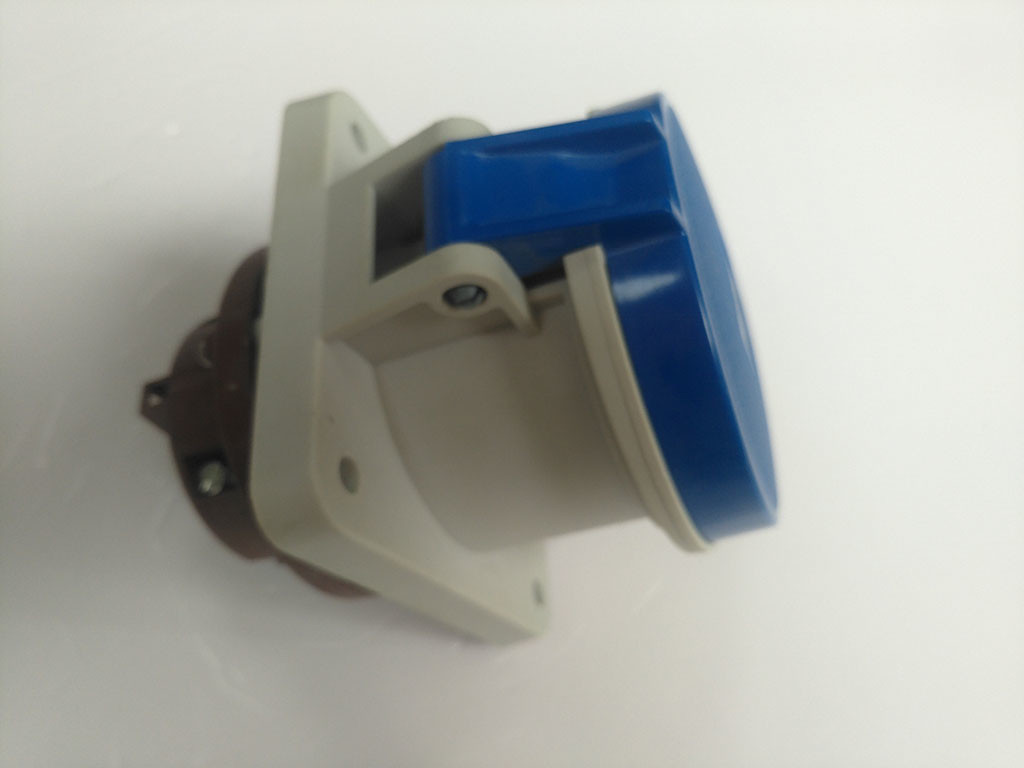

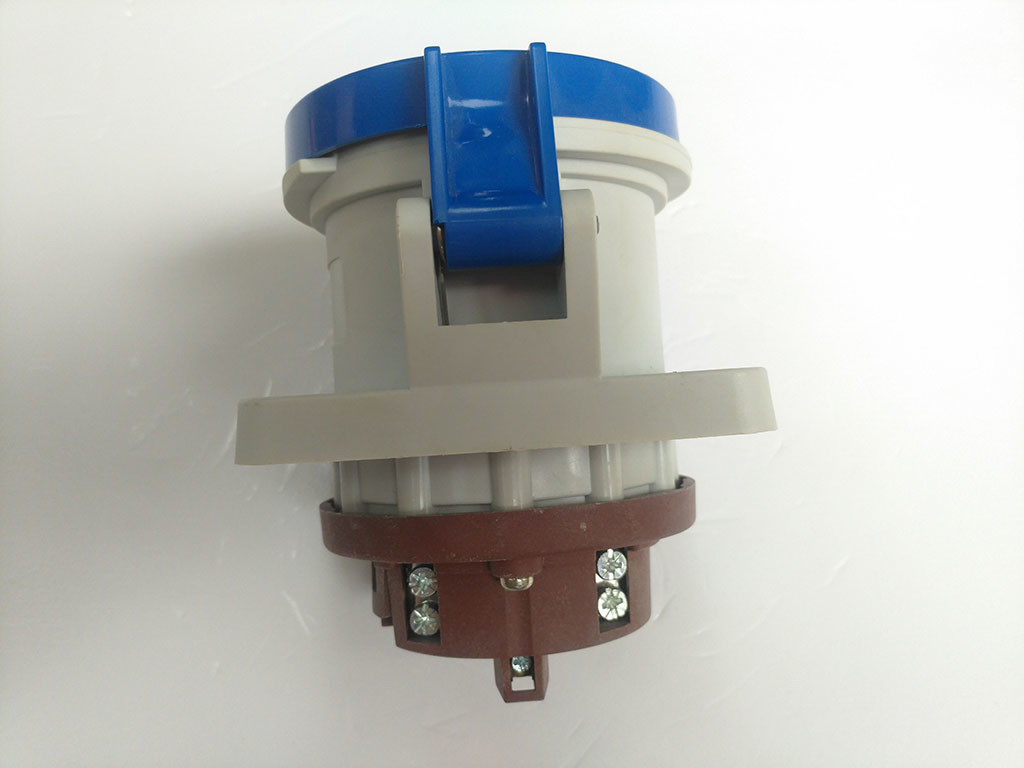

3P 63A IP44 Water Protected Flush Mounted Straight Industrial Receptacle 3rd Generation Industrial Socket part no. 1261
Main Benefits:
Main Features:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 1260 | 1261 | 1262 | 5 | 523 | |||
| 4 | 1246 | 1247 | 1248 | 1249 | 5 | 562 | |||
| 5 | 1250 | 1251 | 1252 | 5 | 629 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | h1 | k | i | |
| 63A | 3 | 107 | 100 | 80 | 85 | 77 | 6 | 12 | 2 | 103 | - | 55 | 88 | |
| 4 | 107 | 100 | 80 | 85 | 77 | 6 | 12 | 2 | 113 | - | 55 | 88 | ||
| 5 | 107 | 100 | 80 | 85 | 77 | 6 | 12 | 2 | 113 | - | 55 | 88 | ||
| Conductor cross-sectional area(mm²)Min To Max 10-16 | ||||||||||||||
Picture:
