| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 294 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Plug | Pole: | 4 Pins |
|---|---|---|---|
| Voltage: | 400 Volts | Current: | 32 Amps |
| Frequency: | 50-60HZ | IP Rating: | IP67 Watertight |
| Highlight: | waterproof electrical plugs and sockets,iec 60309 plugs and sockets |
||
4P 32A IP67 Weatherproof Red 3rd Generation Industrial Plug Screwless China Manufacturer part no. 294
The plugs and sockets for industrial applications comply with European standards:
EN 60309-1
Plugs, sockets-outlets and couplers for industrial purposes
Part 1: General requirements
EN 60309-2
Plugs, sockets-outlets and couplers for industrial purposes
Part 2: Dimensional interchangeability requiresements for pin and contact-tube accessories of harmonised configurations.
Part no. 294
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 289 | 290 | 291 | 10 | 292 | ||||
| 4 | 292 | 293 | 294 | 2175 | 295 | 296 | 297 | 10 | 310 | |
| 5 | 298 | 299 | 300 | 10 | 356 |
| Current | Poles | a | b | c | d | e | f | g | ||
| 32A | 3 | 170 | 141 | 32.5 | 93.3 | 51 | 25 | 62.2 | ||
| 4 | 170 | 141 | 32.5 | 93.3 | 51 | 25 | 62.2 | |||
| 5 | 177 | 148 | 32.5 | 101 | 56.5 | 30.3 | 68.7 | |||
| Conductor cross-sectional area (mm²) Min To Max 4-6 | ||||||||||
Product Dimension:

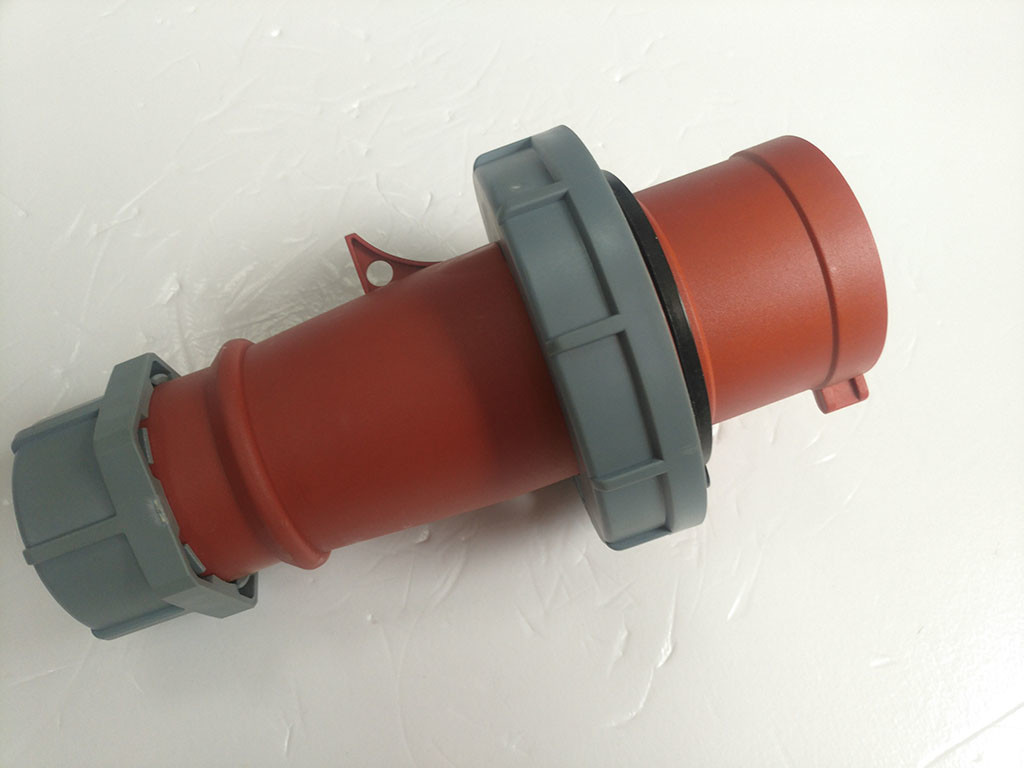

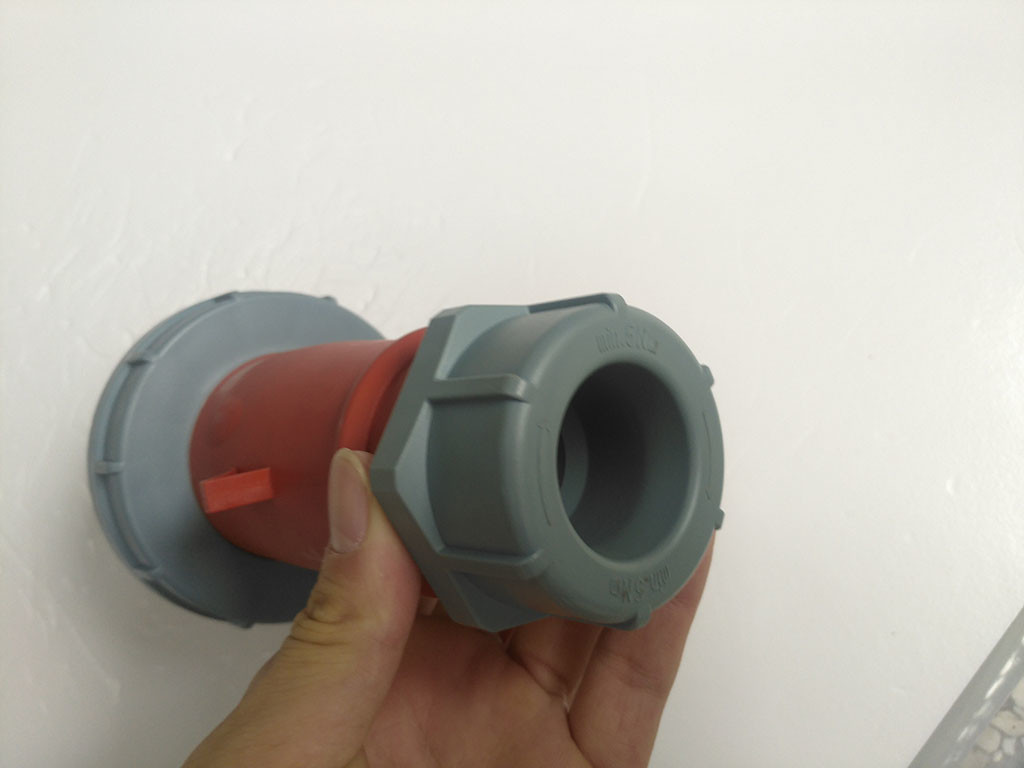

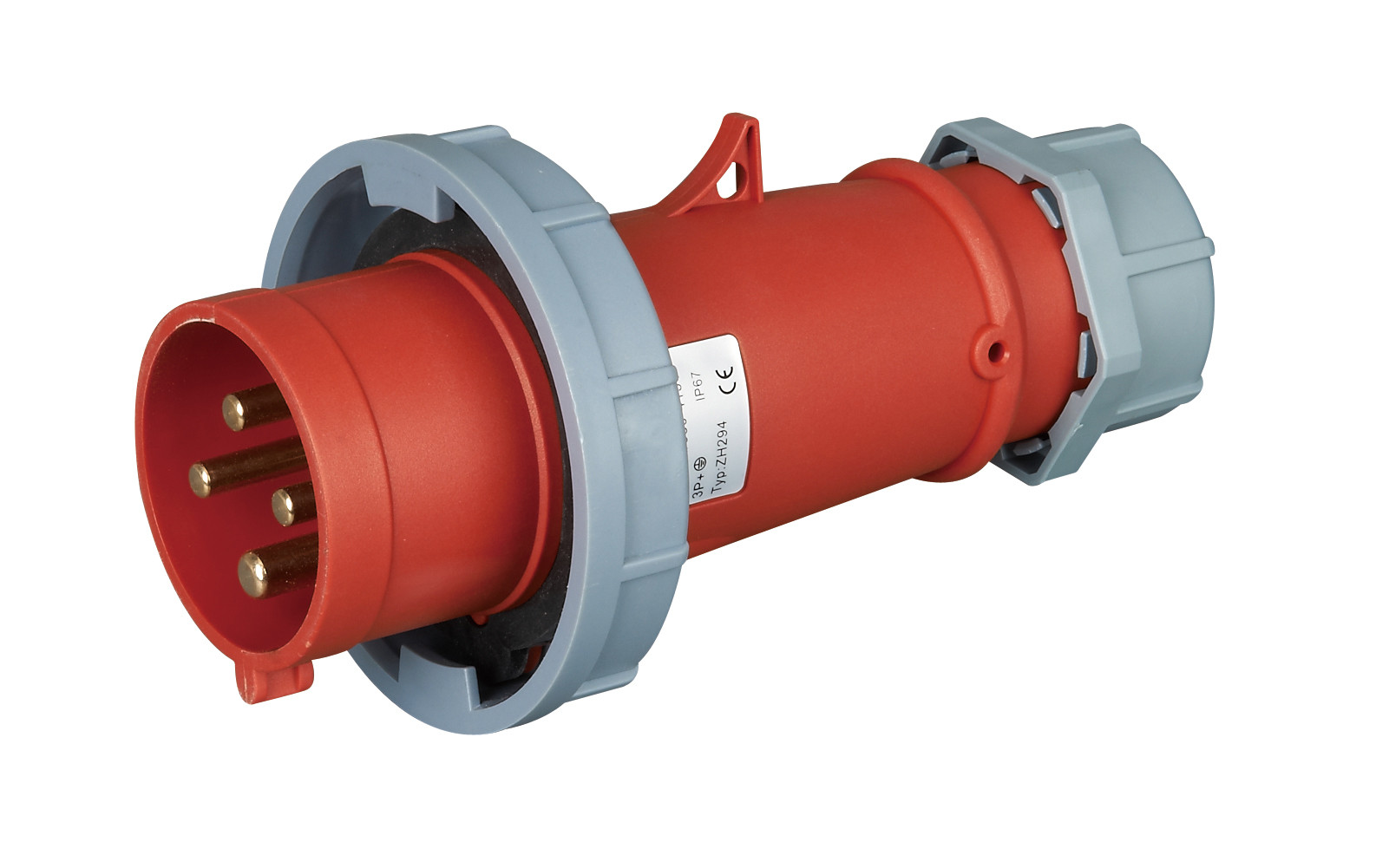

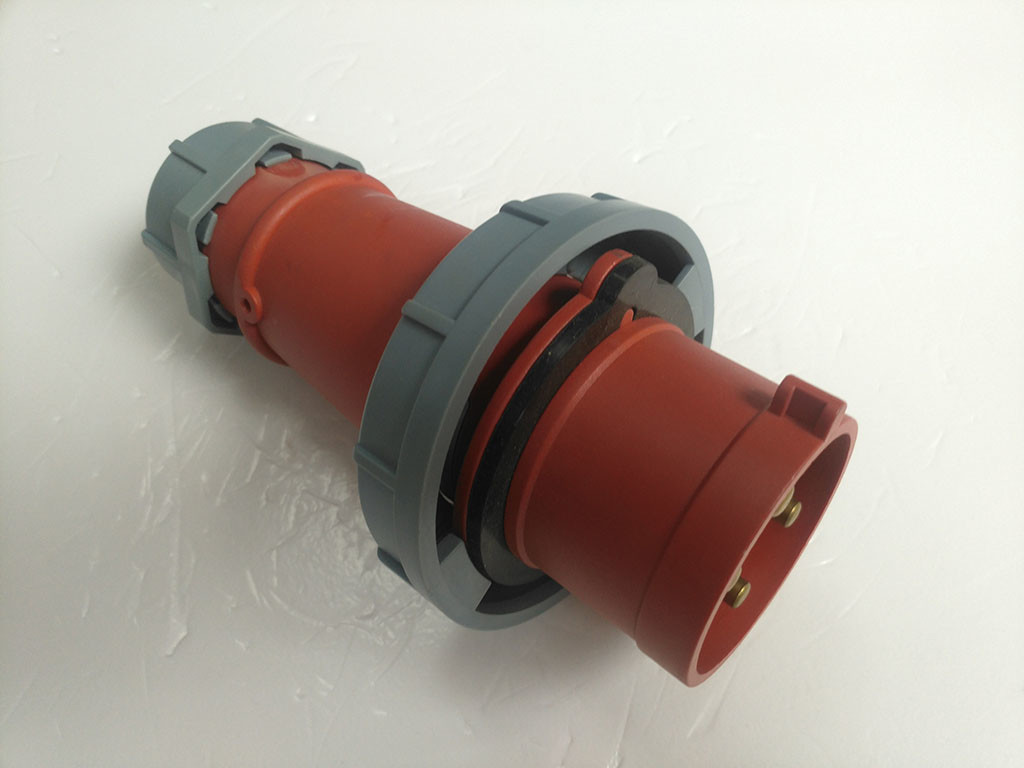

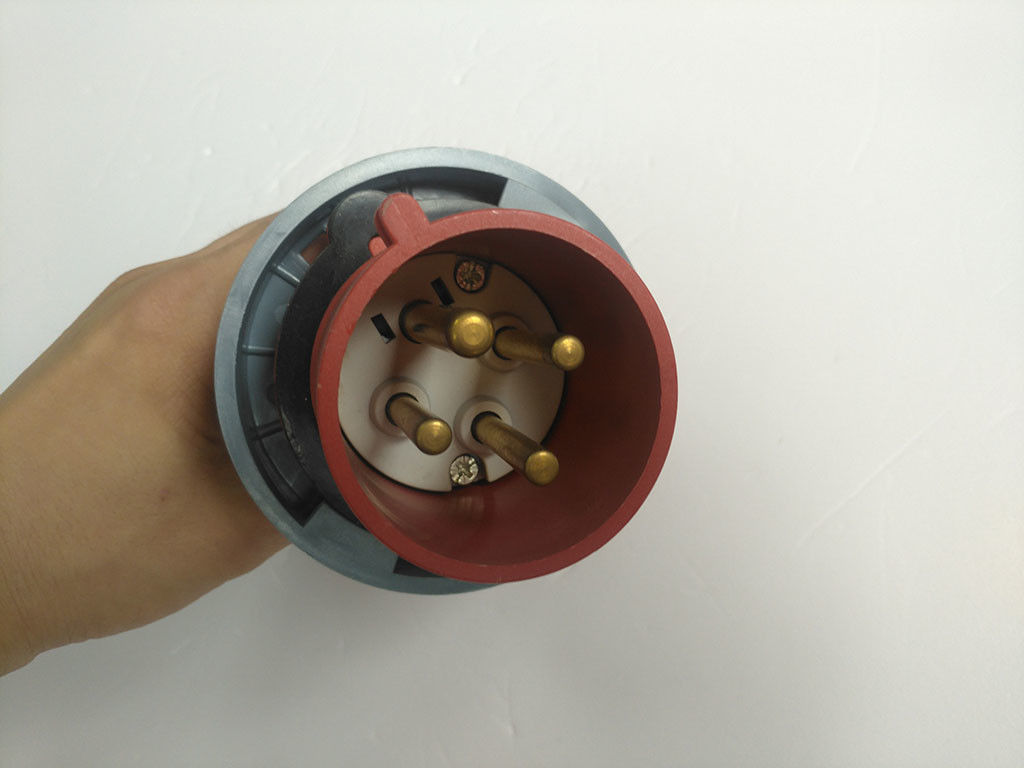

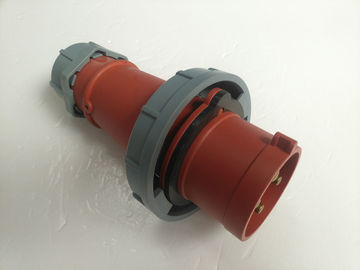

Picture:
