| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1151 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Socket | Poles & Voltage: | 4P 400V |
|---|---|---|---|
| Current: | 63A | Protection Grade: | IP44 Rain Resistance |
| Frequency: | 50-60Hz | Type: | Slanting |
| Weight: | 567g/pc | ||
| Highlight: | waterproof electrical plugs and sockets,iec 60309 plugs and sockets |
||

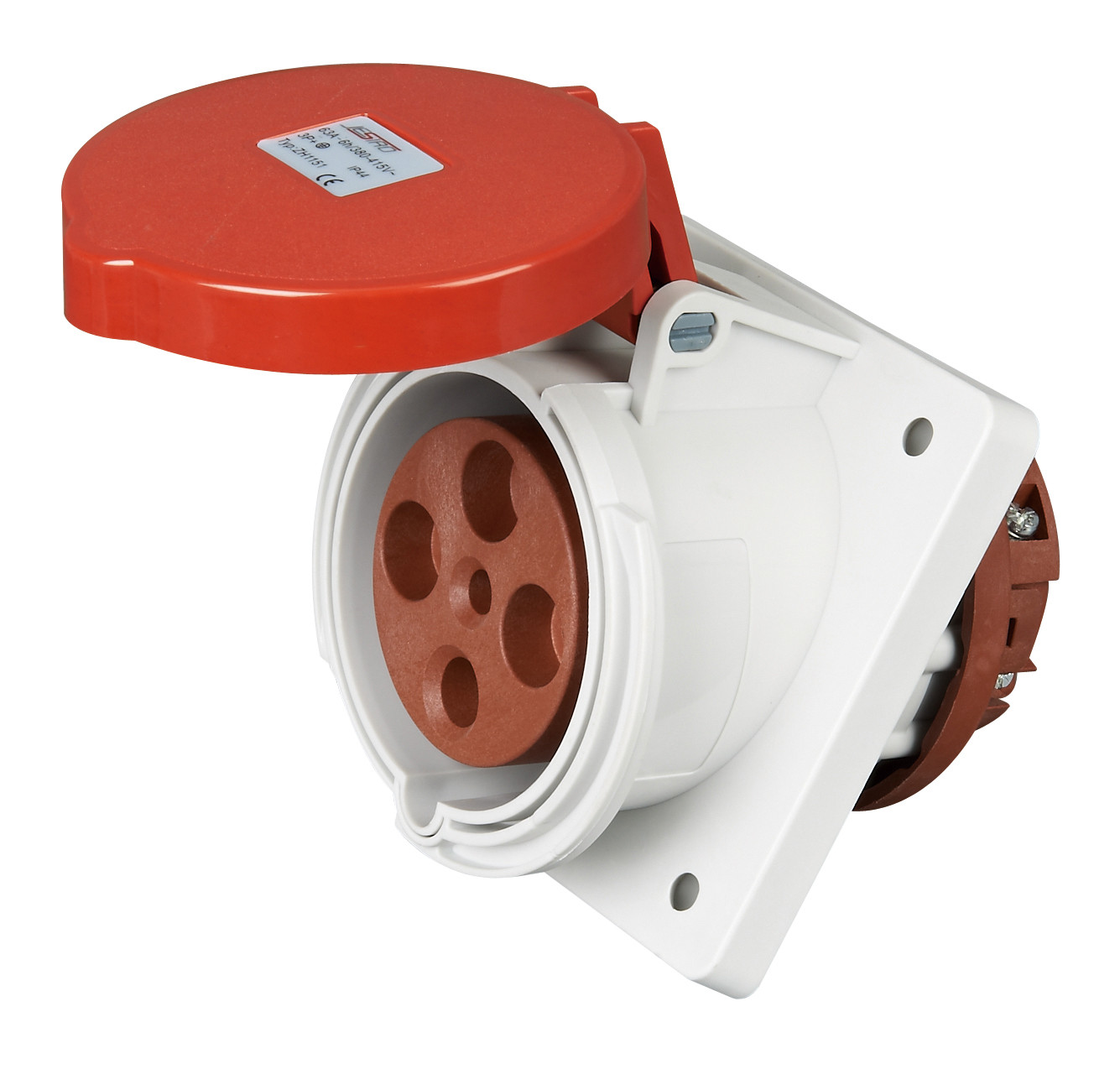

4P 63A IP44 Weather Protection Panel Mounted Red Receptacle Bevel PA Industrial Socket with Cover part no. 1151
Features:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 1146 | 1147 | 1148 | 5 | 520 | |||
| 4 | 1149 | 1150 | 1151 | 1152 | 5 | 567 | |||
| 5 | 1153 | 1154 | 1155 | 5 | 625 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | k | l | l1 | α | |
| 63A | 3 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 112 | 69 | 91 | 102 | 20° | |
| 4 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 112 | 69 | 91 | 102 | 20° | ||
| 5 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 112 | 69 | 91 | 102 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 10-16 | |||||||||||||||

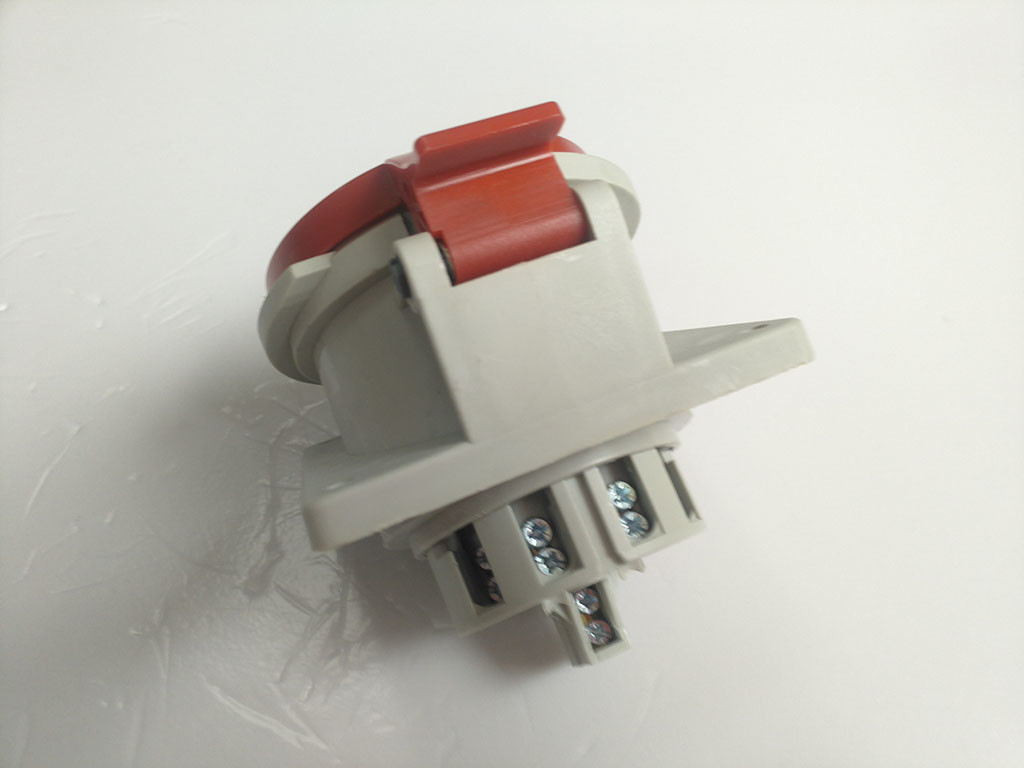

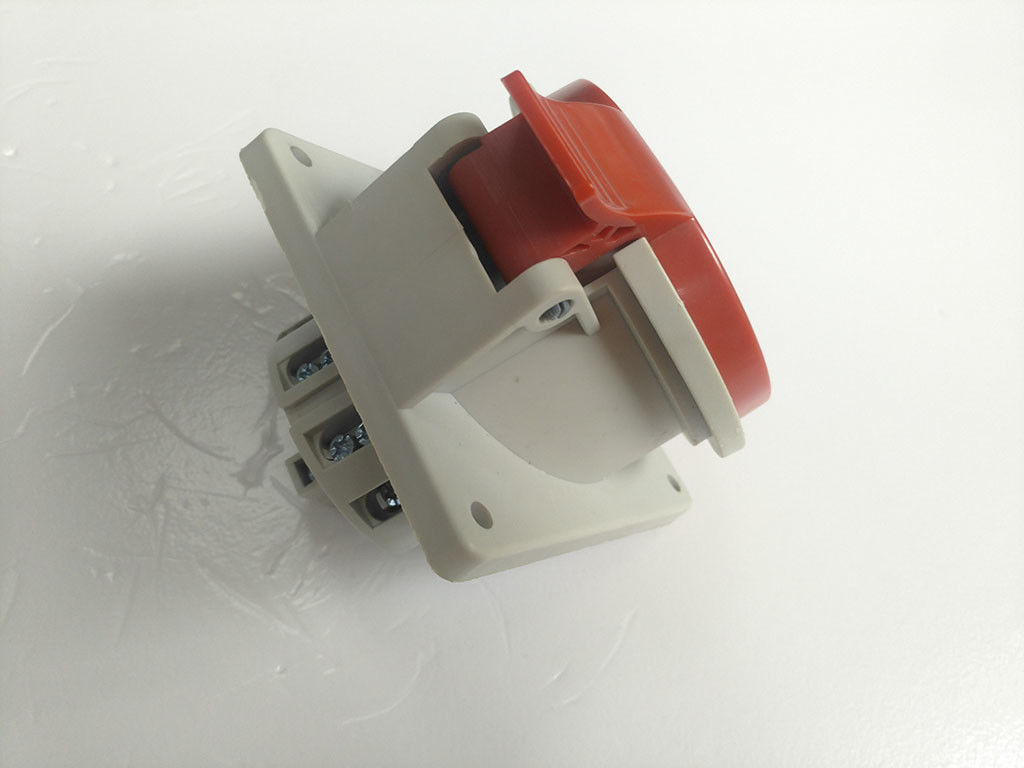

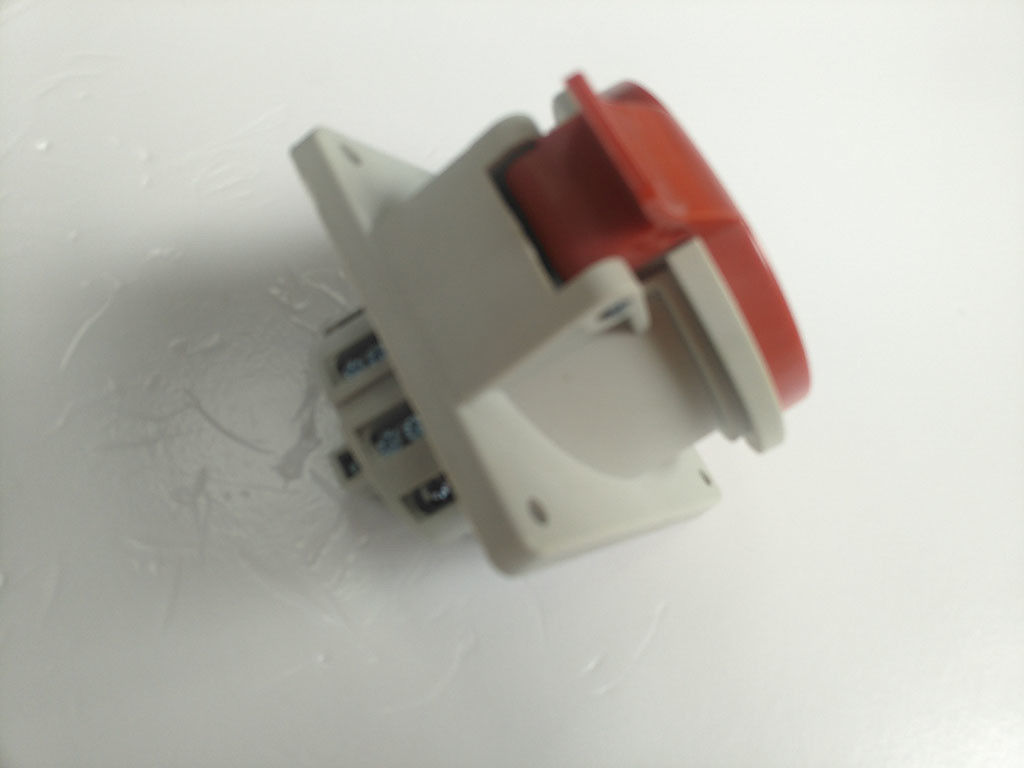

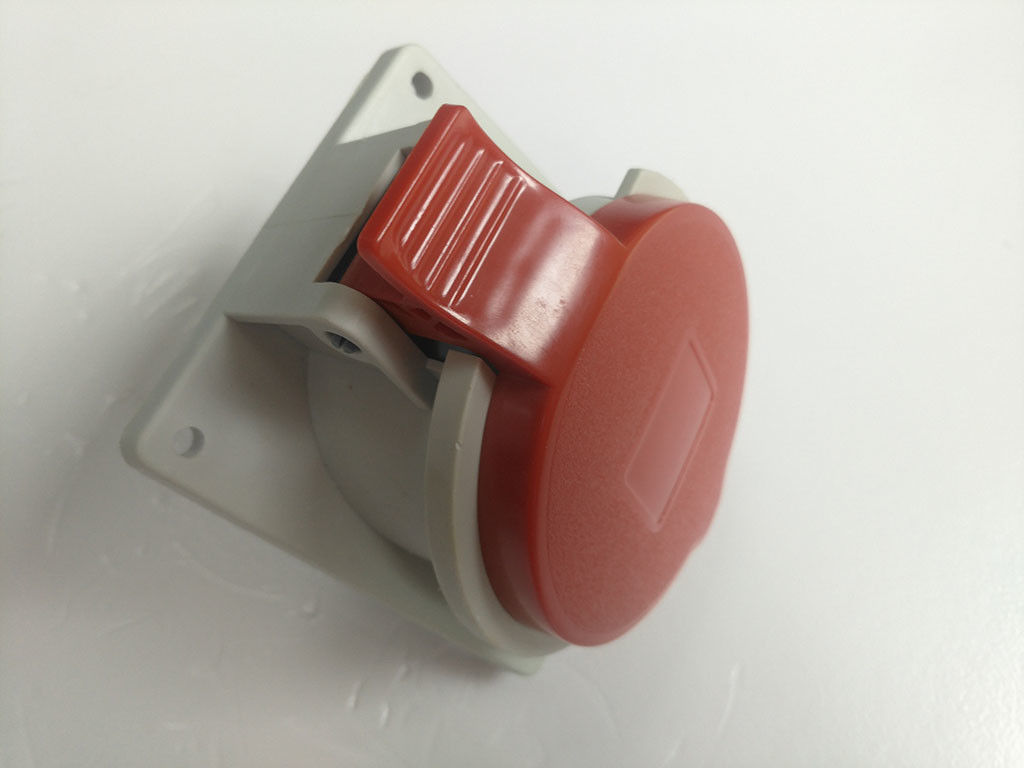

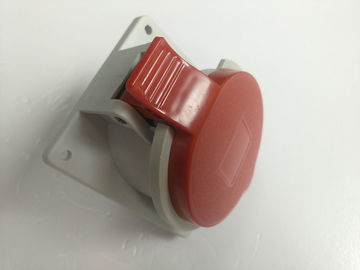

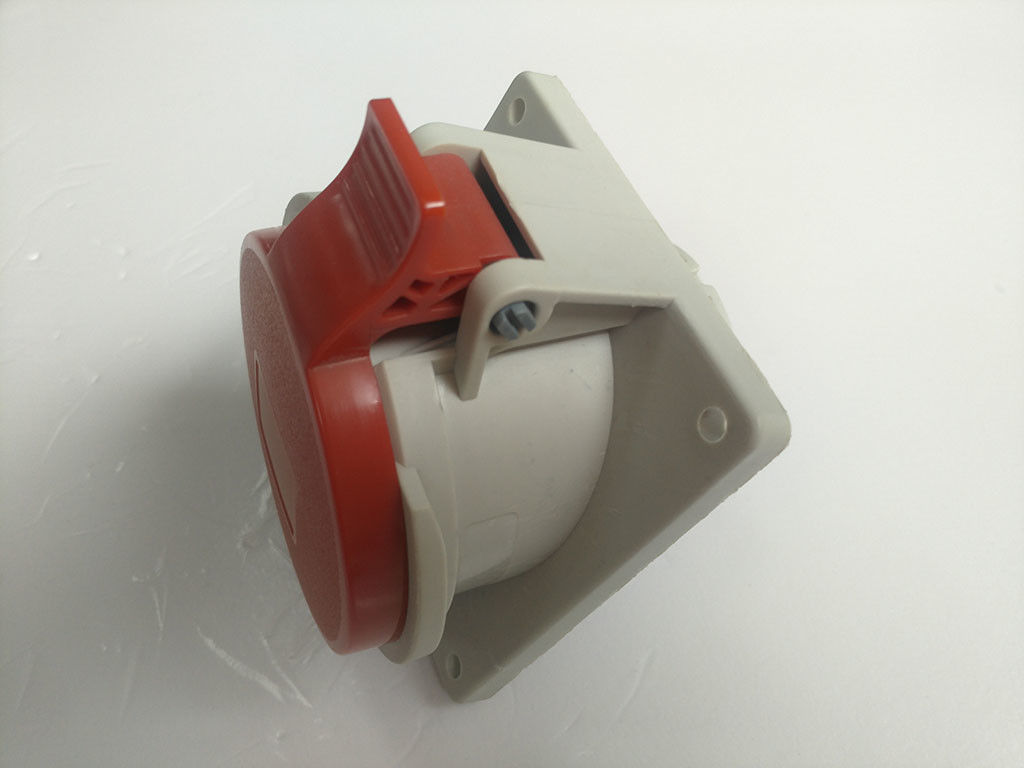

Picture:
