Name: | Industrial Socket | Pin: | 4 Pins |
---|---|---|---|
Current And Voltage: | 63AMP 400VOLT | Hertz: | 50-60 Hz |
Protection Type: | IP67 Water Resistant | Type: | Inclination |
Highlight: | waterproof electrical plugs and sockets,iec 60309 plugs and sockets |
4P 63A IP67 Weather Protected Panel Mount Red Industrial Receptacle Slanting Industrial Socket with Cover part no. 212
Description:
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
125A | 3 | 3575 | 5 | 975 | ||||||
4 | 210 | 211 | 212 | 213 | 5 | 1028 | ||||
5 | 214 | 215 | 216 | 5 | 1076 |
Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l 1 | α | |
125A | 3 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | |
4 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | ||
5 | 114 | 110 | 85 | 90 | 90 | 6.2 | 13 | 2 | 135 | 135 | 47 | 100 | 107 | 20° | ||
Conductor cross-sectional area(mm²)Min To Max 25-35 |

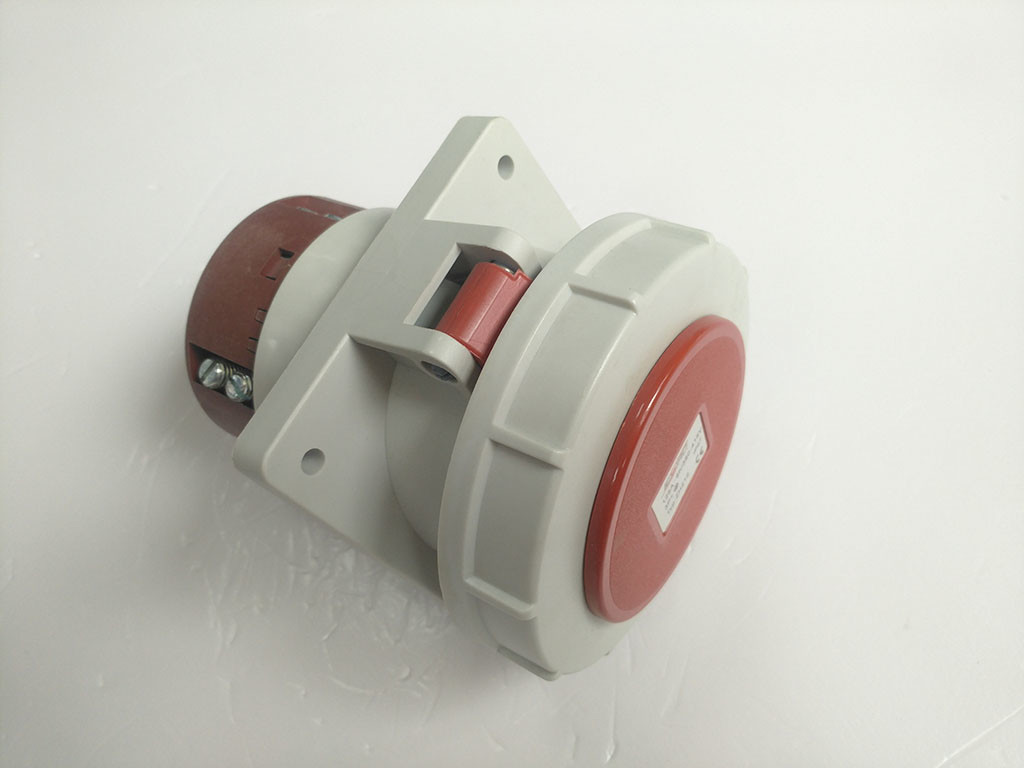

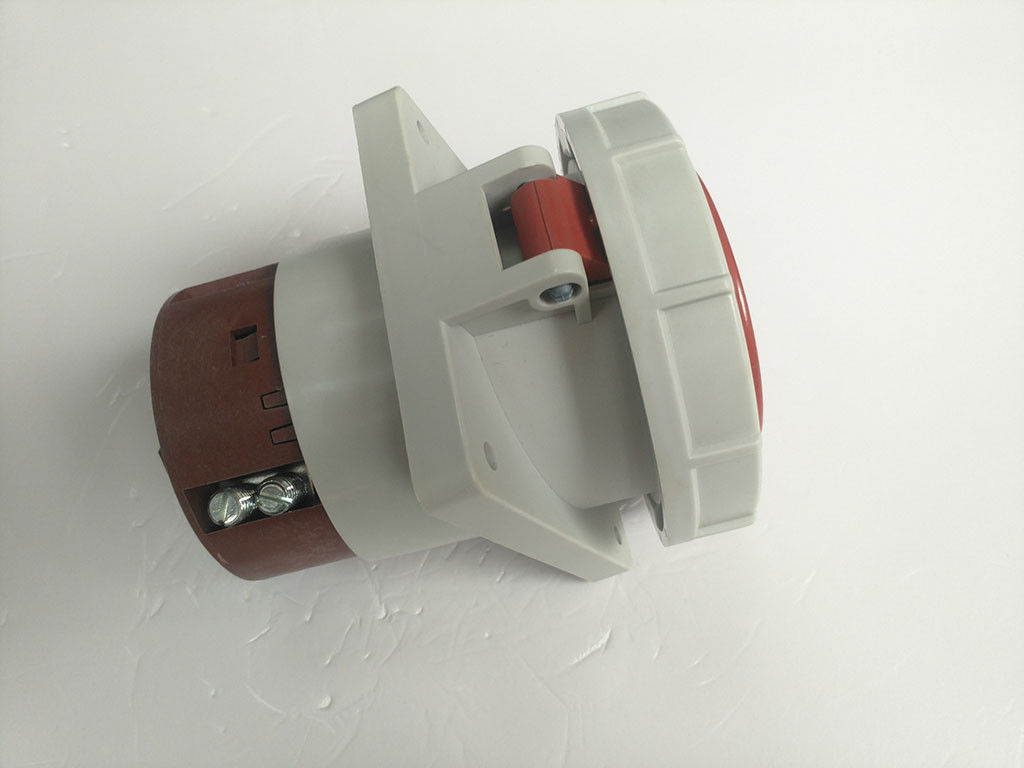

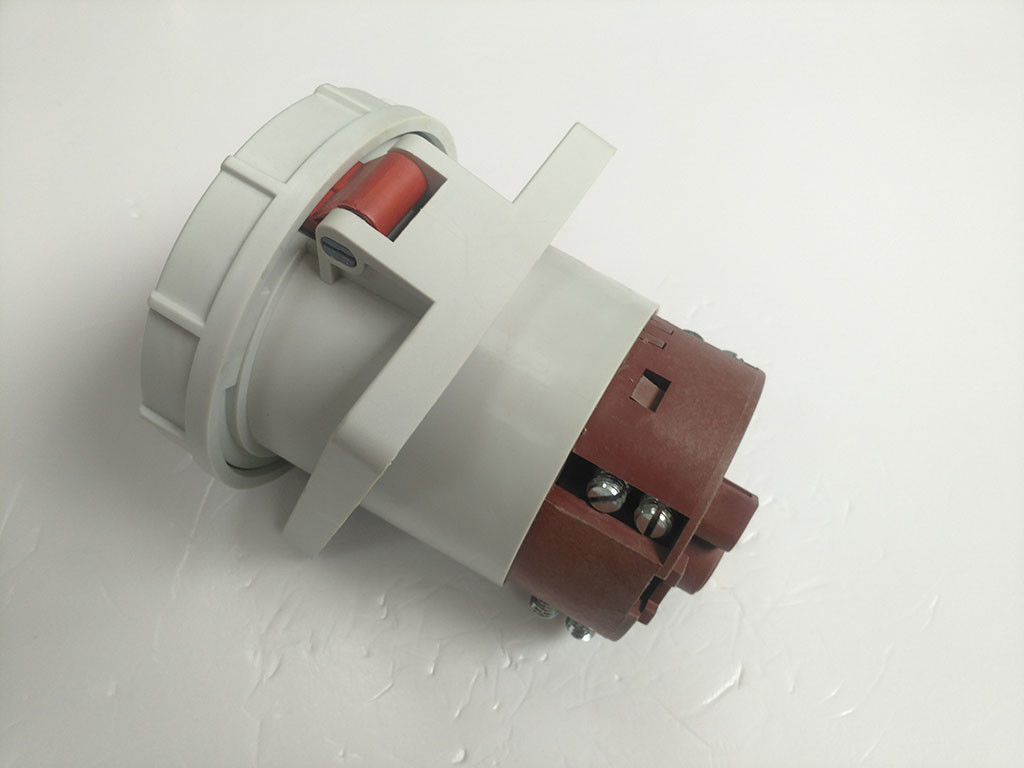

Picture:
