| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1385 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Receptacle | Poles & Current: | 5pins 16Amps |
|---|---|---|---|
| Voltage: | 400volts | Frequency: | 50-60Hz |
| Protection Grade: | IP44 Weatherproof | Weight: | 179g/pc |
| Highlight: | plug and socket connectors,waterproof electrical plugs and sockets |
||
5P 16A IP44 Rainproof Panel Mounted Red Cover Receptacle Industrial Sockets Straight Screw-less Type part no. 1385
Nominal current:
Nominal voltage:
Frequency: 50-60Hz
Insulating voltage: 250V (type 3A) – 500V (type 3C)
Degree of protection: IP44 IPXXD (type 3A socket, type 3C plug and socket not connected)
Operating temperature: -30°C +50°C
Minimum temperature: -35°C
Maximum temperature: +60°C
Glow Wire test / UL94:
850°C/V1 (type 3A)
850°C-960°C/V1-V0 (type 3C)
Material: Technopolymer
IK degree at 20°C: IK07 (type 3A) – IK08 (type 3C)
Number of poles:
L1-N-E-CP (type 3A)
L1-L2-L3-N-E-CP-PP (type 3C)
Saline solution: Resistant
UV rays: Resistant
Part no. 1385
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 1628/1365 | 1629/1366 | 1367 | 3054 | 3055 | 10 | 134 | |
| 4 | 1388 | 1389 | 1390 | 1391 | 1392 | 1393 | 10 | 155 | |
| 5 | 1384 | 1386 | 1385 | 3057 | 13059 | 3060 | 10 | 179 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | h1 | k | i | |
| 16A | 3 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 68 | 1 | 28 | 50 | |
| 4 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 77 | 5 | 28 | 54 | ||
| 5 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 85 | 9 | 28 | 57 | ||
| Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 | ||||||||||||||
Product Dimension:

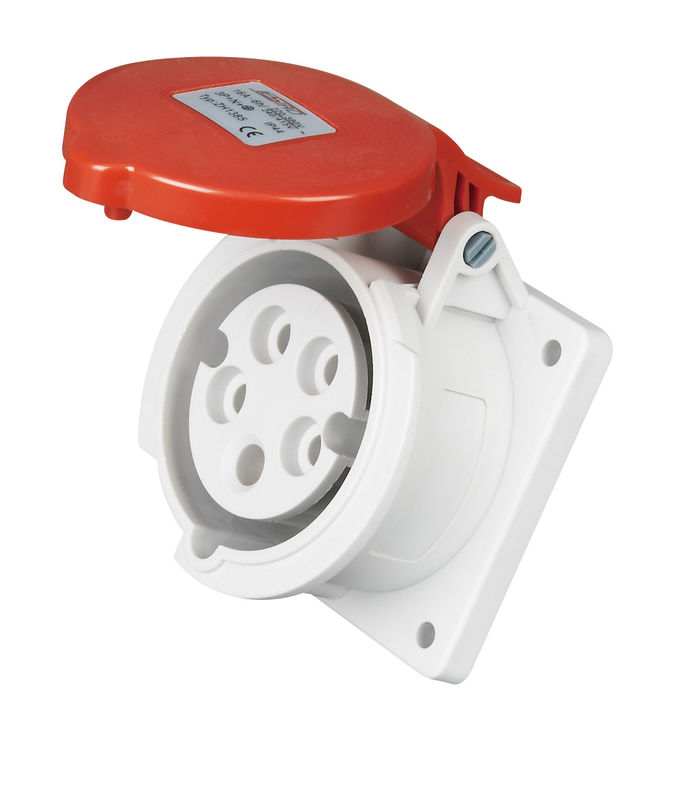

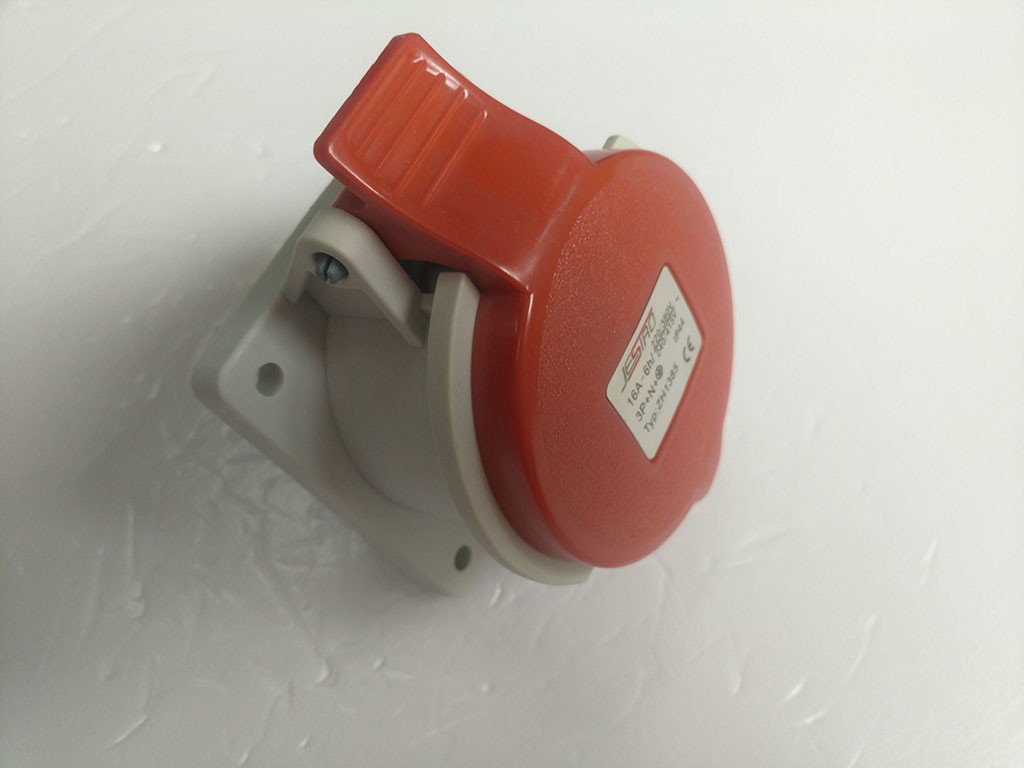

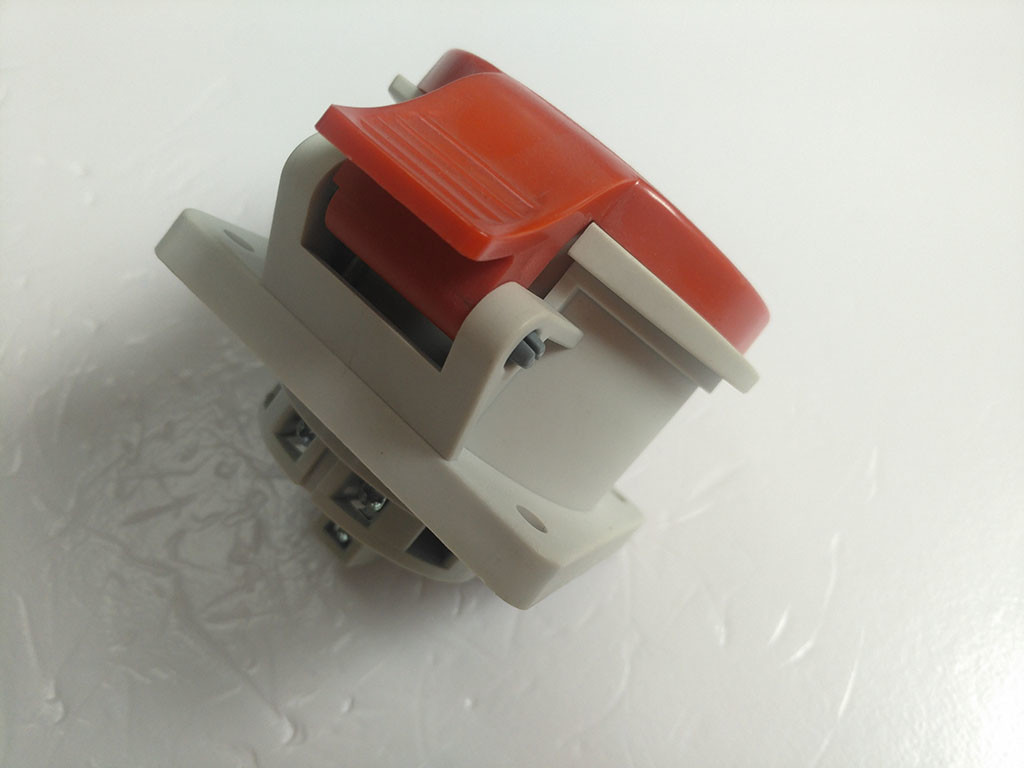

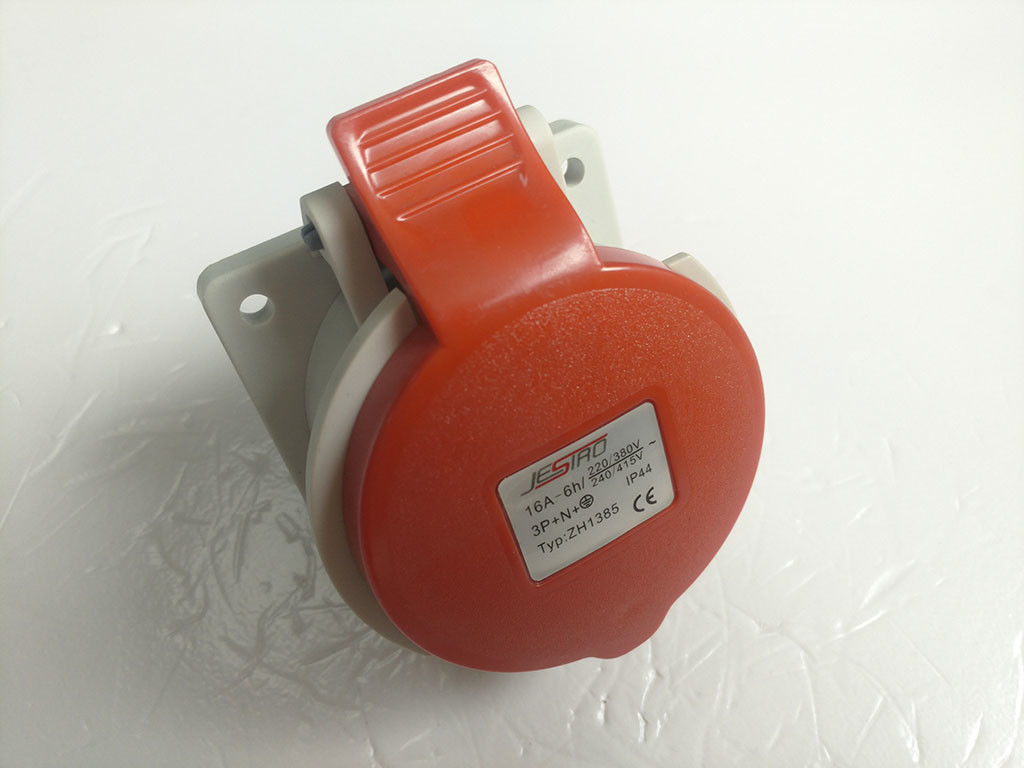

Picture:
