| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 3 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Plugs | Poles: | 5P |
|---|---|---|---|
| Current Voltage: | 16A 400volts | Frequency: | 50-60hz |
| Protection Grade: | IP44 Rain Protected | Earth Position: | 6h |
| Highlight: | waterproof electrical plugs and sockets,iec 60309 plugs and sockets |
||
5P 16A IP44 Weather Protected Red Body Screwless Industrial Plug Easy Installation 400 Volts part no. 3
Description:
Plugs and sockets manufactured according to these standards are in use today across Europe, in the Middle East, Africa, the Pacific Rim, the Far East, North and South America. A further extension of the international standardisation of plugs and sockets for industrial applications will doubtless lead to simplification in the exchange of goods and services. For instance, manufacturing machines will be fitted with plugs that can match the sockets installed in any country, refrigerated containers will always find ports equipped for connection of compressors. Campers, caravans, leisure boats, electric cars will have no problems plugging into power supply posts when travelling abroad.
Part no. 3
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 247 | 248 | 249 | 2168 | 2271 | 10 | 133 | |
| 4 | 250 | 251 | 252 | 253 | 254 | 255 | 10 | 151 | |
| 5 | 256 | 257 | 3 | 2014 | 2189 | 2243 | 10 | 179 |
| Current | Poles | a | b | c | d | e | f | g | |
| 16A | 3 | 137 | 110 | 43.5 | 38.5 | 17.5 | 47 | 58 | |
| 4 | 140 | 116 | 49.5 | 43.8 | 21.5 | 52 | 66.7 | ||
| 5 | 144 | 121 | 56 | 50 | 26.5 | 60 | 75 | ||
| Conductor cross-sectional area (mm²) Min To Max 1.5-2.5 | |||||||||
Product Dimension:

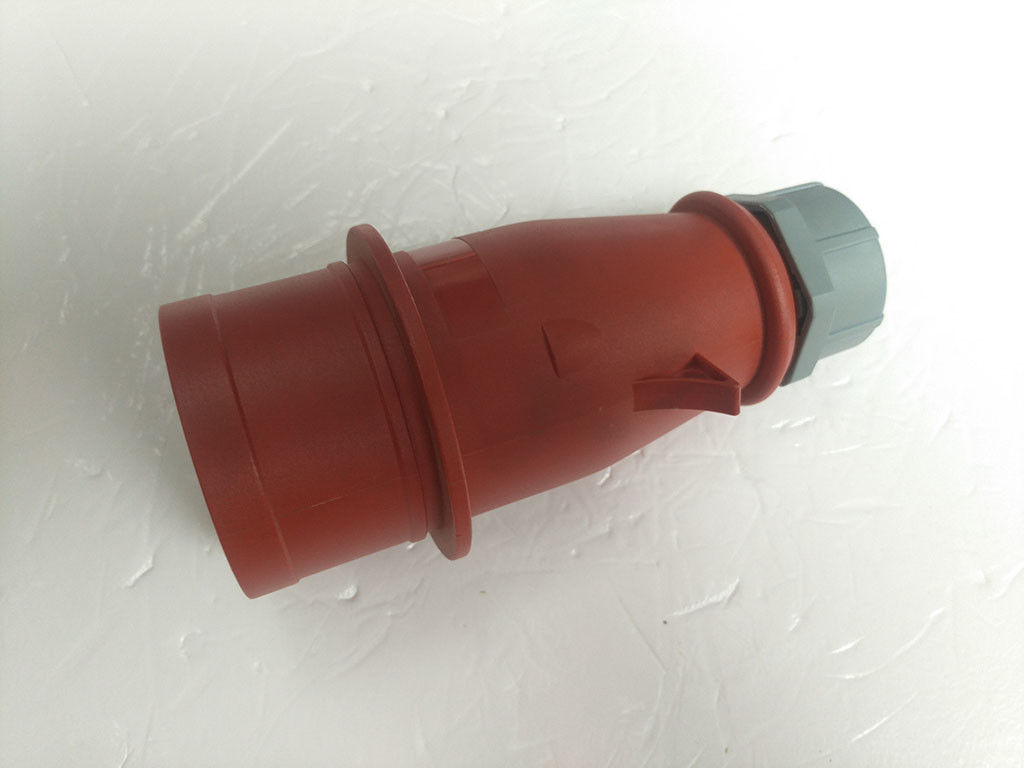

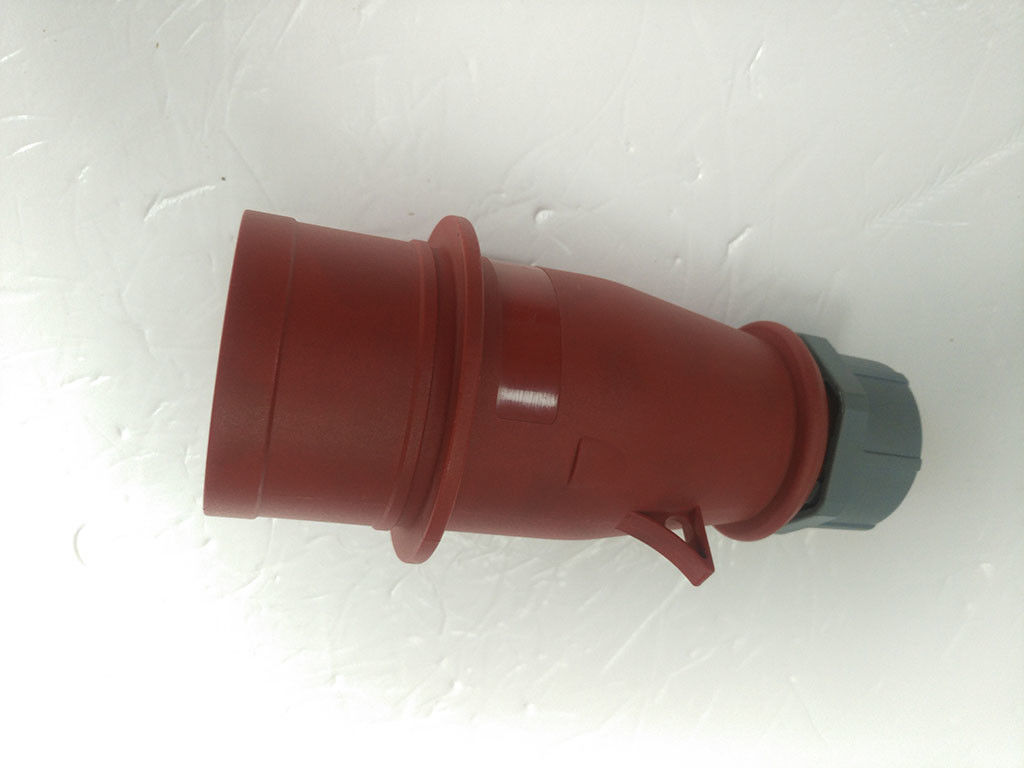

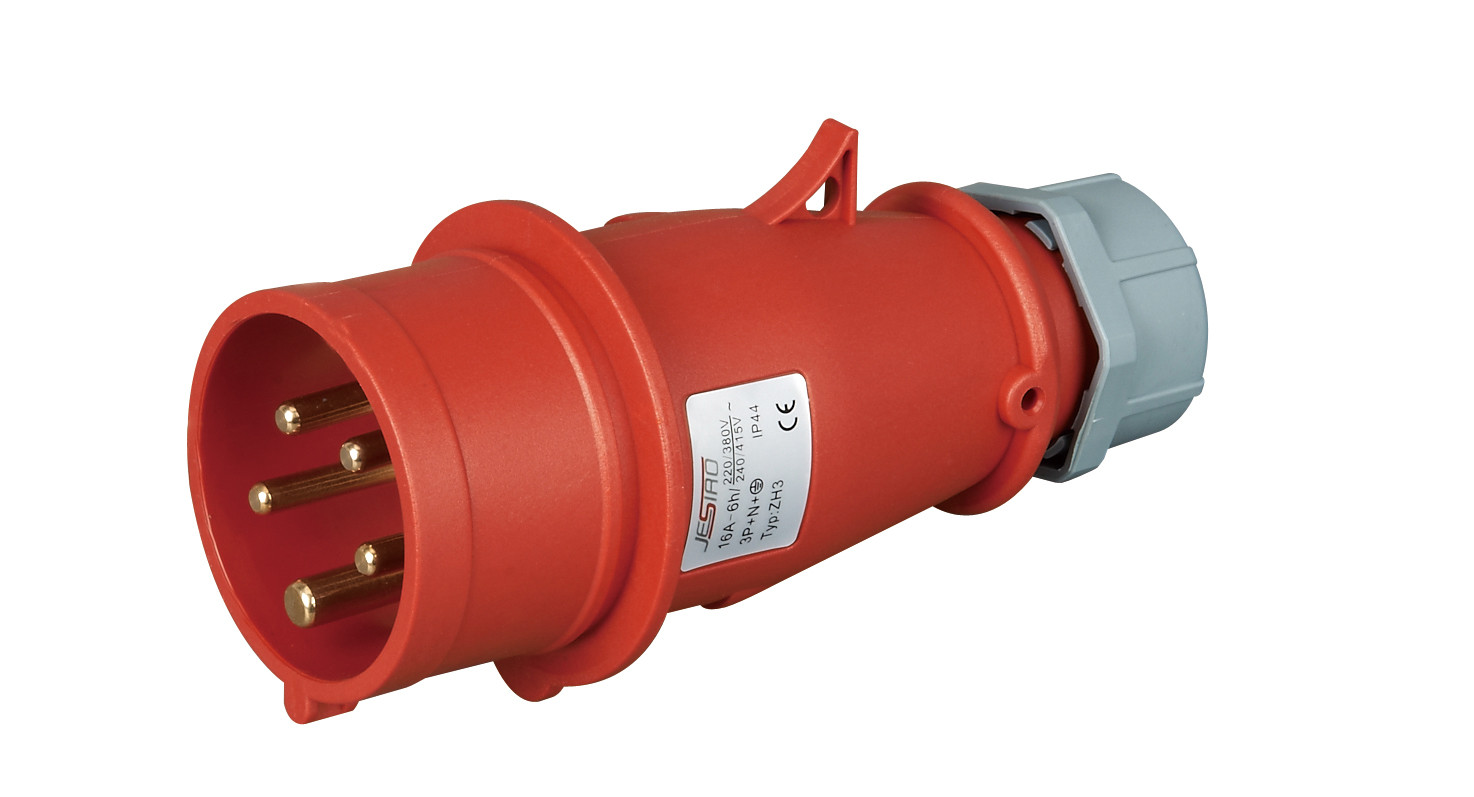

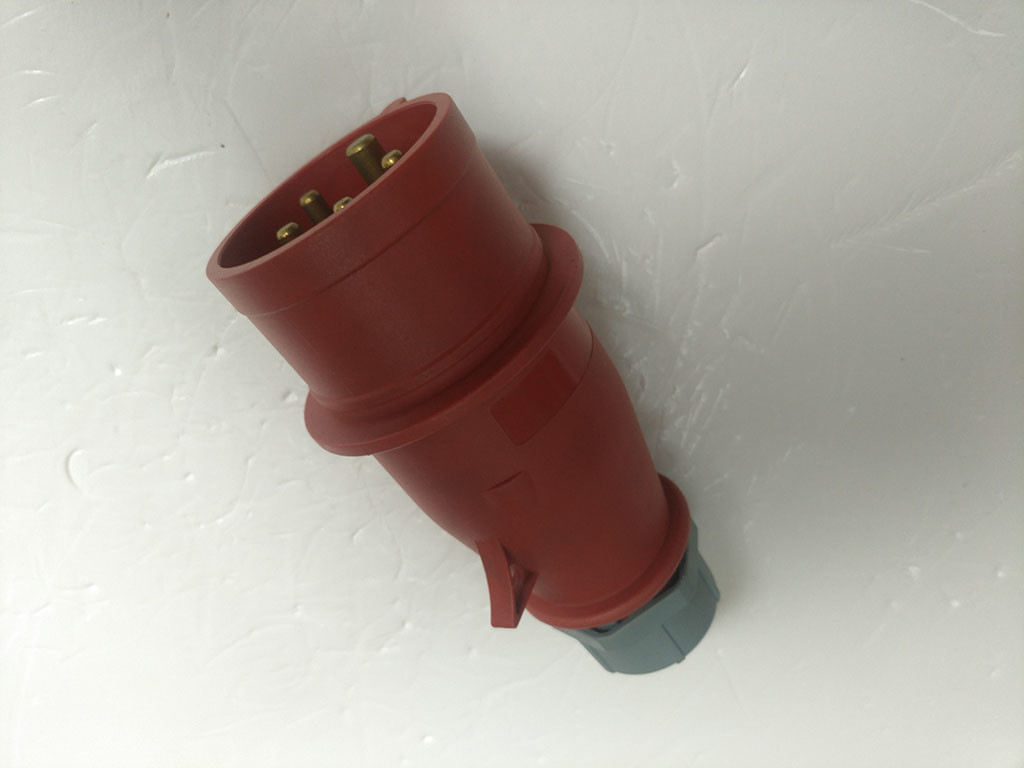

Picture:
