| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1500 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Description: | Industrial Socket | Pole: | 5 Pins |
|---|---|---|---|
| Voltage & Ampere: | 32 Amp 400 Volts | Frequency: | 50-60Hz |
| Protection Type: | IP44 Water Resistance | Product Weight: | 288 G/pc |
| High Light: | waterproof electrical plugs and sockets,iec 60309 plugs and sockets |
||
5P 32A IP44 Rain Resistant Panel Mounted Industrial Socket with Red Cover Inclination Receptacle part no. 1500
Features:
Specifications:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 1491 | 1492 | 1493 | 3201 | 3202 | 10 | 236 | |
| 4 | 1494 | 1495 | 1496 | 1497 | 1489 | 1487 | 10 | 250 | |
| 5 | 1498 | 1499 | 1500 | 3191 | 3192 | 3193 | 10 | 288 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | k | l | l1 | α | |
| 32A | 3 | 100 | 92 | 62 | 85 | 77 | 5.3 | 8 | 2 | 107 | 51 | 73 | 85 | 20° | |
| 4 | 100 | 92 | 62 | 85 | 77 | 5.3 | 8 | 2 | 107 | 51 | 73 | 85 | 20° | ||
| 5 | 100 | 92 | 62 | 85 | 77 | 5.3 | 8 | 2 | 112 | 52 | 73 | 86 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 4-6 | |||||||||||||||
Product Dimension:

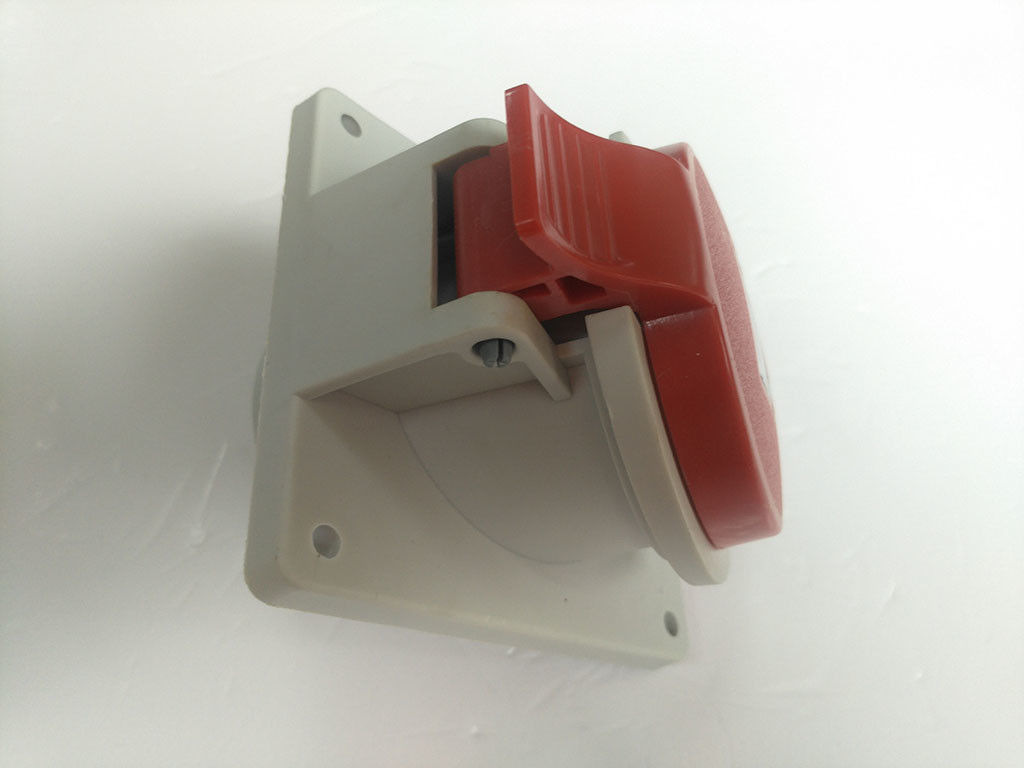

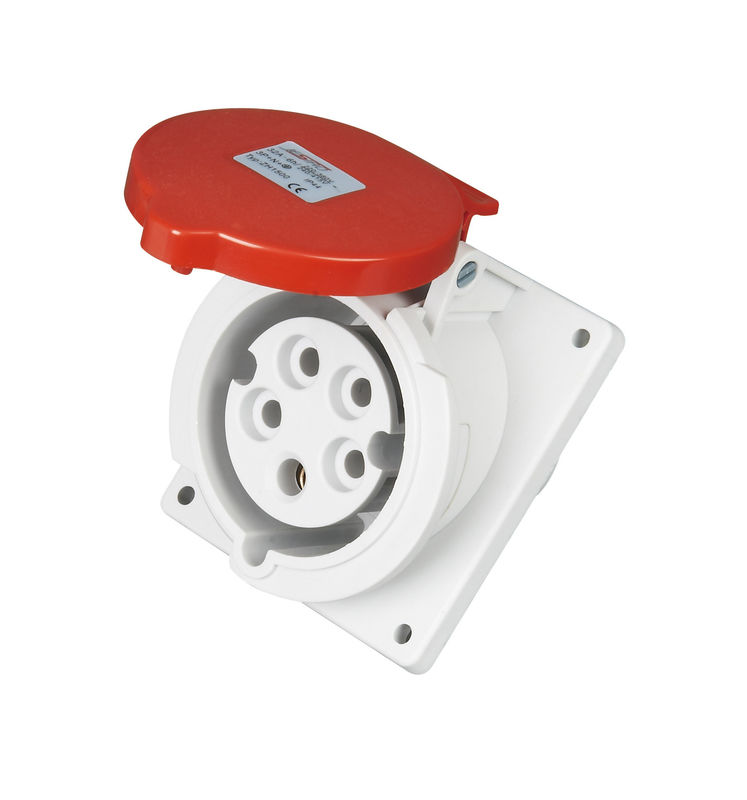

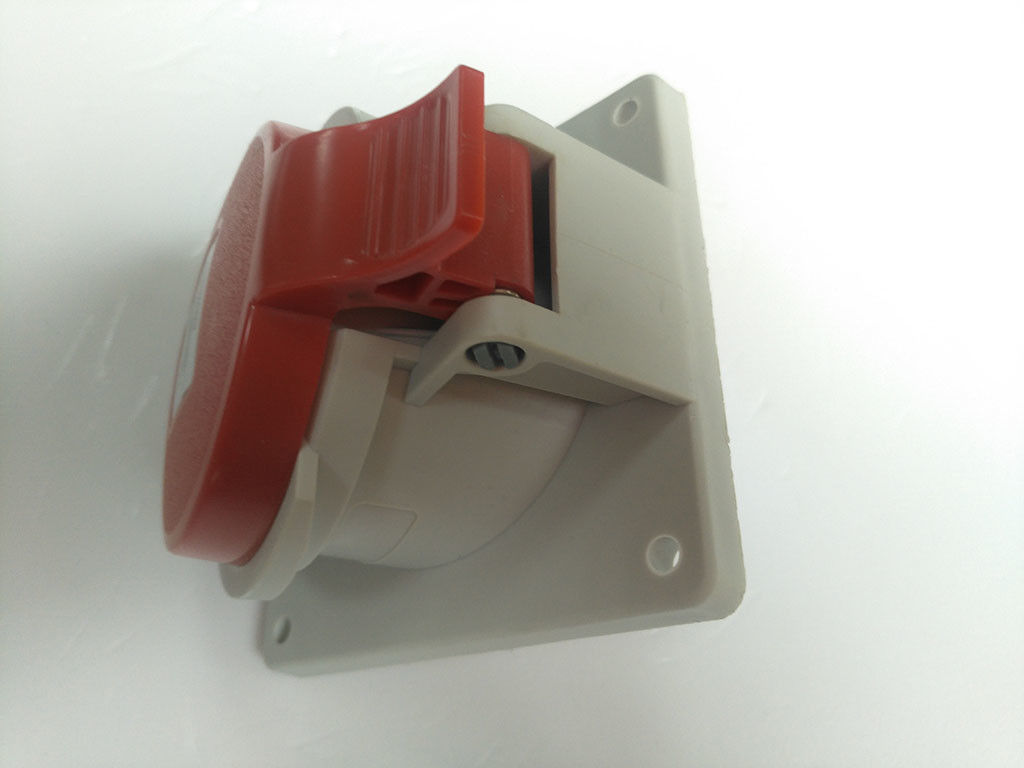

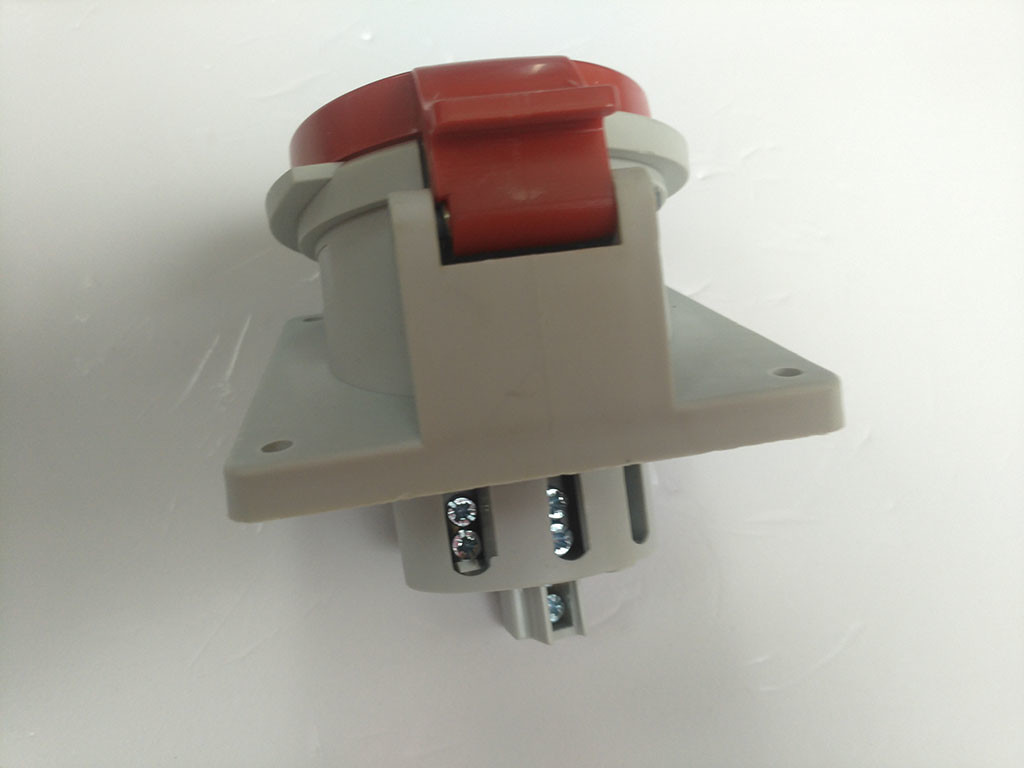

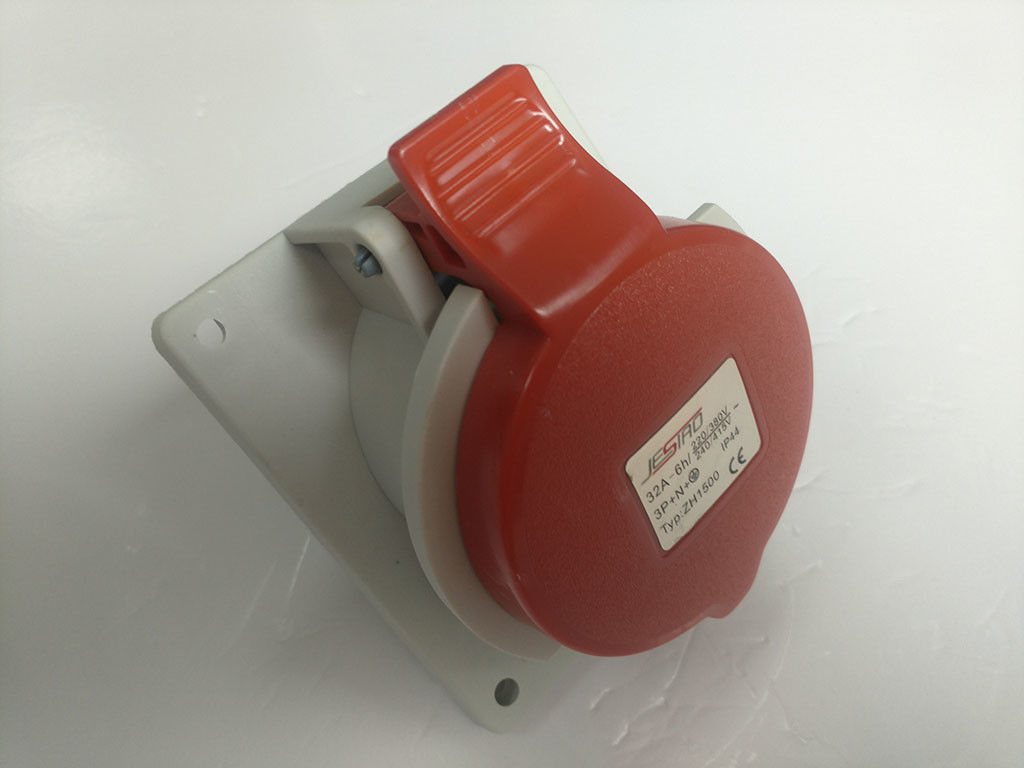

Picture:
