High Performance Industrial Plug Sockets Hinged Cover Liftable DIN Rails

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 3451
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Description: Receptacle Poles: 5 Pin
Voltage & Ampere: 400 Volts 32 Amps Earth Position: 6 H
Protection Grade: IP67 Waterproof Material: PA
High Light:

plug and socket connectors

,

iec 60309 plugs and sockets


Product Description

5P 32A IP44 Water Resistance Panel Mounted Receptacle 3rd Generation Industrial Socket Made in China part no. 3451



Features:



1. Liftable DIN rails.
Liftable DIN rails and a large, smooth wiring space significantly ease the insertion as well as connection of large cables.



2. One-man installation.
Shorter installation times with the new, user-friendly external fixing.



3. Hinged cover.
The hinged cover, which opens to one side, eases connection work.



4. Ready for application.
All combinations are pre-wired for installation and tested for electric safety and quality.



Part no. 3451





Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
32A 3 1394 1395 1396       10 224
4 1397 1398 1399 1400 1041 1042 10 245
5 3449 3454 3451 3425 3455 3447 10 245

Current Poles a b c d e f g. g.1 h h1 k i
32A 3 75 75 64 60 60 5.5 8 2 89 12 32 62
4 75 75 64 60 60 5.5 8 2 89 12 32 62
5 75 75 64 60 60 5.5 8 2 95 12 32 65
Conductor cross-sectional area(mm²)Min To Max 4-6


Product Dimension:

High Performance Industrial Plug Sockets Hinged Cover Liftable DIN Rails 0

Picture:

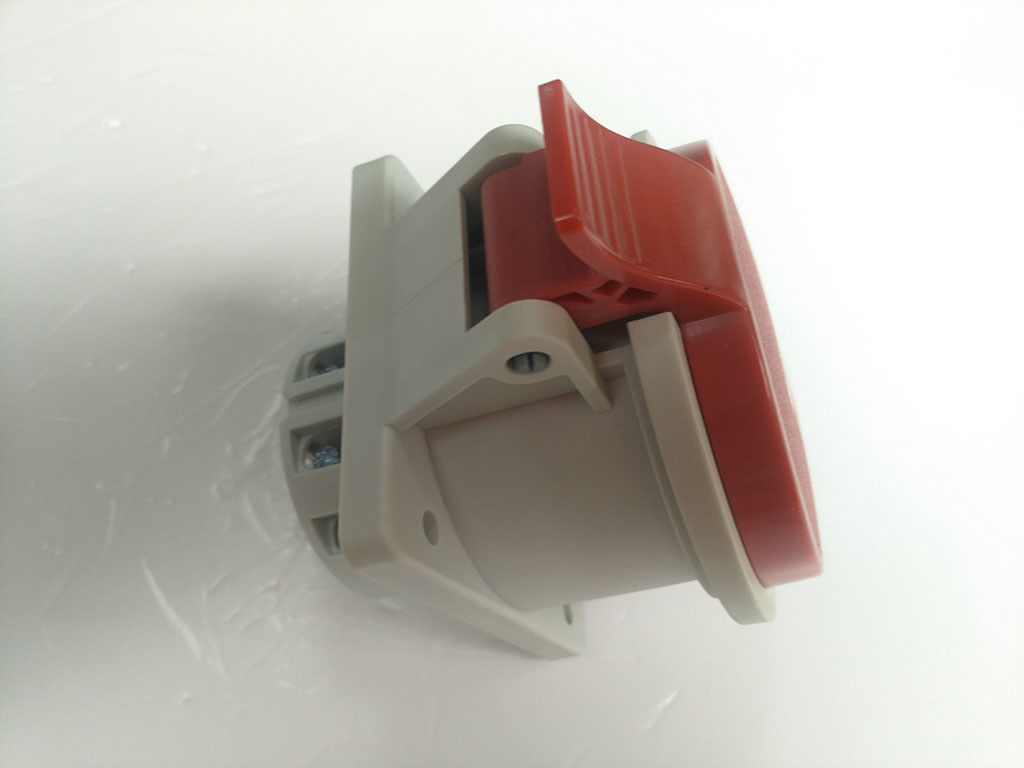

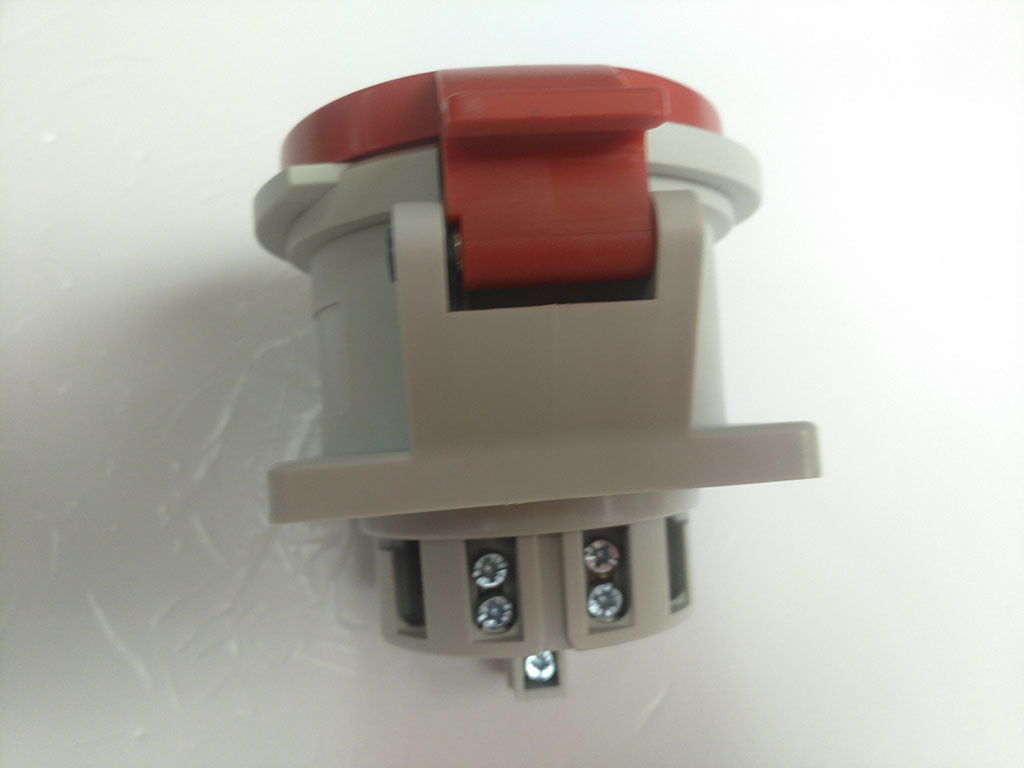

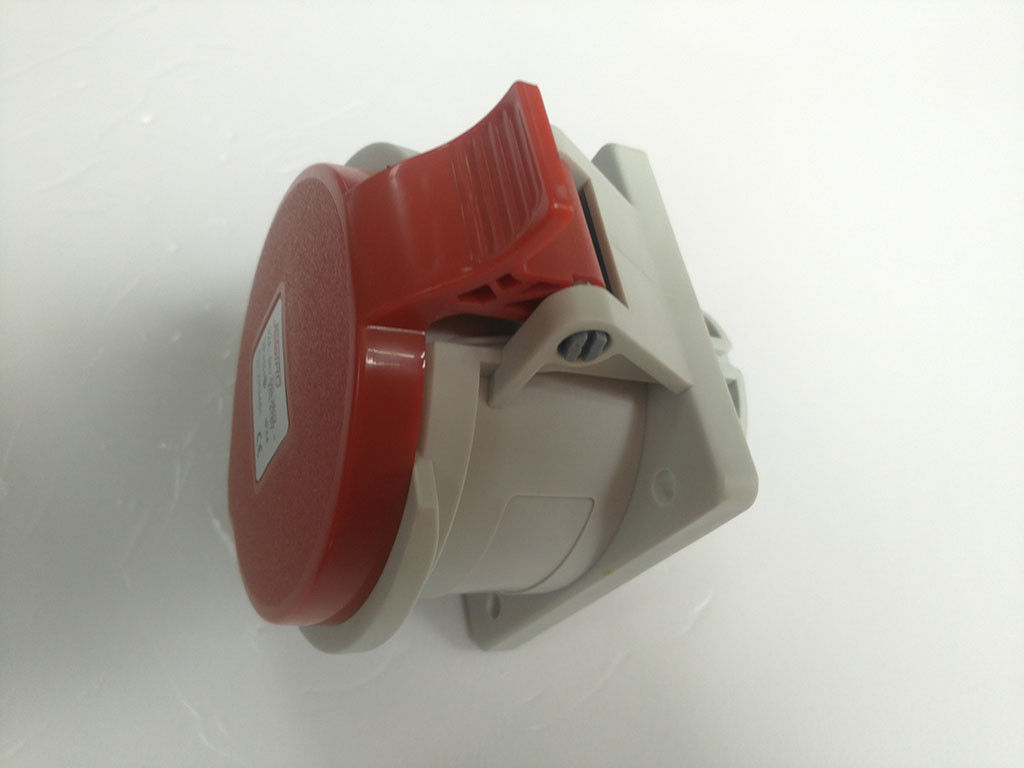

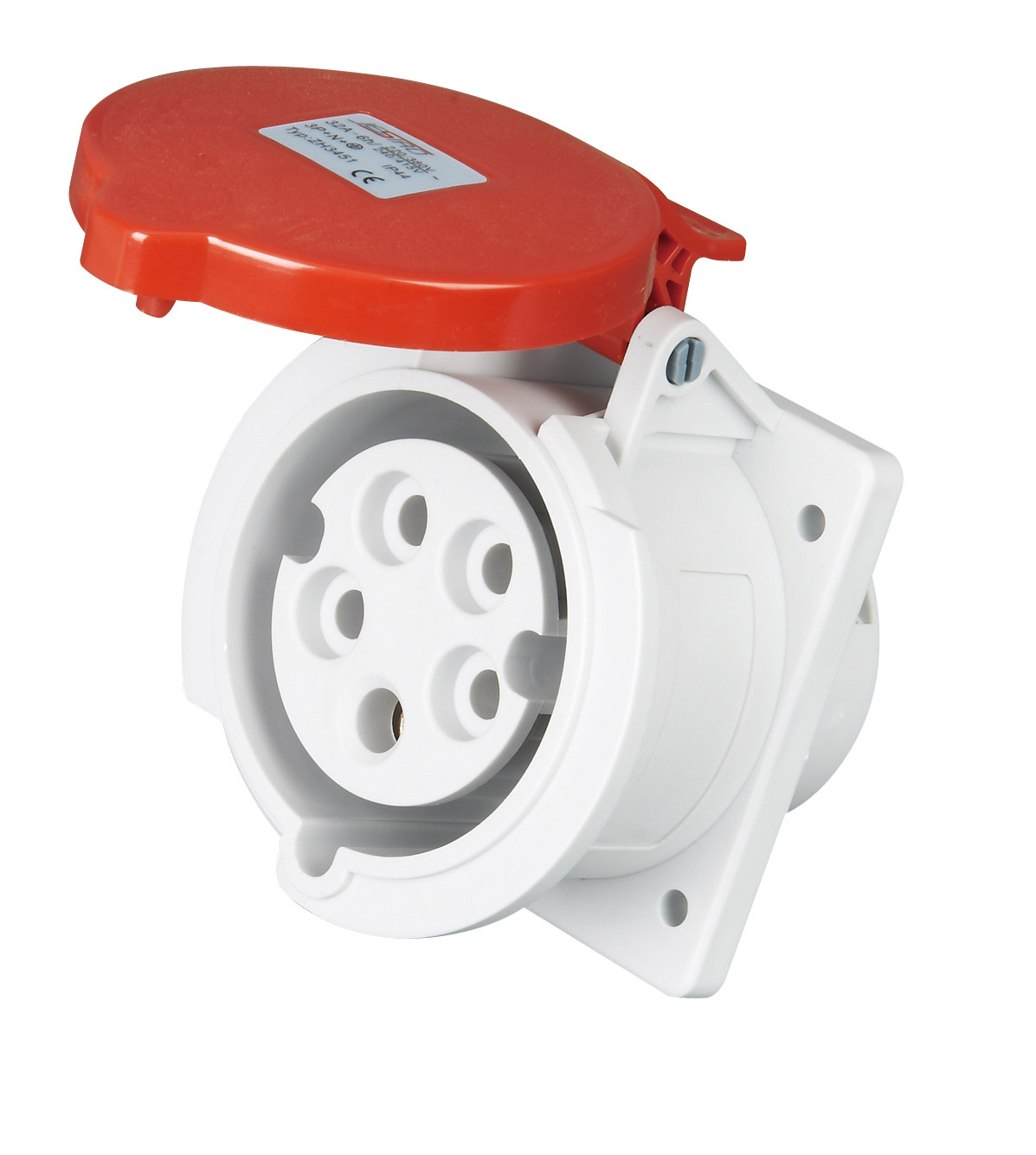

High Performance Industrial Plug Sockets Hinged Cover Liftable DIN Rails 1
