Name: | Straight Industrial Socket | Poles & Ampere: | 5P 32A |
---|---|---|---|
Rated Voltage: | 400V | Protection Grade: | IP67 Weatherprotected |
Type: | Wall Mounted | Product Weight: | 310 G/pc |
Highlight: | waterproof electrical plugs and sockets,iec 60309 plugs and sockets |
5P 32Amps IP67 Watertight Panel Mounted Red Cover 3rd Generation Receptacle Industrial Socket Straight part no. 240
Industrial Plugs Sockets Standards
Our ndustrial plugs and socket-outlets are in comppliance with the following international standards: IEC60309-1 & IEC60309-2, CEIEN60309-1&CEIEN60309-2. They are also in compliance with the standards: VDE0623, BS4343.
Part no. 240
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
32A | 3 | 229 | 230 | 231 | 10 | 268 | ||||
4 | 232 | 233 | 234 | 2123 | 235 | 236 | 237 | 10 | 290 | |
5 | 238 | 239 | 240 | 10 | 319 |
Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | |
32A | 3 | 85 | 75 | 70 | 60 | 60 | 5.5 | 8 | 2 | 99 | 103 | 34 | 62 | |
4 | 85 | 75 | 70 | 60 | 60 | 5.5 | 8 | 2 | 99 | 103 | 34 | 62 | ||
5 | 85 | 75 | 72 | 60 | 60 | 5.5 | 8 | 2 | 105 | 110 | 34 | 65 | ||
Conductor cross-sectional area(mm²)Min To Max 4-6 |
Product Dimension:

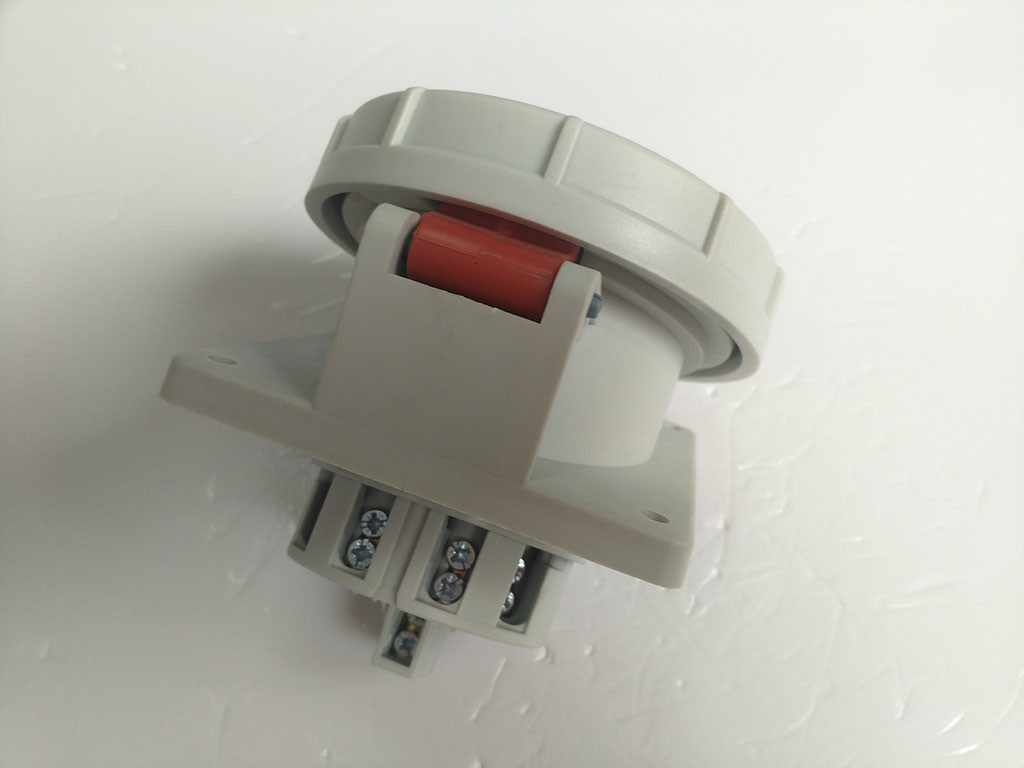

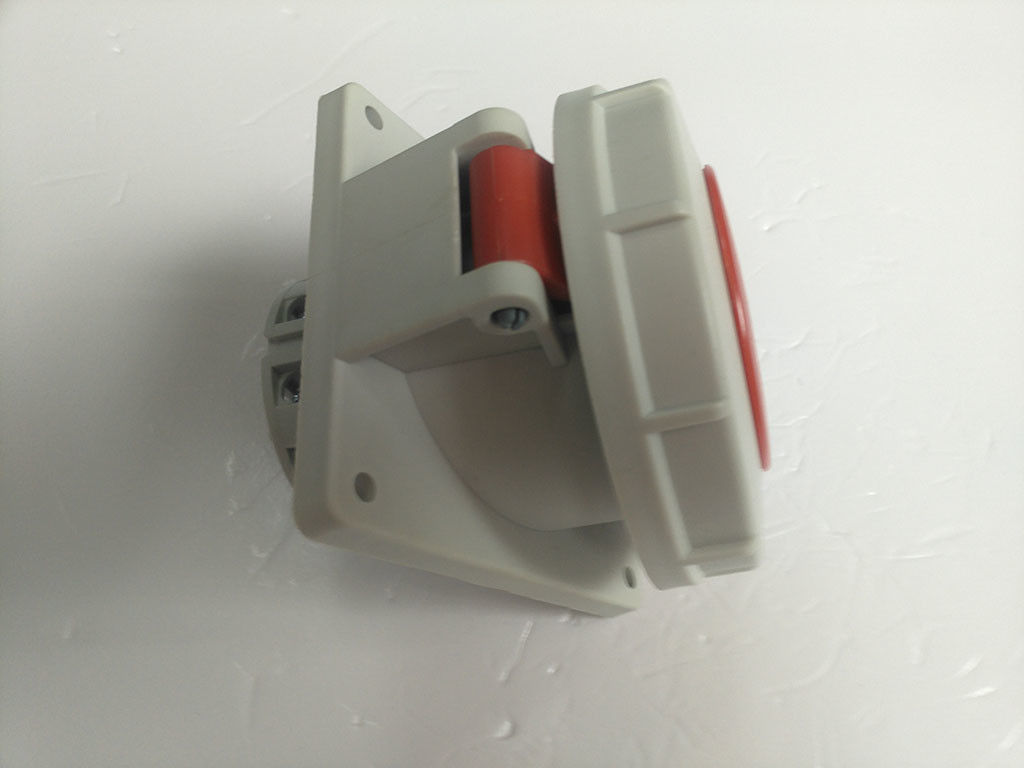

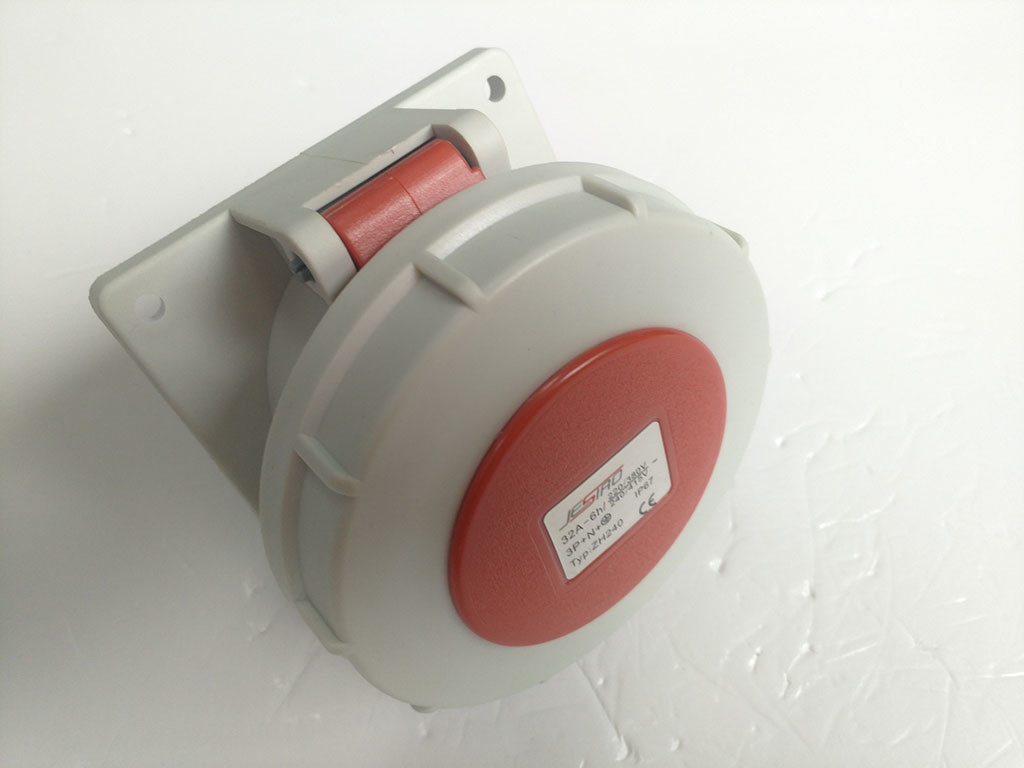

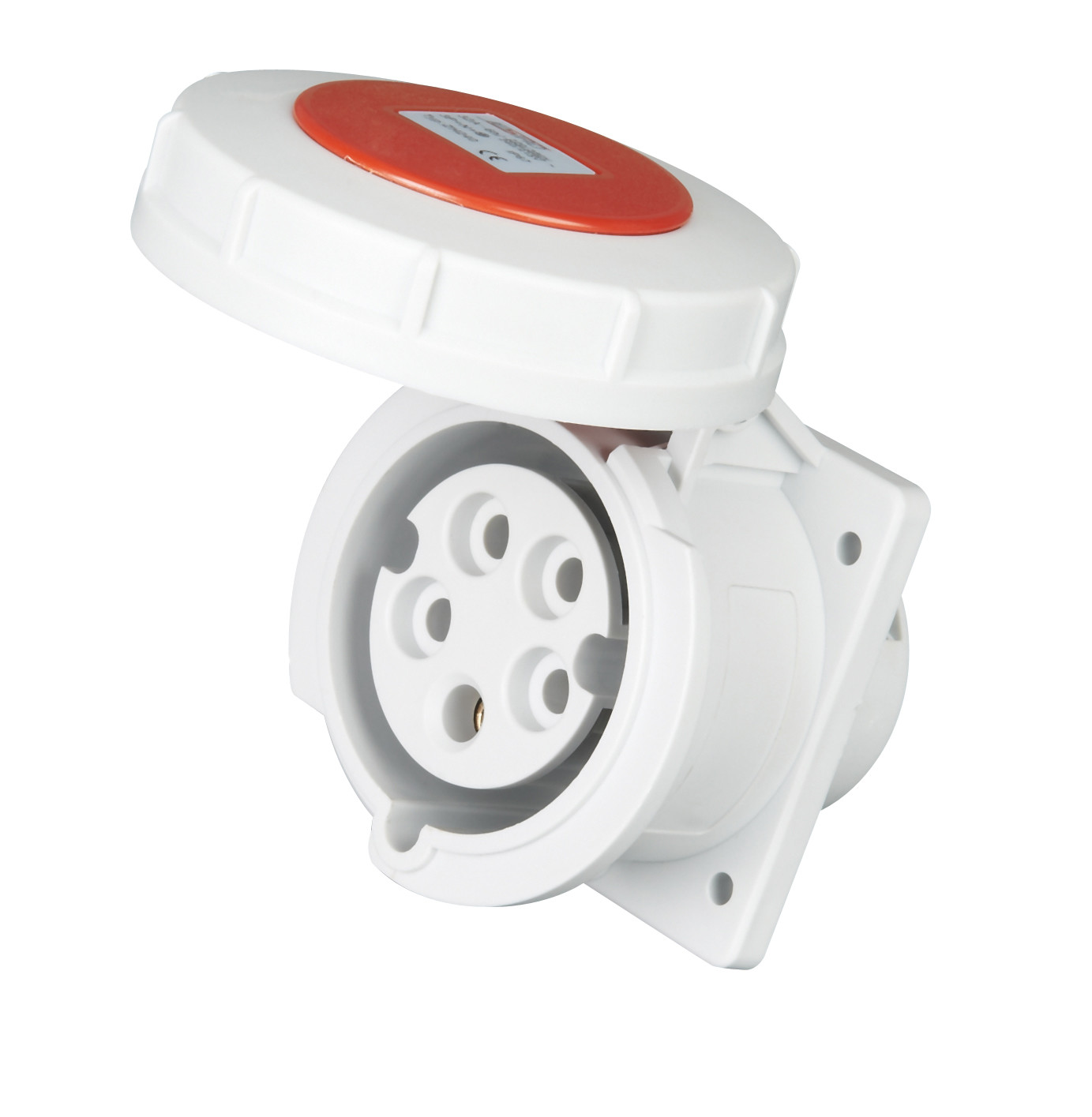

Picture:
