Name: | Inlet | Poles: | 5 Phase |
---|---|---|---|
Current & Voltage: | 63AMP & 400VOLT | Protection Grade: | IP44 Rainproof |
Type: | Inclination | Material: | PA |
Highlight: | plug and socket connectors,waterproof electrical plugs and sockets |
5P 63Amps IP44 Water Resistance Panel Mounted Red Receptacle Industrial Socket Sloping part no. 1155
Description:
These products are used for connection of equipment in all kind of applications where it needs to be possible to connect and disconnect. HYPER industrial plugs and sockets are chosen when safety, reliability and durability is requested.
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
63A | 3 | 1146 | 1147 | 1148 | 5 | 520 | |||
4 | 1149 | 1150 | 1151 | 1152 | 5 | 567 | |||
5 | 1153 | 1154 | 1155 | 5 | 625 |
Current | Poles | a | b | c | d | e | f | g. | g.1 | h | k | l | l1 | α | |
63A | 3 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 112 | 69 | 91 | 102 | 20° | |
4 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 112 | 69 | 91 | 102 | 20° | ||
5 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 112 | 69 | 91 | 102 | 20° | ||
Conductor cross-sectional area(mm²)Min To Max 10-16 |
Product Dimension:

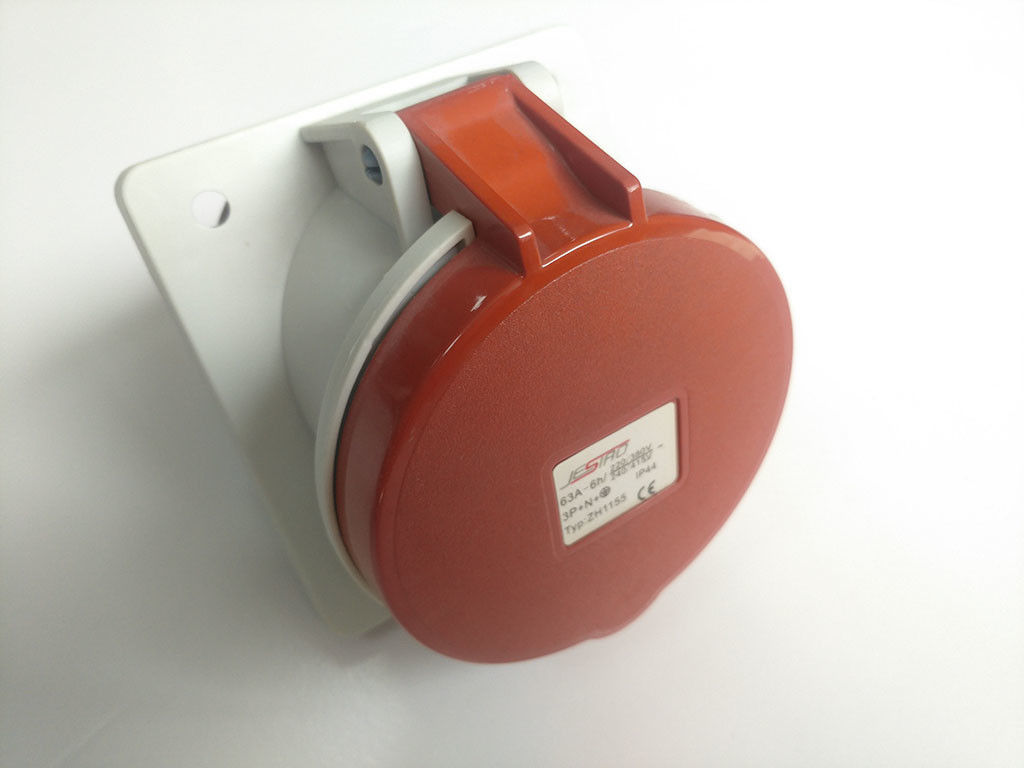

Picture:
