Plastic PA Industrial 3 Phase Plug And Socket Screwless Type UV Resistant

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1252
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Name: Industrial Socket Poles: 5pins
Voltage & Current: 400 Volt & 63 Amp Protection Degree: IP44 Rain Protected
Type: Straight Material: Plastic PA
High Light:

plug and socket connectors

,

waterproof electrical plugs and sockets


Product Description

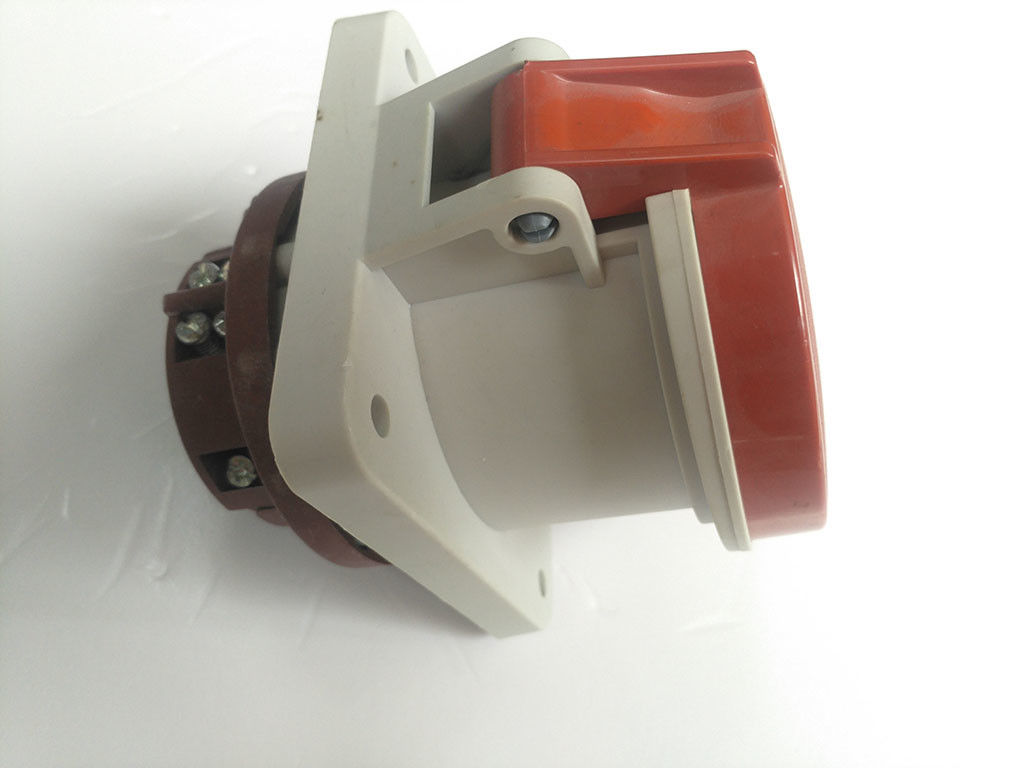

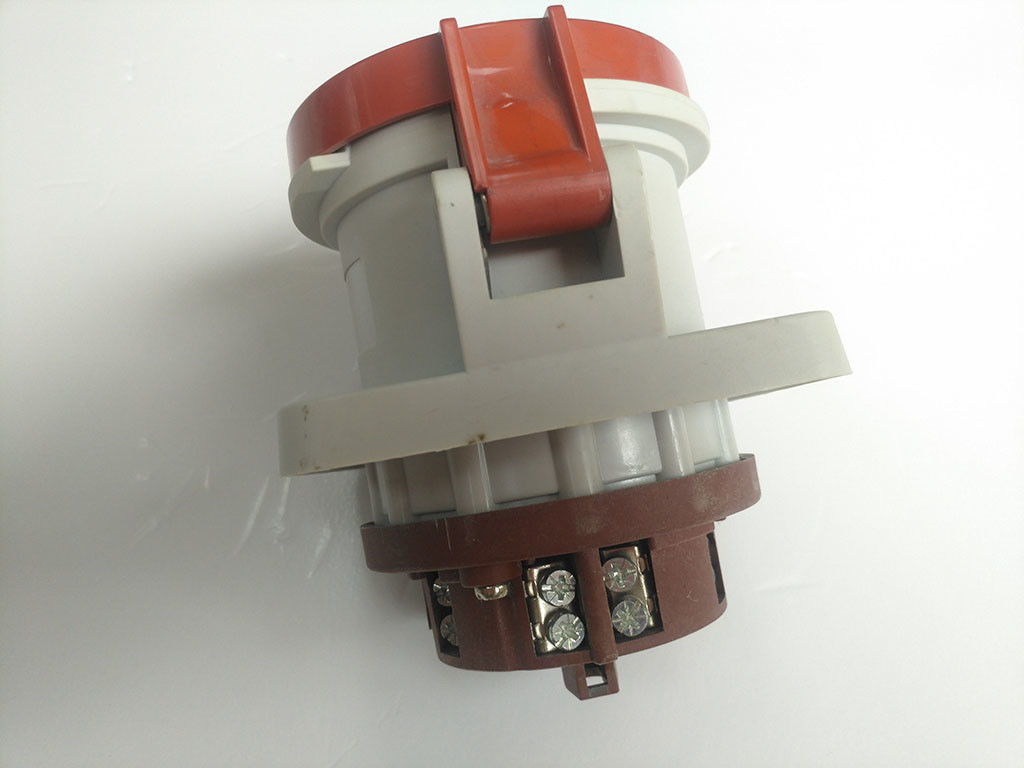

5P 63Amps IP44 Water Proof Panel Mounted Red Cover Receptacle Straight Screwless Industrial Sockets part no. 1252



Technical characteristics:



  • Rated voltage: 500V
  • Rated current: 16-125А
  • Surge voltage wear resistance: 8kV
  • Mechanical wear resistance: 3000cycles
  • IP code: IP44
  • Resistant to UV rays plastic
  • Ambient temperature: -5°С - +55°С
  • Altitude: up to 2000m
  • Plugs and sockets 6h
  • Number of poles: 3 / 4 / 5
  • Mounting: flush / surface / movable / fixed
  • Part no. 1252



Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
63A 3 1260 1261 1262       5 523
4 1246 1247 1248 1249     5 562
5 1250 1251 1252       5 629

Current Poles a b c d e f g. g.1 h h1 k i
63A 3 107 100 80 85 77 6 12 2 103 - 55 88
4 107 100 80 85 77 6 12 2 113 - 55 88
5 107 100 80 85 77 6 12 2 113 - 55 88
Conductor cross-sectional area(mm²) Min To Max 10-16




Product Dimension:

Plastic PA Industrial 3 Phase Plug And Socket Screwless Type UV Resistant 0

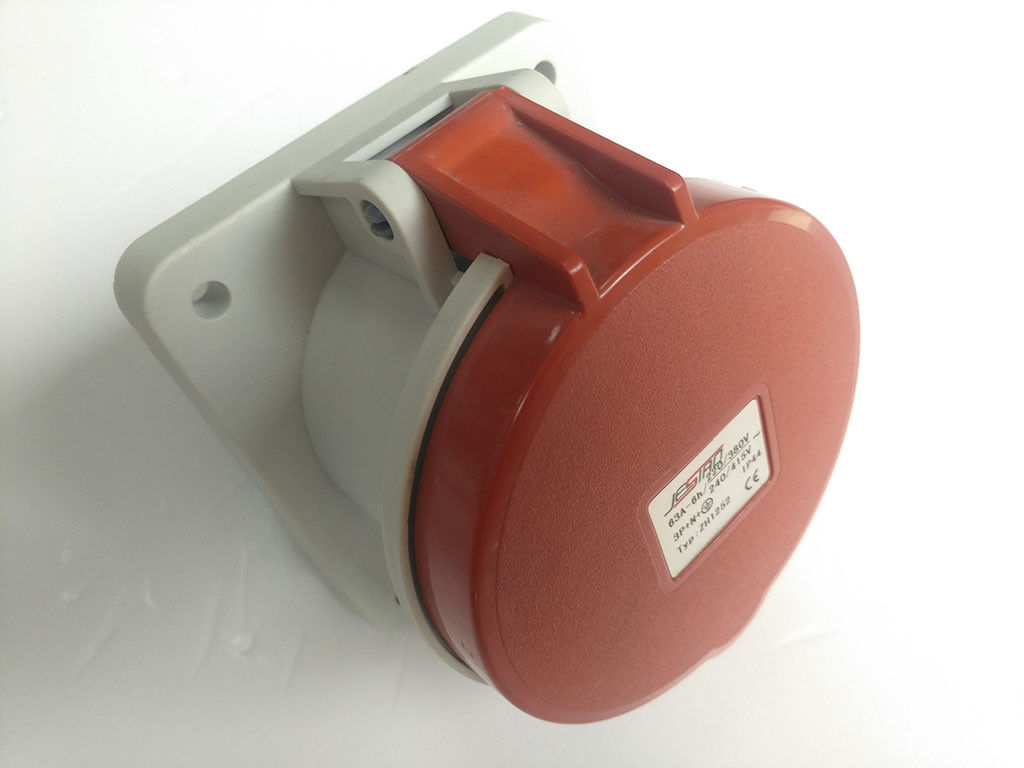

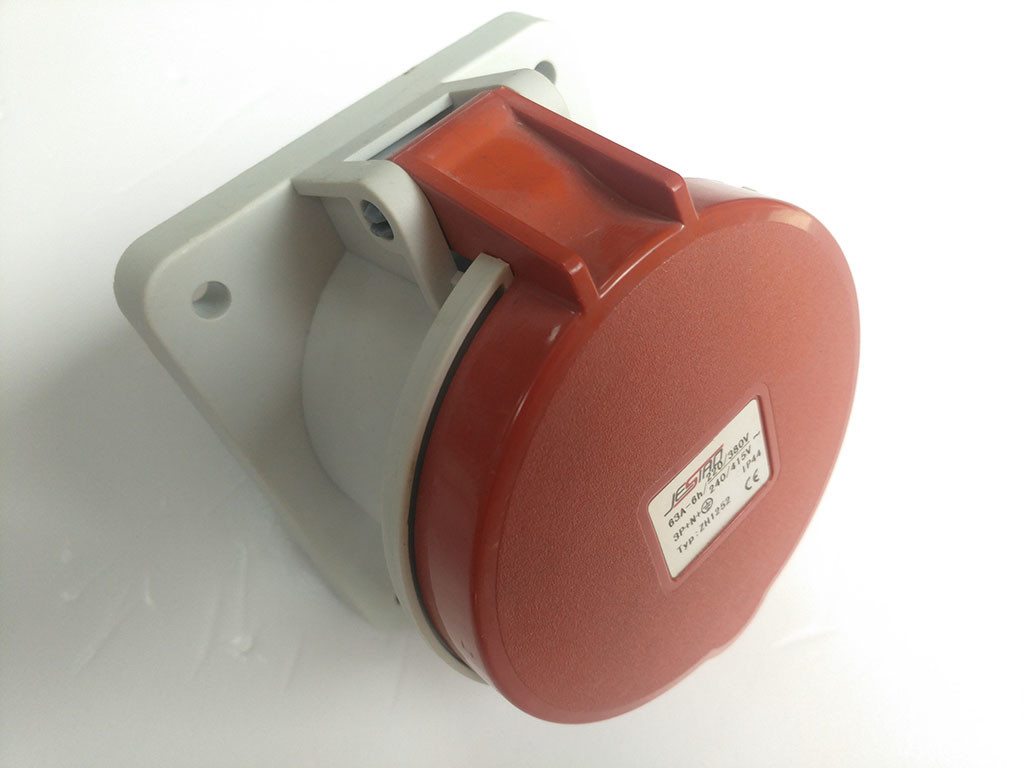

Picture:



Plastic PA Industrial 3 Phase Plug And Socket Screwless Type UV Resistant 1
